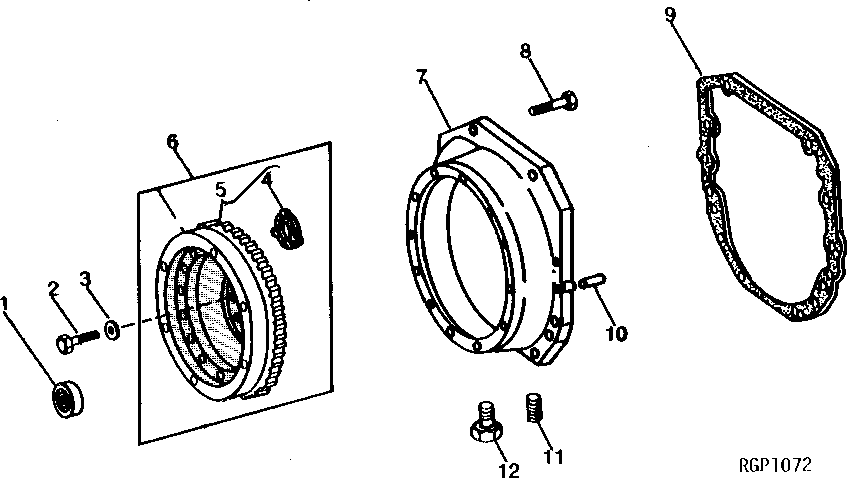

FLYWHEEL AND HOUSING (SAE 3) [02H06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD9211	1	BALL BEARING	-
2	R54099	6	CAP SCREW	-
3	R76126	6	Washer	14.681 X 25.400 X 2.667 MM (37/64" X 1" X 0.105") (SUB FOR R42364)
4	R57480	1	Gasket	-
5	R35047	1	GEAR	(SUB AR103044)
5	AR103044	1	Kit	(MARKED R76000)
6	AR103321	1	KIT	(MARKED R63519) (SUB FOR AR78436)
7	R63518	1	HOUSING	(SUB R121693, (9) R57696, (2) H79910 AND (9) 19H3217)
7	R68720	1	HOUSING	(SUB R121693 AND (2) H79910)
7	R121693	1	HOUSING	-
8	19H1707	6	CAP SCREW	3/4" X 2-3/4"
8	19H1425	6	CAP SCREW	3/4" X 2-3/4", (FLYWHEEL HOUSING TO CYLINDER BLOCK)
8	R78019	6	Washer	(OIL PAN TO FLYWHEEL HOUSING SCREW)
8	19H2431	6	CAP SCREW	3/4" X 2-1/4", (OIL PAN TO FLYWHEEL HOUSING) (SUB FOR 19H1782)
8	19H3217	9	Cap Screw	3/8" X 1-3/4", (USE WITH R68720)
8	R57696	9	Washer	9.931 X 23.114 X 3.048 MM (25/64" X 0.910" X 0.120") (USE WITH R68720)
9	R100336	1	GASKET	(SUB FOR R57718 OR R77363)
10	T26565	2	Dowel Pin	(SUB FOR C1220R) (USE WITH R63518 OR R68720)
10	H79910	2	Dowel Pin	(USE WITH R121693)
11	RE57836	1	Pipe Plug	1/2", (SUB FOR 15H624)
12	AT63089	1	Drain Plug	-

FLYWHEEL AND HOUSING (SAE 3) [02H06]
