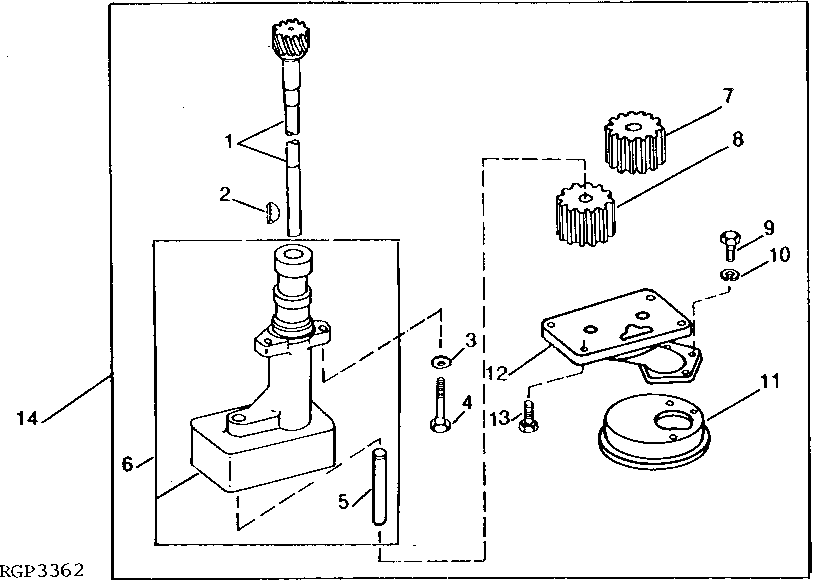

ENGINE OIL PUMP (CAMSHAFT DRIVEN) (ENGINE SERIAL NO. -039978) [02C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64569	1	GEAR	-
2	26H74	1	Shaft Key	3/16" X 5/8"
3	M72490	2	Washer	(SUB FOR R42729)
4	R38614	2	CAP SCREW	(USE WITH R57497 OR R56606)
4	R41920	2	Cap Screw	(USE WITH R49172) (SUB FOR AR63865)
5	R49173	1	DOWEL PIN	-
6	AR69041	1	HOUSING	(MARKED R57497) (SUB FOR AR68312) (ALSO ORDER (2) R38614, (2) M72490 AND (2) R41920)
7	R43434	1	GEAR	(SUB FOR AR70085)
8	AR69042	1	GEAR	(SUB FOR AR70085)
9	19H2127	3	Cap Screw	5/16" X 7/8"
10	12H303	3	Lock Washer	5/16"
11	AR77711	1	OIL PUMP INTAKE	-
12	SE500879	1	OIL PUMP REMAN	(REMANUFACTURED) (SUB FOR R63025)
13	R46567	4	Screw	-
14	SE500879	1	OIL PUMP REMAN	(REMANUFACTURED) (SUB FOR AR80090) (ALSO ORDER M72490 AND R38614) (NOT INCLUDED)

ENGINE OIL PUMP (CAMSHAFT DRIVEN) (ENGINE SERIAL NO. -039978) [02C24]
