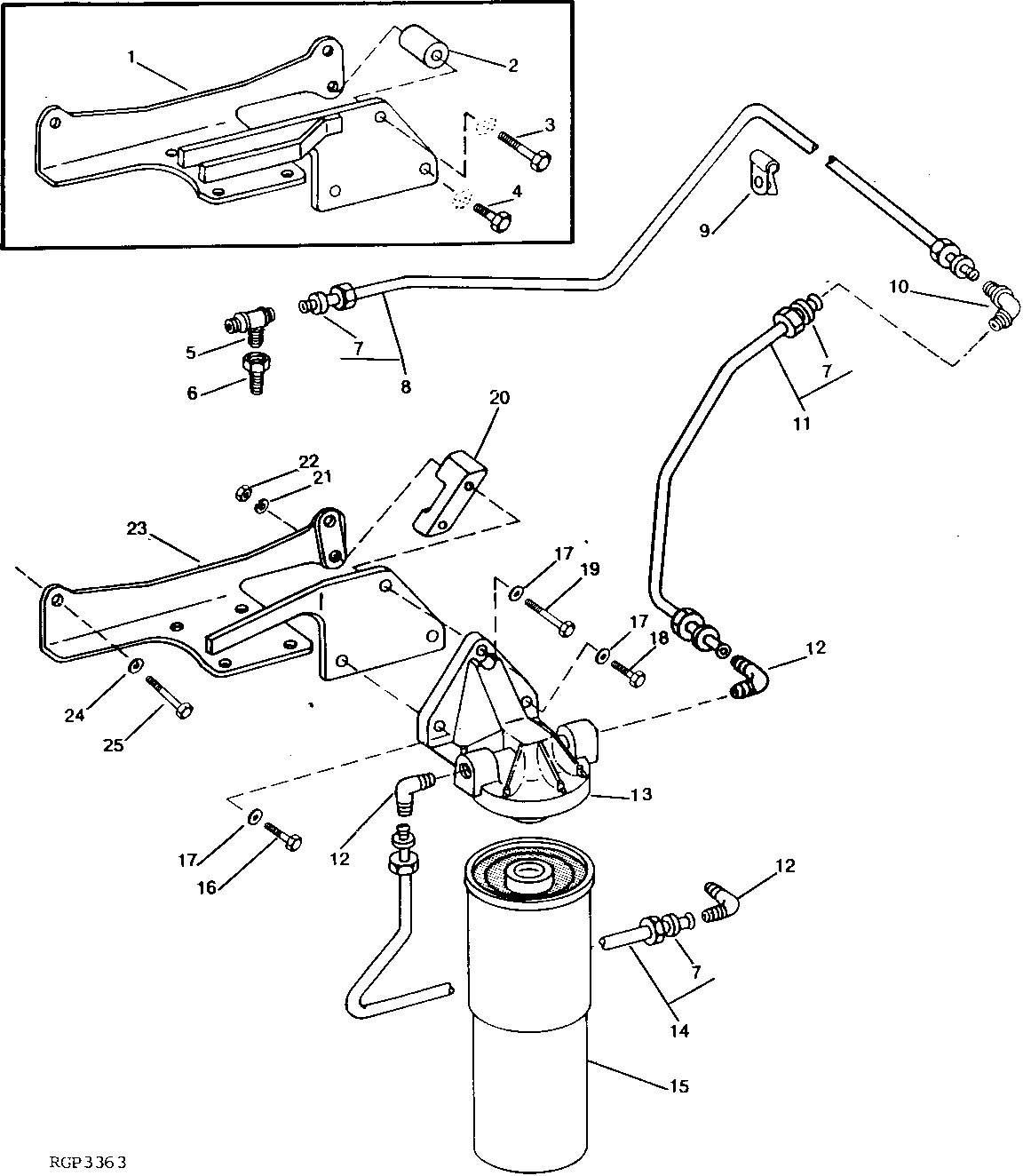

ENGINE OIL BYPASS FILTER AND LINES (ENGINE SERIAL NO. 045105- ) [02D17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR100499	1	Bracket	(NLA) (SUB RE10119, R76996, 12H304, E55662, 19H1731, 19H1765, (2) 19H2055, 19H2639 AND (3) 24H1303)
2	R75733	1	Spacer	-
3	19H2023	1	CAP SCREW	3/8" X 3-1/4"
4	19H1731	2	Cap Screw	3/8" X 1"
5	R74742	1	Tee Fitting	-
6	15H607	1	Pipe Bushing	-
7	R67092	6	Sealing Washer	-
8	AR100483	1	OIL LINE	(SUB RE10121 AND RE10120)
8	RE10121	1	OIL LINE	-
9	T30367	2	Clamp	(SUB FOR T29299, APPL)
10	R75183	1	Elbow Fitting	-
11	AR100484	1	OIL LINE	(SUB RE10120 AND RE10121)
11	RE10120	1	OIL LINE	-
12	R67803	3	FITTING	-
13	AR100495	1	Body Filler	-
14	AR101751	1	OIL LINE	-
15	RE21748	1	OIL FILTER	(SUB FOR AR98330)
16	19H3217	1	Cap Screw	3/8" X 1-3/4"
17	24H1303	3	WASHER	13/32" X 11/16" X 0.065", (USE WITH 19H1731)
18	19H1936	1	Cap Screw	3/8" X 3/4"
19	19H2639	1	Cap Screw	3/8" X 3-3/8"
20	R76996	1	SUPPORT	-
21	12H304	1	Lock Washer	3/8", (NO LONGER REQUIRED)
22	E55662	1	Flange Nut	-
23	RE10119	1	Bracket	(SUB FOR RE10116)
24	12H293	2	Lock Washer	7/16"
25	19H2678	2	Cap Screw	7/16" X 2-1/8"

ENGINE OIL BYPASS FILTER AND LINES (ENGINE SERIAL NO. 045105- ) [02D17]
