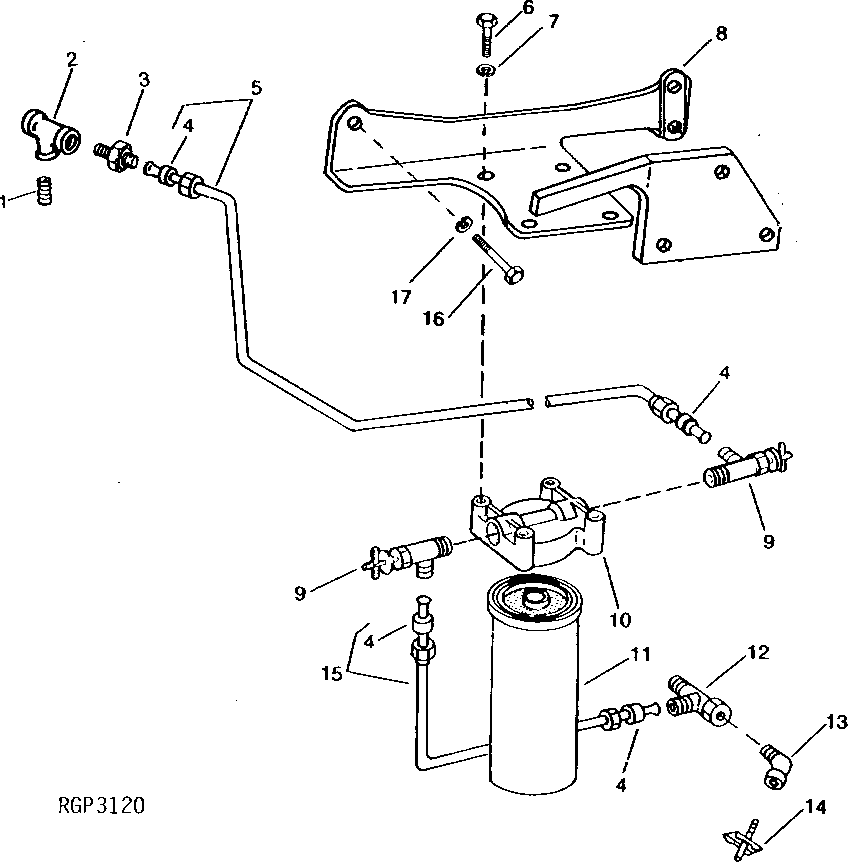

ENGINE COOLANT CONDITIONER FILTER (ENGINE SERIAL NO. 032182- ) [02I03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	29H486	1	Threaded Nipple	-
2	15H676	1	Tee Fitting	1/2"
2	15H584	1	Pipe Plug	1/2", (JD855, JD850, 850LGP)
3	R51133	1	Fitting	-
4	R67092	4	Sealing Washer	-
5	RE10125	1	Line	(992D-LC)
5	RE10122	1	LINE	(JD855, JD850, 850LGP)
6	19H1731	4	Cap Screw	3/8" X 1"
7	12H304	4	Lock Washer	3/8", (NO LONGER REQUIRED WITH 19H1731)
8	RE10119	1	Bracket	-
9	AR87364	2	Valve	-
10	AR87111	1	Base	-
11	AR94651	1	Coolant Filter	(COOLANT FILTER WITH COOLANT CONDITIONER) (JD855, JD850, 850LGP) (SUB RE11992)
11	AR94652	1	COOLANT FILTER	(COOLANT FILTER WITH COOLANT CONDITIONER) (992D-LC) (SUB RE11992)
11	RE11992	1	Coolant Filter	(COOLANT FILTER WITHOUT COOLANT CONDITIONER)
12	R76710	1	Tee Fitting	-
13	15H220	1	ELBOW FITTING	-
14	AT13740	1	Drain Valve	-
15	RE10123	1	Line	-
16	19H2678	2	Cap Screw	7/16" X 2-1/8"
17	12H293	2	Lock Washer	7/16"

ENGINE COOLANT CONDITIONER FILTER (ENGINE SERIAL NO. 032182- ) [02I03]
