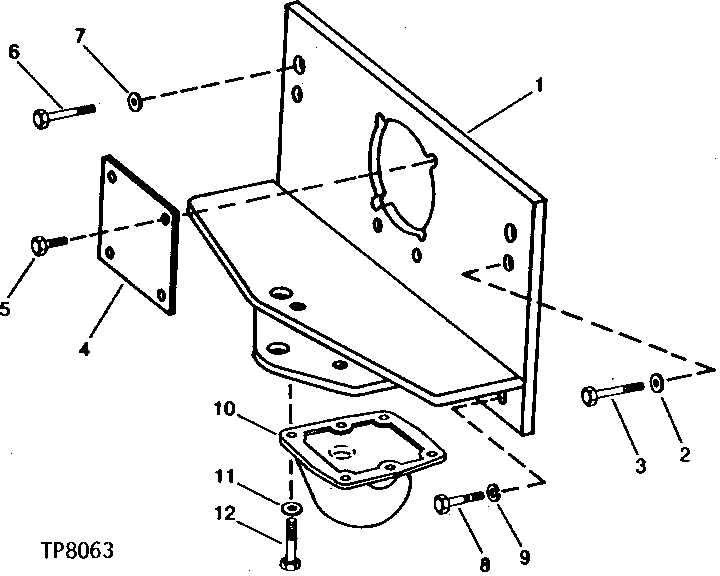

DRAWBAR (USE WITH WEIGHTS) (STEEL MILL LOADER) [02L03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT73677	1	SUPPORT	-
2	12H234	2	LOCK WASHER	1"
3	19H3417	2	Cap Screw	HS, SAE 8, 1" X 3"
4	T49026	1	COVER	PTO ACCESS (WITHOUT COUNTERWEIGHT)
5	19H2706	4	Cap Screw	5/8" X 2", (WITHOUT COUNTERWEIGHT)
6	19H3436	2	CAP SCREW	1-1/4" X 2-1/2"
7	12H235	2	Lock Washer	1-1/4"
8	19H3417	4	Cap Screw	HS, SAE 8, 1" X 3" (WITHOUT FINAL DRIVE GUARD)
8	19H3099	4	CAP SCREW	HS, SAE 8, 1" X 3-3/4" (WITH FINAL DRIVE GUARD)
9	12H234	4	LOCK WASHER	1" (WITHOUT FINAL DRIVE GUARD)
9	T48736	4	WASHER	(WITH FINAL DRIVE GUARD)
10	T46481	1	HOOK	-
11	12H236	6	Lock Washer	3/4"
12	19H1405	6	Cap Screw	3/4" X 2-1/2"

DRAWBAR (USE WITH WEIGHTS) (STEEL MILL LOADER) [02L03]
