Открытый узел

COUNTERWEIGHTS [03D08]

COUNTERWEIGHTS [03D08]

COUNTERWEIGHTS [03D08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

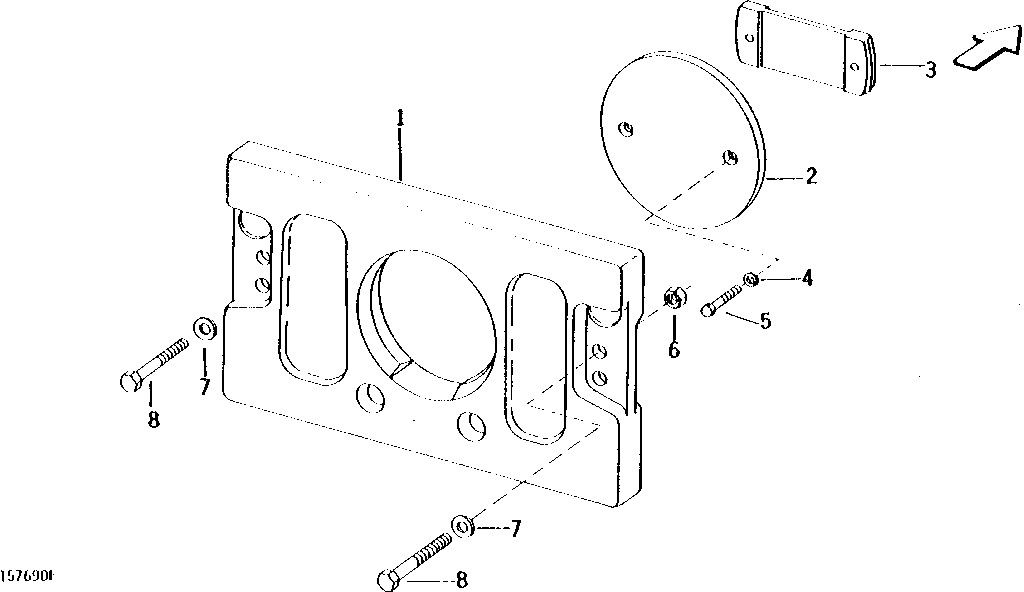

COUNTERWEIGHTS [03D08]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T51447	2	COUNTERWEIGHT	(WHEN EQUIPPED WITH 2.6 M3 (3-1/4 CU. YD.) BUCKET AND CAB) (ALSO ORDER AT58207 DRAWBAR)
1	T51447	3	COUNTERWEIGHT	(WHEN EQUIPPED WITH 2.6 M3 (3-1/4 CU. YD.) BUCKET WITHOUT CAB) (ALSO ORDER AT58207 DRAWBAR)
1	T51447	4	COUNTERWEIGHT	(WHEN EQUPPED WITH 1.9 M3 (2-1/2 CU. YD.) (STEEL MILL LOADER BUCKET) (ALSO ORDER AT73677 DRAWBAR)
1	T51447	1	COUNTERWEIGHT	(WHEN EQUIPPED WITH 2.2 M3 (2-3/4 CU. YD.) BUCKET OR WITH 1.9 M3 (2-1/2 CU. YD.) MULTI-BUCKET) (ALSO ORDER AT58207 DRAWBAR)
2	T125646	1	COVER	(SUB FOR T48844) (ALSO ORDER AT132871, (2) 19H2965 AND (2) 24H1111)
3	AT132871	1	STRAP	(SUB FOR T48843) (ALSO ORDER T125646, (2) 19H2965 AND (2) 24H1111) RETAINING
4	12H236	2	Lock Washer	3/4", (OLDER DESIGN)
4	24H1111	2	Washer	17/32" X 1-1/16" X 0.090", (NEW DESIGN)
5	19H1425	2	CAP SCREW	3/4" X 2-3/4", (OLDER DESIGN)
5	19H2965	2	CAP SCREW	1/2" X 3-1/2", (NEW DESIGN)
6	14H1048	2	Nut	1", (WHEN EQUIPPED WITH TWO COUNTERWEIGHTS)
6	14H1048	6	Nut	1", (WHEN EQUIPPED WITH FOUR COUNTERWEIGHTS)
6	14H1048	4	Nut	1", (WHEN EQUIPPED WITH THREE COUNTERWEIGHTS)
7	U41560	2	Washer	(WHEN EQUIPPED WITH ONE COUNTERWEIGHT)
7	U41560	4	Washer	(WHEN EQUIPPED WITH TWO COUNTERWEIGHTS)
7	U41560	6	Washer	(WHEN EQUIPPED WITH THREE COUNTERWEIGHTS)
7	U41560	8	Washer	(WHEN EQUIPPED WITH FOUR COUNTERWEIGHTS)
8	19H2099	2	Cap Screw	1" X 5", (WHEN EQUIPPED WITH ONE COUNTERWEIGHT)
8	19H2099	4	Cap Screw	1" X 5", (WHEN EQUIPPED WITH TWO COUNTERWEIGHTS)
8	19H2099	6	Cap Screw	1" X 5", (WHEN EQUIPPED WITH THREE COUNTERWEIGHTS)
8	19H2099	8	Cap Screw	1" X 5" (WHEN EQUIPPED WITH FOUR COUNTERWEIGHTS)
