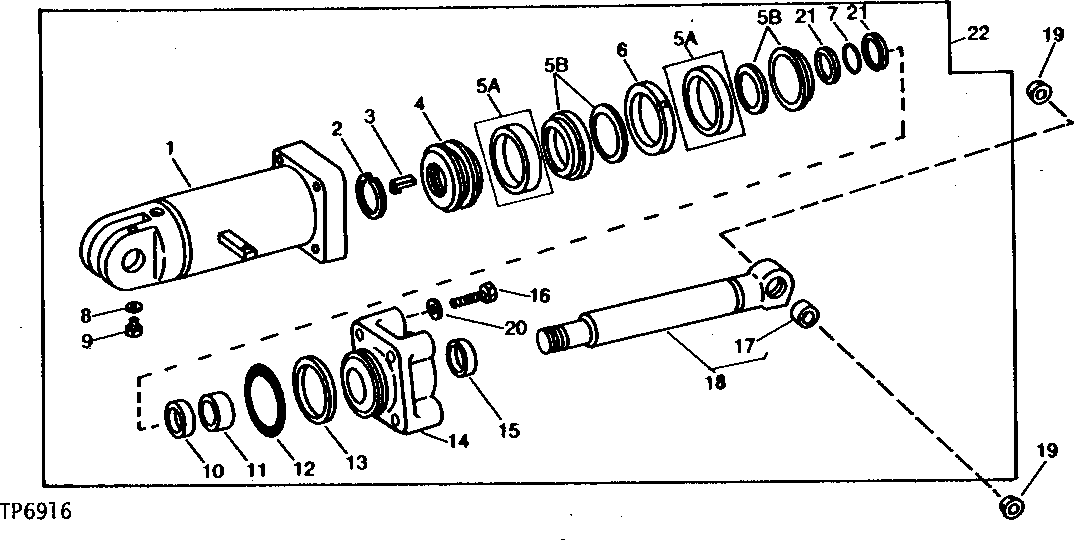

BUCKET CYLINDERS (SERIAL NO. -379895) [03I18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT79563	1	HYDRAULIC CYLINDER BARREL	L.H. OR R.H. (SUB FOR AT52396) (USE WITH AT52395 AND AT79504) (SUB RE20349, T77715, JD7759, K40014 AND 19H3535)
1	AT52389	1	HYDRAULIC CYLINDER BARREL	L.H. (USE WITH AT52388) (ILLUSTRATED) (SUB RE20349 T77715 JD7759 K40014 AND 19H3535)
2	R76033	1	SNAP RING	(SUB FOR R31524, THIS APPLICATION) (SUB FOR R68503)
3	T46628	1	SHAFT KEY	-
4	T54423	1	PISTON	(SUB R78604, R76030, RE14910 AND (2) R78806)
6	U45180	1	WEAR RING	(K)
7	L2301CU	1	O-Ring	(K)
8	R26286	1	O-Ring	-
9	R27094	1	Drain Plug	-
10	T48355	1	SEAL	(K)
11	U43356	1	PISTON RING	(K)
12	T38485	1	O-Ring	(K)
13	R78818	1	Back-Up Ring	(K) (SUB FOR T38484, THIS APPLICATION)
14	AT52394	1	GUIDE	ROD WITH COVER, (SUB R80286, RE20329, R81815 AND (8) 19H1849)
15	T46639	1	Seal	-
16	19H3313	4	Cap Screw	HS, SAE 8, 1" X 4-1/2"
17	T54421	1	BUSHING	(SUB R81869)
18	AT52392	1	END	(SUB RE20348)
19	T53740	2	Seal	-
20	T30636	4	Washer	-
21	L2309CU	2	BACK-UP RING	(K)
22	AT52395	1	HYDRAULIC CYLINDER	L.H. (SUB FOR AT52388) (SUB RE20347, T77715, JD7759, K40014 AND 19H3535)
22	AT52395	1	HYDRAULIC CYLINDER	R.H. (SUB RE20347, T77715, JD7759, K40014 AND 19H3535)
5A	T54425	2	SEAL	(SUB RE11175)
5B	RE11175	2	SEAL	-
5B	AR91555	2	SEAL	(K) (SUB RE11175)

BUCKET CYLINDERS (SERIAL NO. -379895) [03I18]
