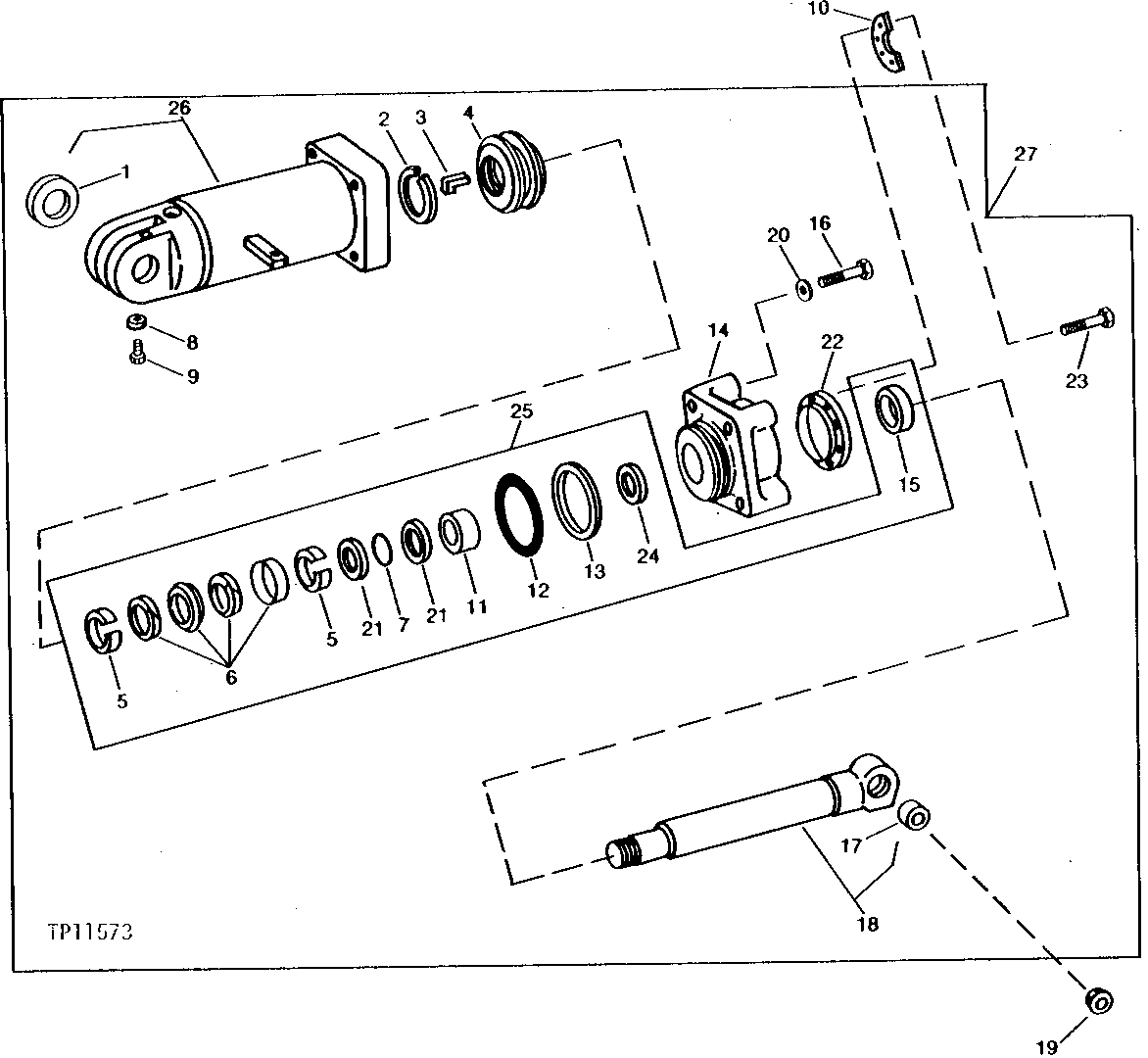

BUCKET CYLINDER (STEEL MILL LOADER) (SERIAL NO. -701676) [03J01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(B) (SUB AT79563)
2	R76033	1	SNAP RING	-
3	R74655	1	KEY	-
4	R78604	1	PISTON	-
5	U45180	2	WEAR RING	-
6	RE11920	1	SEAL	-
7	R76030	1	O-Ring	-
8	R26286	1	O-Ring	-
9	R27094	1	Drain Plug	-
10	T75843	2	GUARD	-
11	R76915	1	SEAL	(WITH WATER GLYCOL)
11	R78605	1	SEAL	(WITH HYDRAULIC OIL)
12	T38485	1	O-Ring	-
13	R78818	1	Back-Up Ring	(A) (SUB FOR T38484, THIS APPLICATION)
13	R78818	1	Back-Up Ring	(SUB FOR T38484, THIS APPLICATION)
14	AR105652	1	DRAWER SLIDE	(SUB R81815 AND R80286)
15	R76919	1	SEAL	-
16	19H3313	4	Cap Screw	HS, SAE 8, 1" X 4-1/2"
17	T54421	1	BUSHING	(SUB R81869)
18	AT52392	1	END	(SUB RE20348)
19	T53740	2	Seal	-
20	T30636	4	Washer	-
21	R76031	2	BACK-UP RING	(A) (SUB R78806)
21	R78806	2	BACK-UP RING	-
22	R80286	1	RETAINER	(SUB FOR R76908)
23	19H1849	8	Cap Screw	5/16" X 1-1/4"
24	T46640	1	WEAR RING	-
25	RE13493	1	KIT	(A) (WITH WATER GLYCOL) (SUB RE14910 AND RE20332)
25	RE13494	1	KIT	(A) (WITH HYDRAULIC OIL) (SUB RE14910 AND RE20329)
26	AT79563	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AR105648 AND AT52396) (SUB RE20349)
27	AR105646	1	HYDRAULIC CYLINDER	(A) (WITH WATER GLYCOL) (SUB RE20350, T77715, JD7759, K40014, 19H3535)
27	AT79503	1	CYLINDER	(B) (WITH WATER GLYCOL) (SUB RE20350)
27	RE13499	1	HYDRAULIC CYLINDER	(A) (WITH HYDRAULIC OIL) (SUB RE20347, T77715, JD7759, K40014, 19H3535)
27	AT79504	1	CYLINDER	(B) (WITH HYDRAULIC OIL) (SUB RE20347)

BUCKET CYLINDER (STEEL MILL LOADER) (SERIAL NO. -701676) [03J01]
