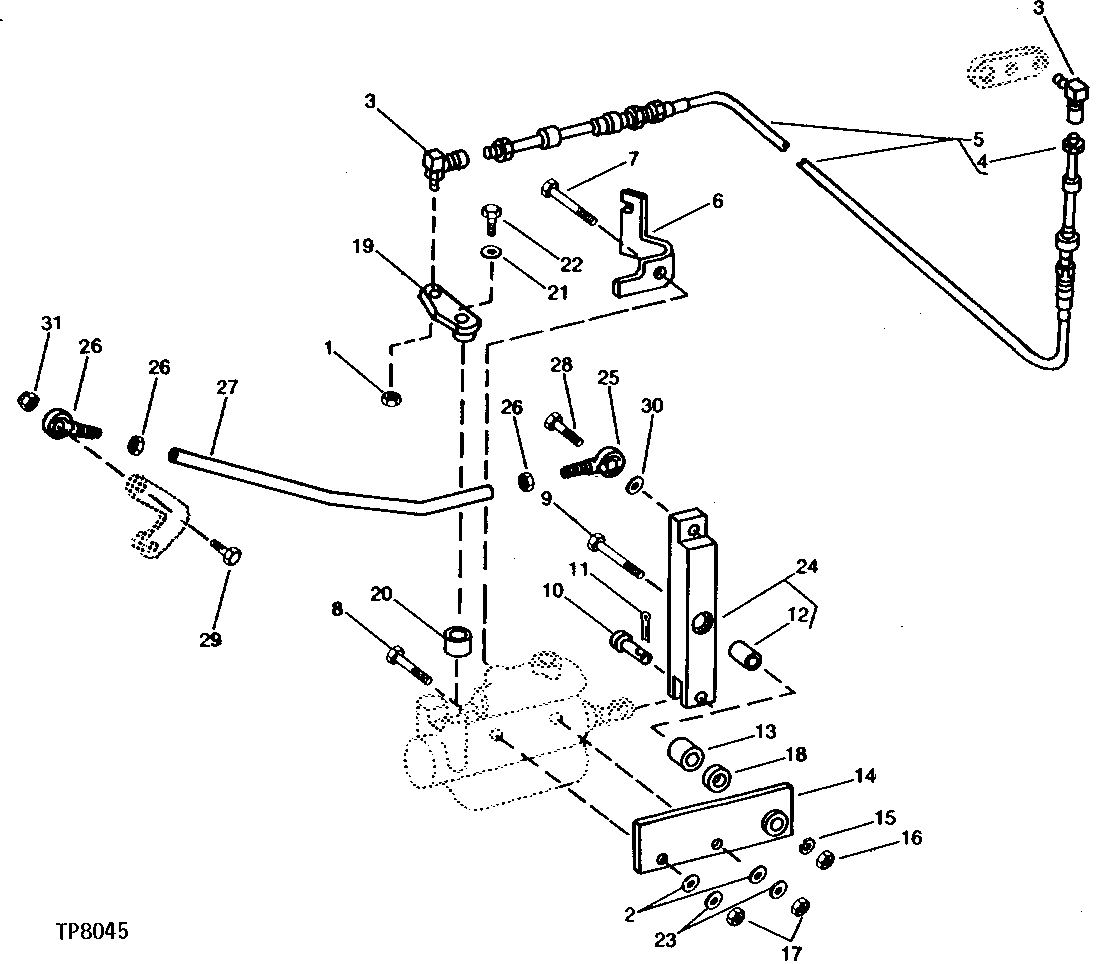

BRAKE VALVE LINKAGE (WITHOUT CAB) (STEEL MILL LOADER) [02J22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T10581	2	Lock Nut	(SUB FOR T60313)
2	12H304	2	Lock Washer	3/8"
3	AU11709	2	Ball Joint	-
4	14H649	2	Nut	1/4"
5	AT113469	1	CABLE	(SUB FOR AT57666)
6	T59426	1	ANCHOR	-
7	19H2104	1	Cap Screw	3/8" X 5"
8	19H3404	1	Cap Screw	3/8" X 4"
9	19H3520	1	Cap Screw	1/2" X 3-1/4"
10	T44988	1	Pin Fastener	(SUB FOR T15652, THIS APPLICATION)
11	11M7015	1	Cotter Pin	3.200 X 25 MM
12	M1640T	1	BUSHING	-
13	T49472	1	BUSHING	-
14	-	1	Part 14	( AT74585 USE IF AVAILABLE)
15	T20168	1	Washer	-
16	14H1040	1	Nut	1/2"
17	T11234	2	Lock Nut	-
18	24H1625	1	Washer	17/32" X 1" X 0.120"
19	T127743	1	LEVER	(SUB FOR AT57844)
20	T12192	1	BUSHING	-
21	24H1219	1	Washer	7/16" X 1" X 0.083"
22	19H3217	1	Cap Screw	3/8" X 1-3/4"
23	24H1682	2	Washer	13/32" X 7/8" X 0.120"
24	AT73676	1	LEVER	(SUB T75602 AND M1640T)
25	AT46594	2	LINK END	-
26	14H882	2	Nut	5/16"
27	T75609	1	PIN FASTENER	-
28	19H2127	1	Cap Screw	5/16" X 7/8"
29	19H1849	1	Cap Screw	5/16" X 1-1/4"
30	24H1136	1	Washer	11/32" X 11/16" X 0.065"
31	T16464	1	Lock Nut	-

BRAKE VALVE LINKAGE (WITHOUT CAB) (STEEL MILL LOADER) [02J22]
