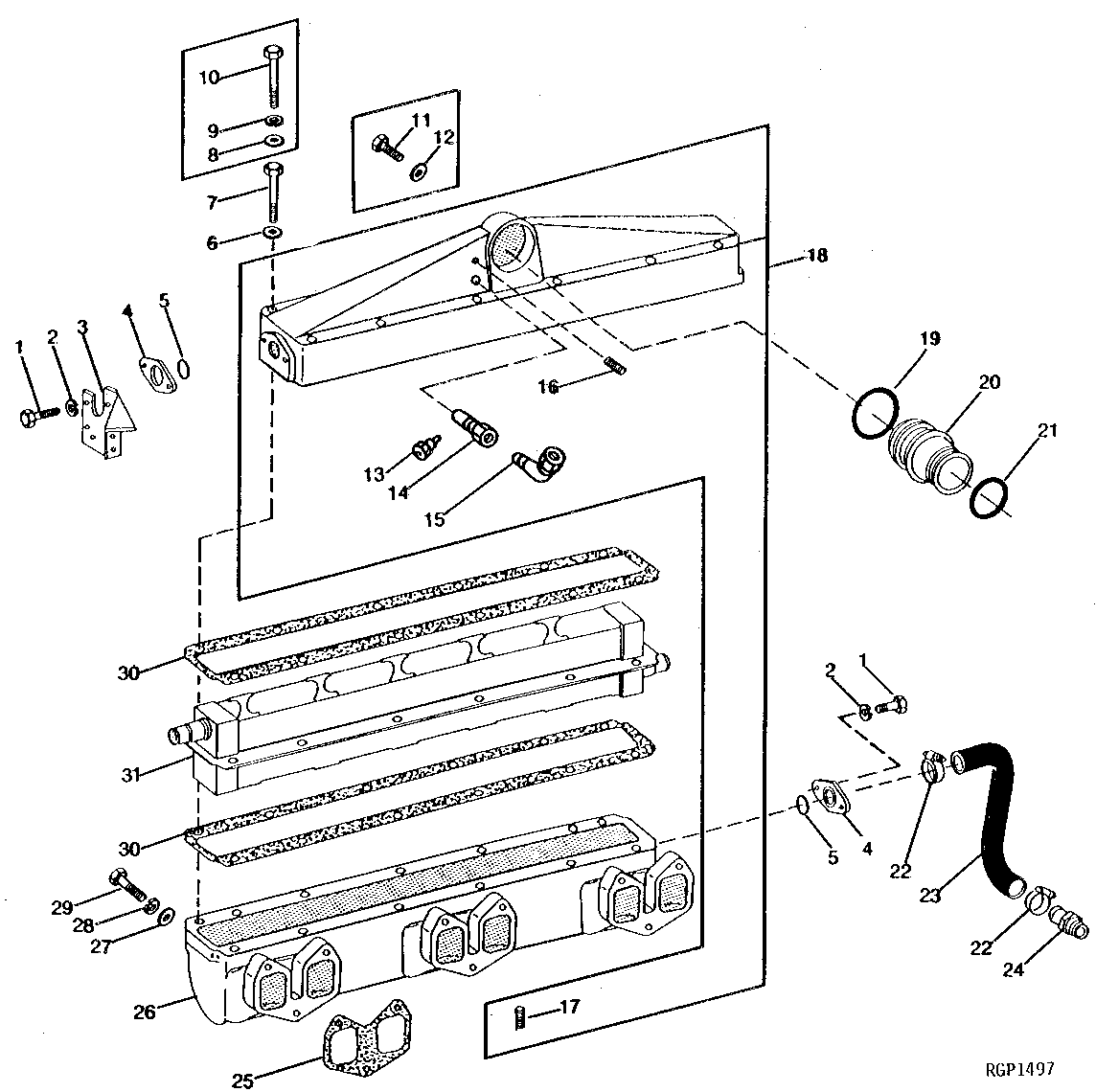

AFTERCOOLER AND INTAKE MANIFOLD [02F07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1905	4	Cap Screw	5/16" X 1"
2	12H303	4	Lock Washer	5/16"
3	R74006	1	Shield	(SUB FOR R59558)
4	R49517	2	Cover	-
5	R47153	2	O-Ring	(SUB FOR R50420, APPL)
6	M72490	12	Washer	10.300 X 21 X 2.500 MM (0.406" X 0.827" X 0.098") (SUB FOR R70234 OR R42729)
7	19H3404	12	Cap Screw	3/8" X 4"
8	24H1305	12	Washer	13/32" X 13/16" X 0.065"
9	12H304	12	Lock Washer	3/8"
10	19H2228	12	Cap Screw	3/8" X 4", (SUB 19H3404 AND M72490)
11	19H2021	1	Cap Screw	3/8" X 5/8"
12	T11292	1	WASHER	-
13	T155858	1	Nozzle	(SUB FOR R28583)
14	R47160	1	Nozzle Holder	-
15	RE21790	1	Elbow Fitting	(SUB FOR AT25266)
16	R104592	1	Pipe Plug	-
17	15H666	1	Pipe Plug	3/8"
18	R76266	1	Cover	(SUB FOR R57516 OR RE12734)
19	R57517	1	O-Ring	-
20	R57518	1	Coupling	-
21	R49424	1	O-Ring	-
22	TY22467	2	Clamp	(SUB FOR AR21839)
23	R49473	1	Hose	-
24	R49518	1	Fitting	-
25	R40088	3	GASKET	-
26	R59071	1	Intake Manifold	-
27	R63489	9	Washer	0.472" X 0.925" X 0.120"
28	-	9	Part 28	(NO LONGER REQUIRED)
29	19H2719	9	CAP SCREW	7/16" X 1-7/8"
29	19H2719	6	CAP SCREW	7/16" X 1-7/8"
29	19H2678	3	Cap Screw	7/16" X 2-1/8"
30	R53081	2	Gasket	-
31	RE46441	1	Intercooler	(SUB FOR AR73030 OR AR70420)
