Measuring System Controller Components (Left),H-16 ( - 409162)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT500022	1	Control Lever	USE WITH AT500023
1	R78066	4	Elec. Connector Terminal	-
1	AT482444	1	Control Lever	SUB FOR AT354299, USE WITH AT474883
2	-	2	Part 4	ORDER AT372714
3	AT474882	1	Handle Kit	USE WITH AT474883
3	AT500028	1	Handle Kit	USE WITH AT500023
4	F658449	1	Case	-
5	F658448	1	Case	-
6	AT480562	1	Wiring Harness	-
7	F658450	1	Lever	-
8	F057215	2	Switch	-
9	-	2	Part 12	ORDER AT372714
10	F057647	4	Screw	-
11	F057648	5	Screw	-
12	F057637	1	Grommet	-
13	F057215	8	Switch	Switch Only
14	F057647	16	Screw	-
15	AT350864	10	Push Switch	NLA; ORDER AT365136
16	AT372714	2	Spring Assembly	-
17	AT365136	1	Push Switch	LH
18	-	1	Part 21	ORDER INDIVIDUAL PARTS
19	F437292	1	Grip	Bellows
20	AT474883	1	Control Lever	Left, NLA; ORDER AT500023
20	AT500023	1	Control Lever	INCLUDES 57M7633, (23) 57M8264, 57M9804 AND 57M9825
20	57M7633	1	Electrical Connector Assy	-
20	57M8264	23	Elec. Connector Terminal	-
20	57M9804	1	Elec. Connector Housing	-
20	57M9825	1	Elec. Connector Housing	-

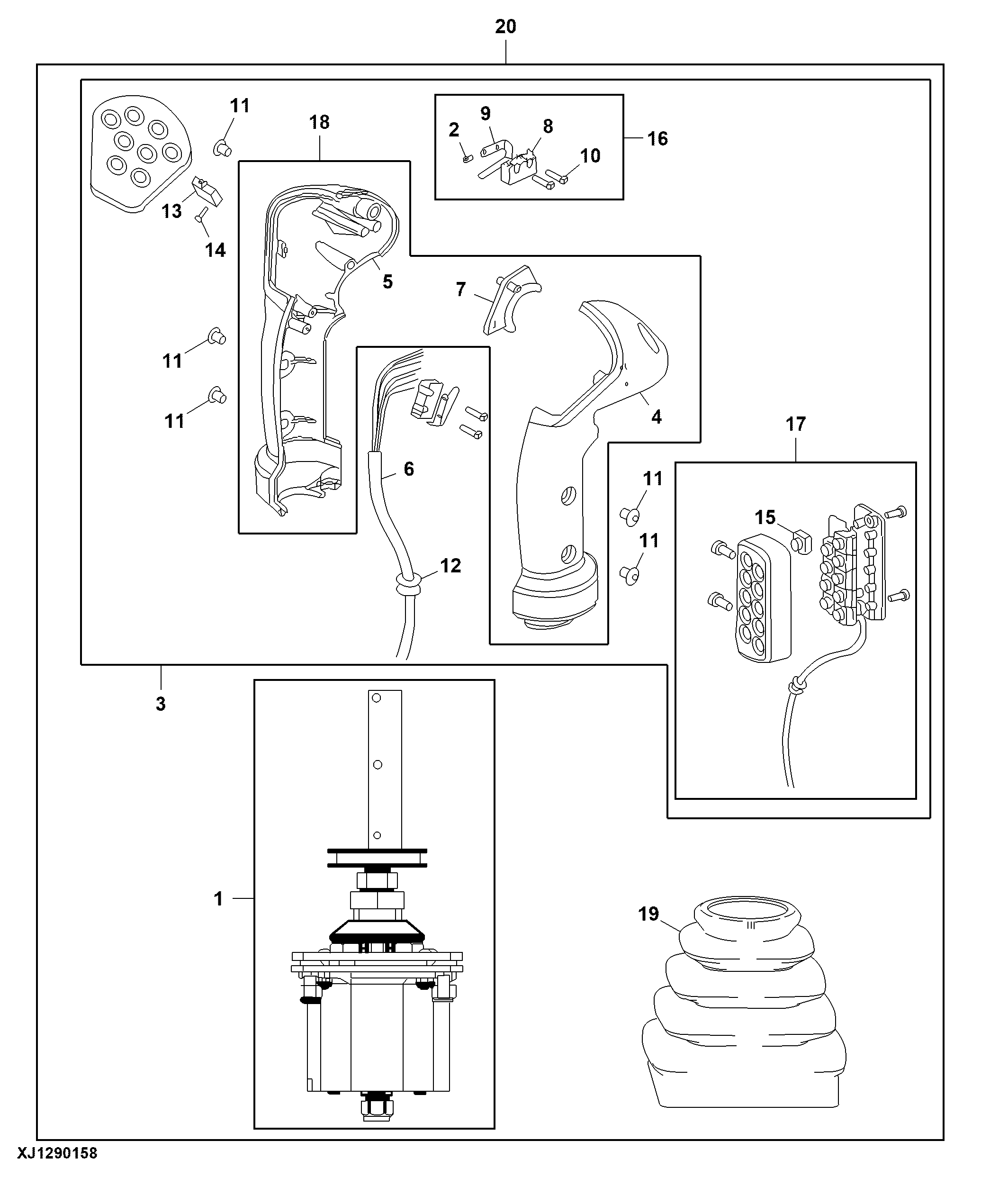

Measuring System Controller Components (Left),H-16 ( - 409162)

Нет текстового описания
