Joystick With 5 Function Grip Components

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F658448	1	Case	NSEP, ORDER F658451
2	F658449	1	Case	NSEP, ORDER F658451
3	F437293	1	Grip	USE WITH F125574
3	AT500025	1	Handle Kit	USE WITH AT500020
4	F057215	6	Switch	-
5	F057644	2	Spring	NSEP, ORDER AT372714
6	F057647	12	Screw	-
7	F658450	1	Lever	NSEP, ORDER F658451
8	FFSB108896	1	Switch	-
9	FFSB108899	1	Cover	Button Overlay
10	F057648	6	Screw	-
11	-	6	Part 12	10–32
12	F057637	1	Grommet	-
13	F057650	1	Wiring Harness	Cable Harness, ALSO ORDER 57M7264, 57M7258 AND (6) 57M7252 OR (6) R104919
14	F437292	1	Grip	Bellows
15	57M7633	1	Electrical Connector Assy	To Joystick Base Not Illustrated
16	AT482444	1	Control Lever	USE WITH F125574, SUB FOR AT354299 AND F437303
16	AT500022	1	Control Lever	USE WITH AT500020
17	AT372714	2	Spring Assembly	-
18	F658451	1	Case Kit	Case Kit
19	F125574	1	Multi-Functional Controller	ORDER AT500020
19	AT500020	1	Control Lever	-
20	57M7682	1	Elec.Connect Locking Device	To Joystick Base Not Illustrated
21	R78066	1	Elec. Connector Terminal	Not Illustrated
22	57M7264	1	Elec. Connector Housing	Not Illustrated
23	57M7258	1	Elec. Connector Seal	Not Illustrated
24	57M7252	6	Elec. Connector Terminal	Not Illustrated
25	R104919	6	Elec. Connector Terminal	Not Illustrated

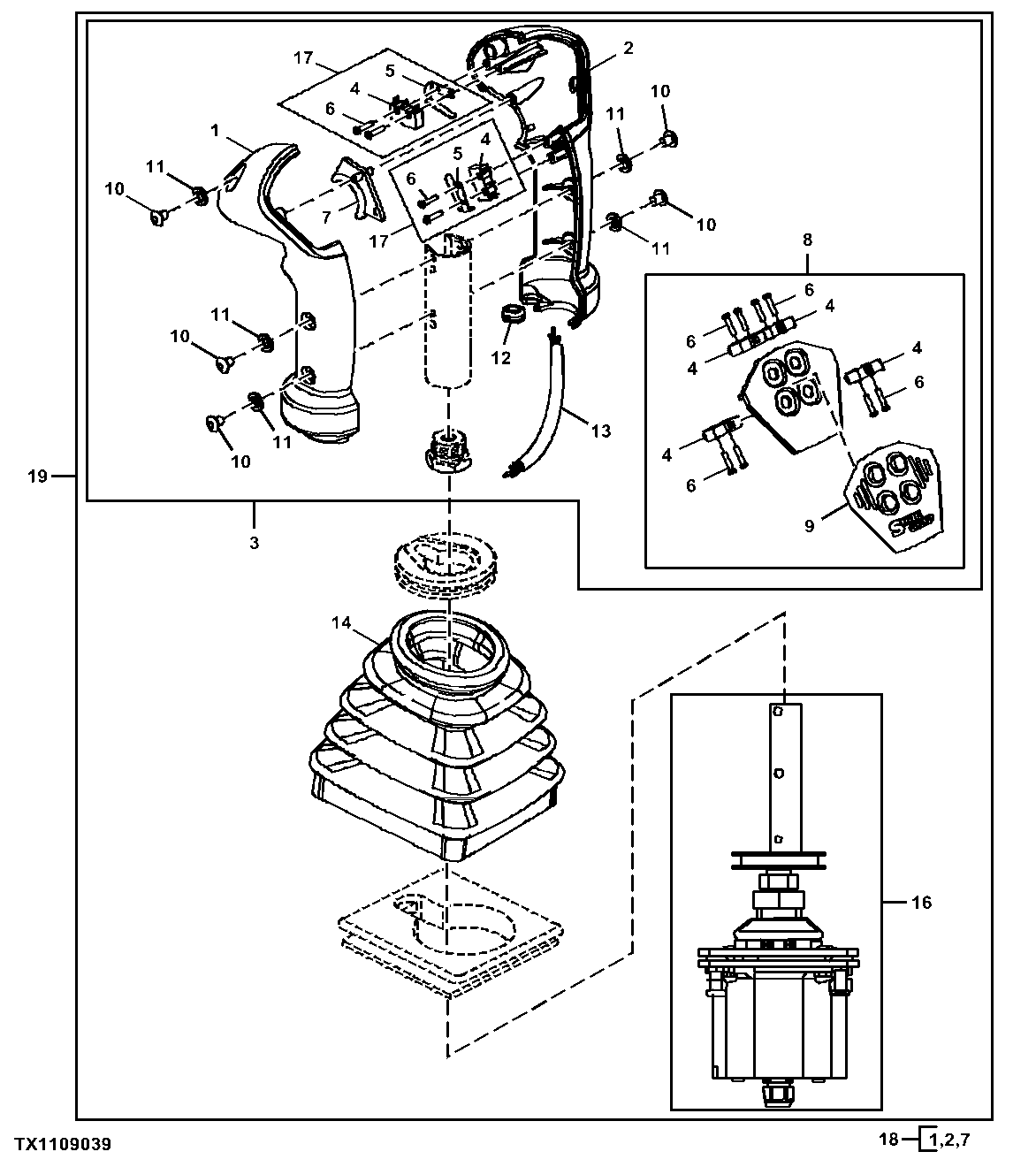

Joystick With 5 Function Grip Components

Нет текстового описания
