Wiring Harness, Manual Air Conditioning ( - 009999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE250948	1	Cab Wiring Harness	SUB FOR RE211471
2	RE46734	1	Electrical Connector Assy	Blower Switch S210
2	Z70804	2	Elec. Connector Terminal	Cavity B, 3
2	57M7429	2	Elec. Connector Terminal	Cavity 1, 2
2	57M8282	1	Elec. Connector Housing	Cavity 4
3	-	2	Part 6	A/C On/Off Switch S211
4	57M8865	1	Elec. Connector Terminal	Cap Ground Stud W5
5	R77476	1	Electrical Connector Assy	Blower Motor M210
5	57M7498	1	Elec. Connector Terminal	Cavity A
6	57M7457	1	Elec. Connector Housing	Dropping Resistor Network R210
6	57M9200	2	Elec. Connector Terminal	Cavity 1, 4
6	57M8310	1	Elec. Connector Terminal	Cavity 2
6	Z70804	1	Elec. Connector Terminal	Cavity 3
7	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
7	57M7258	3	Elec. Connector Seal	Cavity A, B
7	57M7257	1	Elec. Connector Housing	A/C De-Icing Switch S212
8	57M7697	1	Electrical Connector Assy	Cab Harness X210
8	57M7252	3	Elec. Connector Terminal	Cavity B, C, D, F
8	57M7582	1	Elec. Connector Terminal	Cavity E
8	57M7583	1	Elec. Connector Terminal	Cavity G
8	57M7258	1	Elec. Connector Seal	Cavity B
8	57M9215	3	Elec. Connector Seal	Cavity C, D, F
8	57M7575	1	Elec. Connector Terminal	Cavity E
8	57M9563	1	Elec. Connector Cable Seal	Cavity G
9	ET15766	1	Elec. Connector Housing	40 A, KX1 KA1
9	Z70804	1	Elec. Connector Terminal	Cavity 87A
10	57M7328	1	Elec. Connector Housing	A/C Switch S213
10	R104846	2	Elec. Connector Terminal	Cavity A, B
10	57M9215	2	Elec. Connector Seal	Cavity A, B

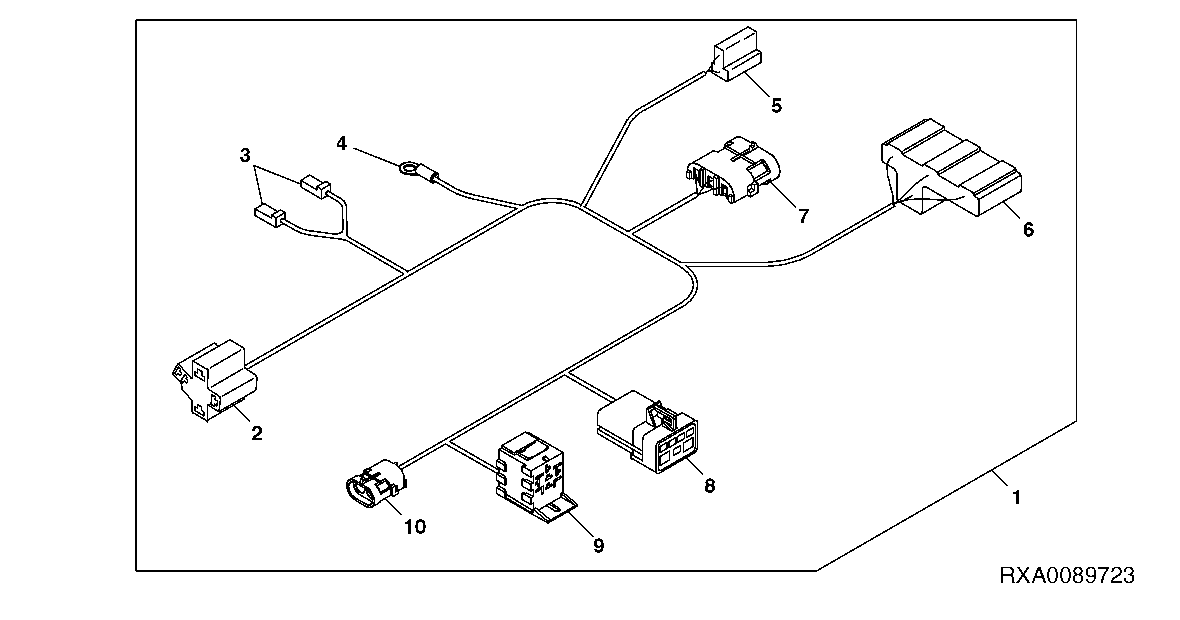

Wiring Harness, Manual Air Conditioning ( - 009999)

Нет текстового описания
