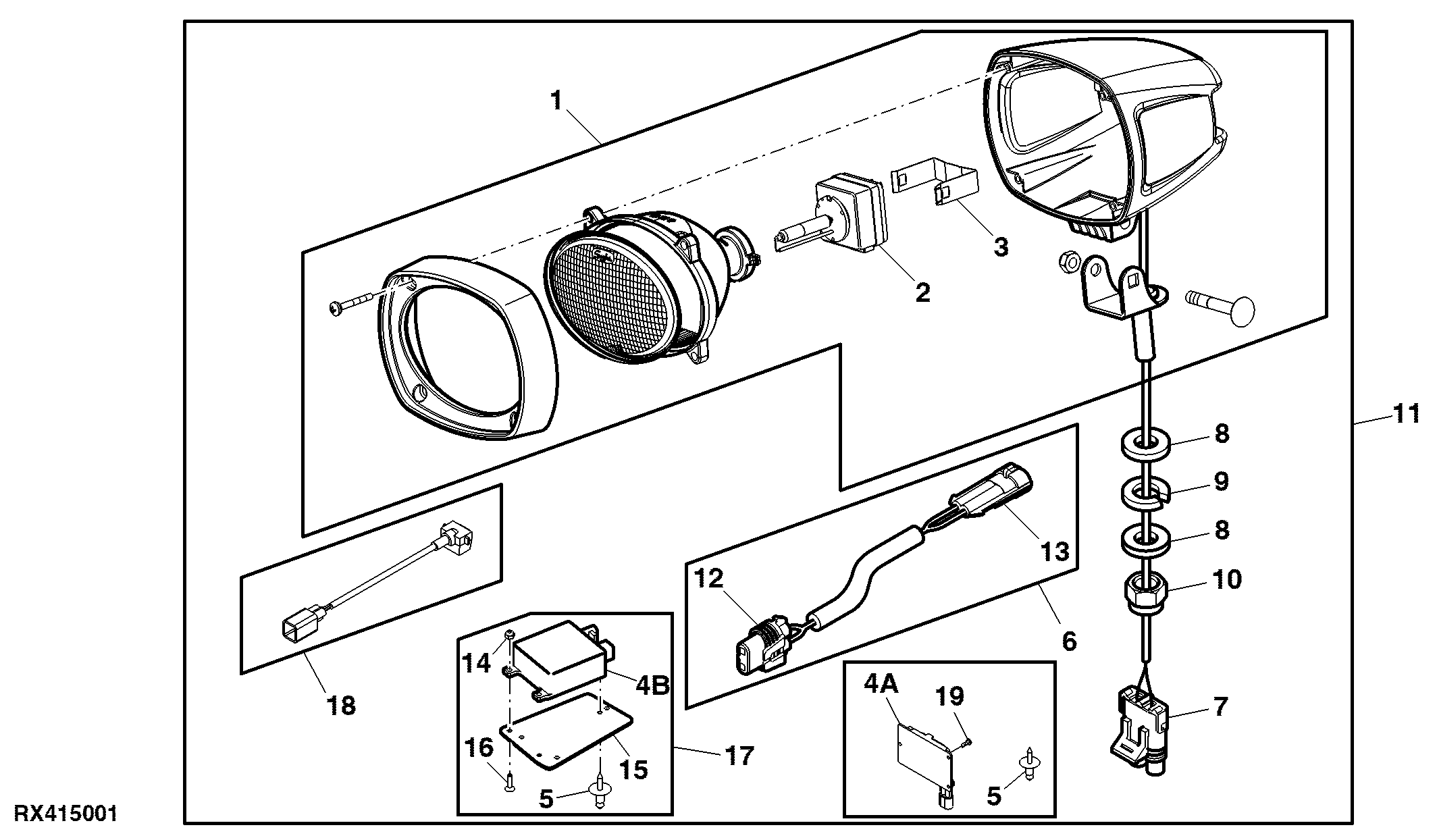

Rear Work Light (Fender) (High Intensity Discharge), Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE276487	1	Floodlamp	(SUB FOR RE234568)
2	RE271575	1	Bulb	(SUB FOR RE179974)
3	R185678	1	Hold-Down Clip	-
5	R79033	3	Rivet	4.780 mm (3/16")
6	RE234604	1	Cab Wiring Harness	-
7	57M8957	2	Elec. Connector Cable Seal	-
7	57M8956	1	Elec. Connector Housing	-
7	57M8954	2	Elec. Connector Terminal	-
8	24M7047	2	Washer	13 X 24 X 2.500 mm
9	12H301	1	Lock Washer	1/2"
10	14M7168	1	Lock Nut	M12
11	RE242550	1	Field Installation Kit	-
12	57M8839	1	Elec. Connector Housing	USE WITH (2) 57M7297_Pin, (2) R78059_Seals
12	57M8129	1	Elec. Connector Terminal	-
13	57M7256	1	Elec. Connector Housing	USE WITH (2) R104919_Pin, (2) 57M7258_Seals
13	57M7289	1	Elec.Connect Locking Device	-
14	14M7360	3	Lock Nut	M5
15	R300532	1	Plate	-
16	19M9277	3	Screw	M5 X 20
17	RE300531	1	Electric Ballast	-
18	RE276604	1	Wiring Harness	-
19	37M7348	3	Screw	-
4A	57M8958	1	Elec. Connector Housing	(USE WITH RE271579)
4A	RE271579	1	Electric Ballast	(SUB FOR RE179975 ) (ALSO ORDER RE276604)
4B	RE302319	1	Electric Ballast	(SUB RE271579, THIS APPLICATION)

Rear Work Light (Fender) (High Intensity Discharge), Attachment
