Chassis Wiring Harness Connectors Continued (2/3) (ILS™) (50K) (Non-Certified)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE267870	1	Chassis Wiring Harness	-
2	57M7293	1	Elec. Connector Housing	A/C CLUTCH
2	57M7295	1	Elec.Connect Locking Device	-
3	57M7262	1	Elec. Connector Housing	HEADLIGHTS
3	57M8908	1	Clip	-
4	57M7553	1	Elec. Connector Housing	FLOOD LIGHTS
5	57M8625	1	Elec. Connector Housing	REAR BRAKE PRESSURE
5	57M8624	1	Elec.Connect Locking Device	-
6	57M7144	1	Elec. Connector Housing	FRONT WASHER PUMP
7	57M7144	1	Elec. Connector Housing	REAR WASHER PUMP
8	57M8924	1	Elec. Connector Housing	FUEL LEVEL SENDER
8	57M8633	1	Elec. Connector Accessory	-
9	57M9188	1	Clip	-
10	57M8924	1	Elec. Connector Housing	BRAKE COOLING
10	57M8633	1	Elec. Connector Accessory	-
11	57M7255	1	Elec. Connector Housing	DRAFT SENSOR
11	57M7290	1	Elec. Connector Accessory	-
12	57M7254	1	Elec. Connector Housing	DRAFT SENSOR
12	57M7289	1	Elec.Connect Locking Device	-
13	57M8924	1	Elec. Connector Housing	DIFFERENTIAL LOCK SOLENOID
13	57M8633	1	Elec. Connector Accessory	-
14	57M8625	1	Elec. Connector Housing	SECONDARY BRAKE PRESS
14	57M8624	1	Elec.Connect Locking Device	-
15	57M8924	1	Elec. Connector Housing	SECONDARY BRAKE VALVEv
15	57M8633	1	Elec. Connector Accessory	-
16	57M8624	1	Elec.Connect Locking Device	HYDRAULIC OIL TEMPERATURE
16	57M8633	1	Elec. Connector Accessory	-
17	57M8924	1	Elec. Connector Housing	REAR PTO SOLENOID
17	57M8633	1	Elec. Connector Accessory	-
18	57M8625	1	Elec. Connector Housing	HYDRAULIC OIL FILTER RESISTANCE
18	57M8624	1	Elec.Connect Locking Device	-
19	57M7290	1	Elec. Connector Accessory	-
19	57M7255	1	Elec. Connector Housing	HYDRAULIC OIL FILTER RESISTANCE
20	57M8924	1	Elec. Connector Housing	REAR PTO SPEED SENSOR
20	57M8633	1	Elec. Connector Accessory	-
21	57M7256	1	Elec. Connector Housing	CLEAN OIL RESERVOIR SWITCH
21	57M7289	1	Elec.Connect Locking Device	-
22	57M9406	1	Elec. Connector Accessory	CLEAN OIL RESERVOIR SWITCH
22	57M8326	1	Electrical Connector Assy	-
22	57M8611	1	Electrical Connector Assy	-
23	57M7256	1	Elec. Connector Housing	AIR PRESSURE TRAILER BRAKE SWITCH
23	57M7289	1	Elec.Connect Locking Device	-
24	RE12364	1	Electrical Connector Assy	HITCH POSITION SENSOR

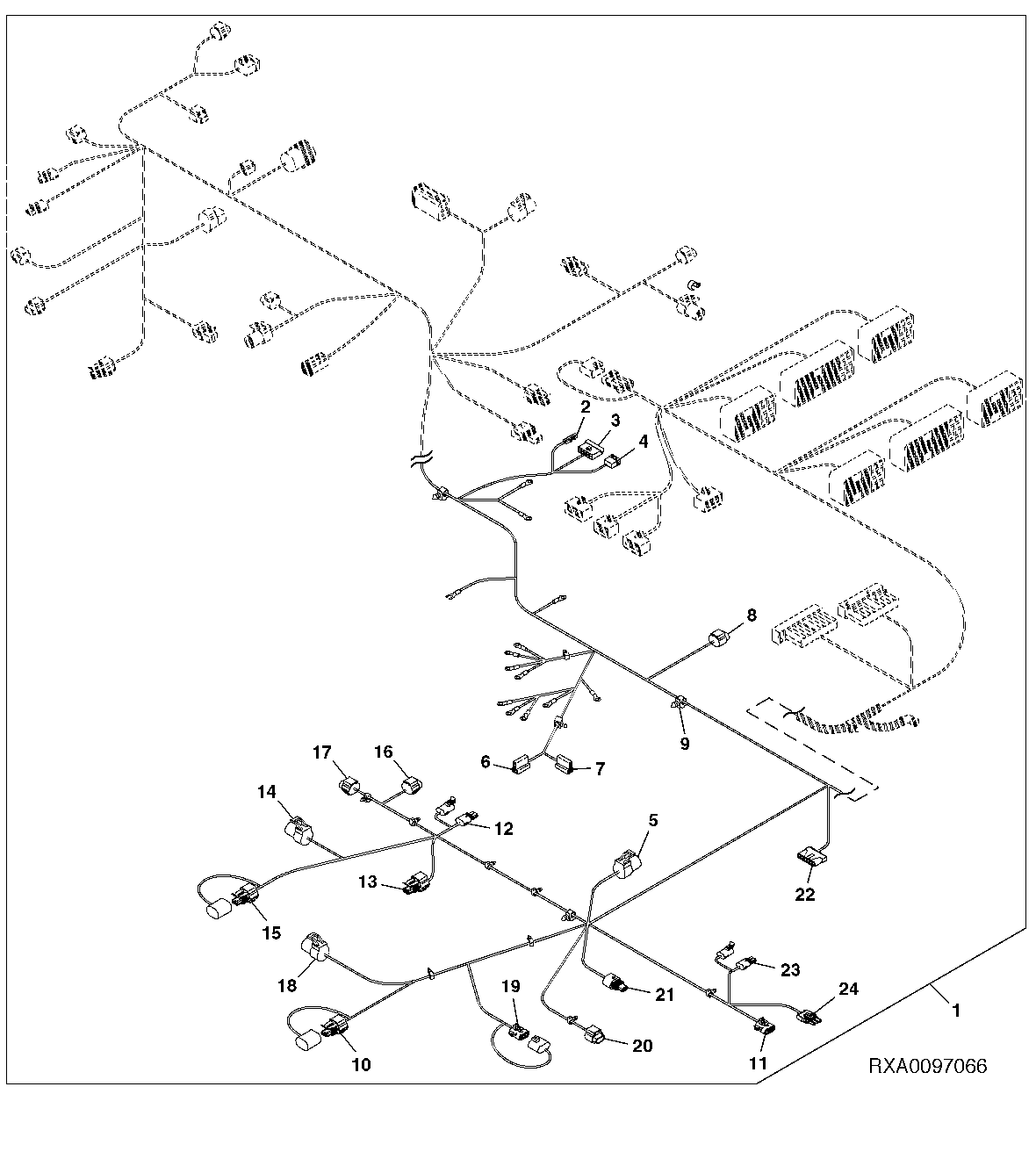

Chassis Wiring Harness Connectors Continued (2/3) (ILS™) (50K) (Non-Certified)
