Cab Wiring Harness Connectors (2/3) (European Version), IVT™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE277131	1	Cab Wiring Harness	SUB FOR RE264042
1	RE250946	1	Cab Wiring Harness	SUB FOR RE211467
2	57M8848	6	Elec.Connect Locking Device	-
2	57M8847	6	Elec. Connector Housing	Splice Pack 1, 2, 3, 4, 5 & 6
3	57M7289	1	Elec.Connect Locking Device	-
3	R104846	2	Elec. Connector Terminal	Cavity A, B
3	57M9215	1	Elec. Connector Seal	Cavity A
3	57M7258	1	Elec. Connector Seal	Cavity B
3	57M7254	1	Elec. Connector Housing	Left Rear Fender Flood E183
4	57M9224	2	Elec. Connector Terminal	Cavity 23, 24
4	57M8164	3	Elec. Connector Terminal	Cavity 22, 25, 28
4	57M8429	4	Elec. Connector Terminal	Cavity 18, 20, 27, 29
4	N282068	2	Elec. Connector Terminal	Cavity 16, 19
4	N282069	12	Elec. Connector Terminal	Cavity 5, 6, 7, 9, 10, 11, 12, 13, 14, 15, 17, 26
4	57M8260	3	Elec. Connector Terminal	Cavity 2, 3, 4
4	57M8616	1	Elec. Connector Housing	Chassis Harness X100
5	R112653	1	Grommet	-
6	RE210023	1	Electrical Connector Assy	Implement CAN Data Connector X921
6	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
6	R78067	2	Elec. Connector Terminal	Cavity 2, 4
7	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
7	57M8016	1	Elec.Connect Locking Device	-
7	57M8015	1	Electrical Connector Assy	Implement CAN X913
8	57M8813	1	Elec. Connector Housing	License Plate X111
8	57M8810	2	Elec. Connector Terminal	Cavity A, B
9	AZ13378	1	Socket Outlet	7 Pin Dome Elect. Conn. (SUB FOR L83677);X160
10	57M8815	1	Elec. Connector Housing	Implement Flood X161
10	57M8809	1	Elec. Connector Terminal	Cavity 1
11	RE12363	1	Electrical Connector Assy	Hitch Down Switch S240
11	R78057	2	Elec. Connector Terminal	Cavity A, B
11	57M9219	2	Elec. Connector Seal	Cavity A, B
12	57M8908	1	Clip	-
13	57M8274	1	Elec. Connector Housing	Chassis Harness X807
13	57M7300	1	Elec. Connector Accessory	-
13	57M7286	1	Elec. Connector Terminal	Cavity A
13	57M9216	1	Elec. Connector Seal	Cavity A
13	57M7285	4	Elec. Connector Terminal	Cavity B, C, D, E
13	57M9219	3	Elec. Connector Seal	Cavity B, C, E
13	57M9218	1	Elec. Connector Seal	Cavity D
14	57M9229	4	Clip	-
15	57M8827	2	Clamp	-
16	57M7289	1	Elec.Connect Locking Device	-
16	57M7254	1	Elec. Connector Housing	Right Rear Fender Flood E186
16	57M7258	1	Elec. Connector Seal	Cavity B
16	R104846	2	Elec. Connector Terminal	Cavity A, B
16	57M9215	1	Elec. Connector Seal	Cavity A
17	R78054	1	Electrical Connector Assy	Right Extremity Light E162
17	R78061	3	Elec. Connector Terminal	Cavity A, B, C
17	57M9218	3	Elec. Connector Seal	Cavity A, B, C
18	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
18	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
18	57M7291	1	Electrical Connector Assy	-
18	57M7260	1	Elec. Connector Housing	Right Hitch Up/Dn Conn. S831
19	57M8416	1	Elec. Connector Housing	Right Tail Lamp X106
19	57M7469	1	Electrical Connector Assy	-
19	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
19	57M9215	3	Elec. Connector Seal	Cavity A, B, C
19	57M7258	1	Elec. Connector Seal	Cavity D
20	57M7258	2	Elec. Connector Seal	Cavity B, D
20	57M9215	2	Elec. Connector Seal	Cavity A, C
20	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
20	57M8416	1	Elec. Connector Housing	Left Tail Lamp X107
20	57M7469	1	Electrical Connector Assy	-
21	57M7687	1	Elec. Connector Housing	Rear Remote PTO Switch S574
21	57M7290	1	Elec. Connector Accessory	-
21	R104846	3	Elec. Connector Terminal	Cavity A, B, C
21	57M9215	3	Elec. Connector Seal	Cavity A, B, C
22	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
22	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
22	57M7291	1	Electrical Connector Assy	-
22	57M7260	1	Elec. Connector Housing	Left Hitch Up/Down Switch S830
23	R78054	1	Electrical Connector Assy	Left Extremity Light E163
23	57M7251	1	Elec. Connector Terminal	Cavity A
23	57M9219	1	Elec. Connector Seal	Cavity A
23	R78061	2	Elec. Connector Terminal	Cavity B, C
23	57M9218	2	Elec. Connector Seal	Cavity B, C
24	R78053	1	Electrical Connector Assy	Dust Cap
25	RE12364	2	Electrical Connector Assy	Dust Cap
26	57M9197	2	Elec. Connector Terminal	Battery Power
27	RE48875	1	Junction Block	-

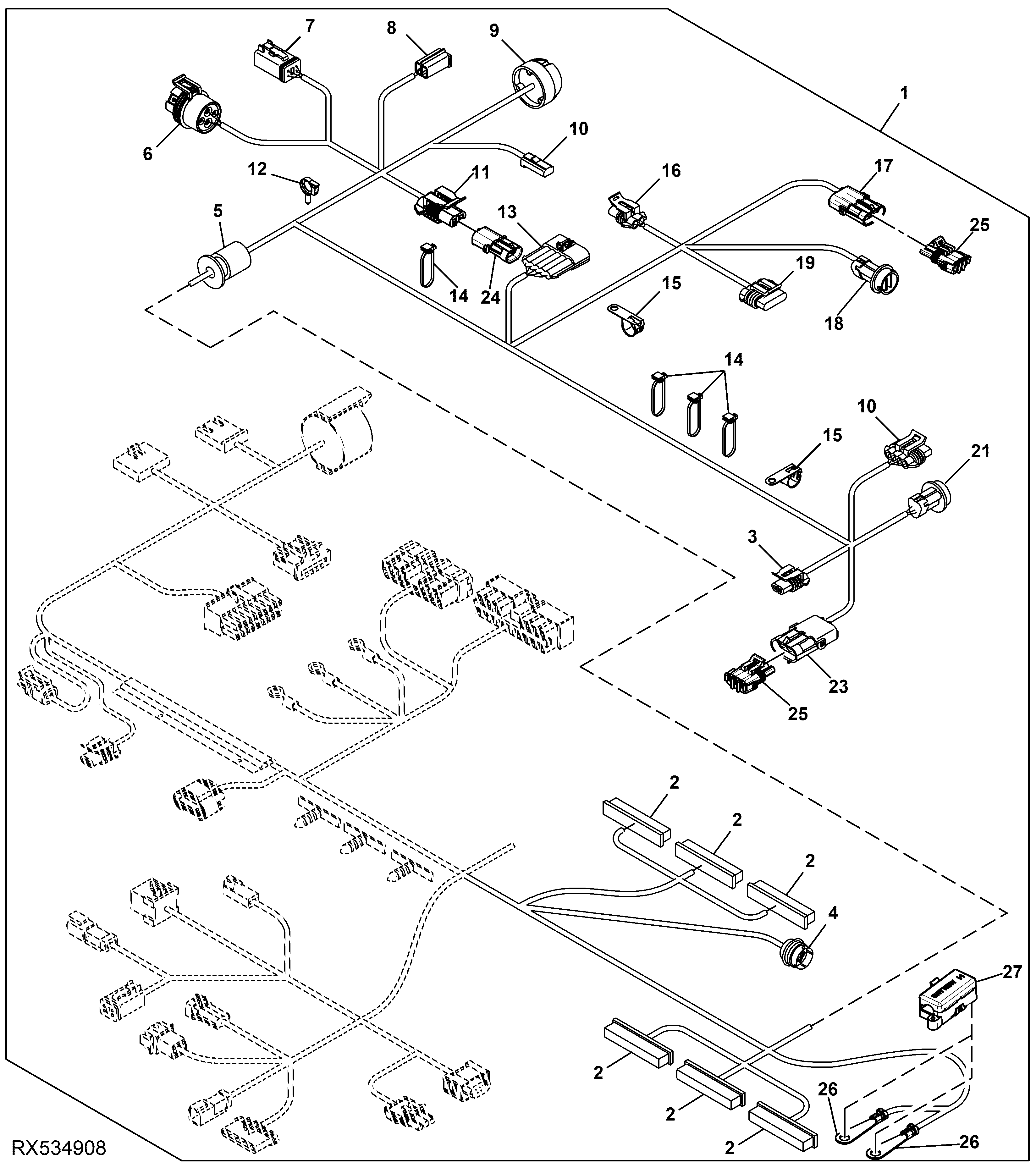

Cab Wiring Harness Connectors (2/3) (European Version), IVT™
