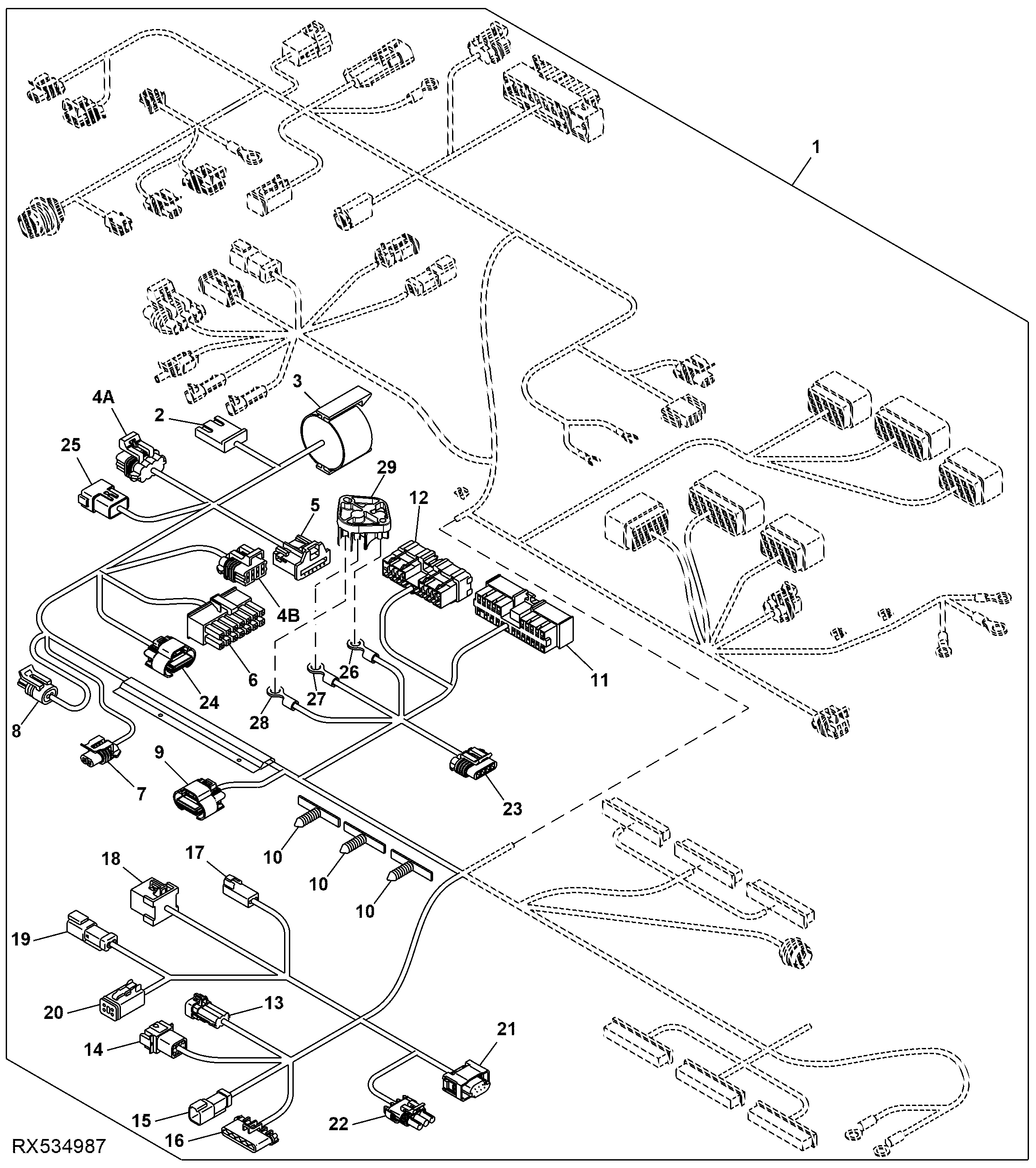

Cab Wiring Harness Connectors (1/3) (European Version), IVT™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE277131	1	Cab Wiring Harness	SUB FOR RE264042
1	RE250946	1	Cab Wiring Harness	SUB FOR RE211467
2	R77480	1	Electrical Connector Assy	Start Aid S300
2	57M9199	2	Elec. Connector Terminal	Cavity A, B
3	RE46736	1	Electrical Connector Assy	Key Switch S001
3	57M7429	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
5	57M8933	1	Elec. Connector Housing	Mode Actu. Y220
5	57M8719	5	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6
6	57M7550	2	Elec. Connector Terminal	Cavity 9, 11
6	57M7551	12	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 10, 12, 13, 14
6	57M7717	1	Electrical Connector Assy	Steering Column Module A101
6	57M7722	1	Electrical Connector Assy	-
7	R104846	2	Elec. Connector Terminal	Cavity A, B
7	57M7258	2	Elec. Connector Seal	Cavity A, B
7	57M7289	1	Elec.Connect Locking Device	-
7	57M7254	1	Elec. Connector Housing	Pressurizer Motor M211
8	57M7328	1	Elec. Connector Housing	Difflock Switch S503
8	57M7289	1	Elec.Connect Locking Device	-
8	R104846	2	Elec. Connector Terminal	Cavity A, B
8	57M9215	2	Elec. Connector Seal	Cavity A, B
9	57M8919	1	Elec. Connector Housing	Foot Throttle A577
9	57M8560	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
9	57M8566	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
10	57M8835	3	Elec. Connector Accessory	-
11	57M8913	14	Elec. Connector Terminal	Cavity C, D, E, G, H, J, K, L, P, R, S, T, V, X
11	57M8912	5	Elec. Connector Terminal	Cavity A, F, M, Y, Z
11	57M8859	2	Elec.Connect Locking Device	-
11	57M8860	1	Elec.Connect Locking Device	-
11	57M8858	1	Elec. Connector Housing	Driver Info Connector 1 X900
12	57M8857	1	Elec. Connector Housing	Driver Info Connector 2 X901
12	57M8860	1	Elec.Connect Locking Device	-
12	57M8859	2	Elec.Connect Locking Device	-
12	57M8861	5	Elec. Connector Terminal	Cavity N, P, R, W, Y
12	57M8863	11	Elec. Connector Terminal	Cavity C, D, J, L, H, F, M, U, V, S, T
12	57M8862	4	Elec. Connector Terminal	Cavity A, B, K, E
13	57M7258	4	Elec. Connector Seal	Cavity A, B, C, E
13	57M9215	2	Elec. Connector Seal	Cavity D, F
13	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
13	57M7291	1	Electrical Connector Assy	-
13	57M7263	1	Elec. Connector Housing	Manual Seat X930
14	57M7631	1	Elec. Connector Housing	Active Seat X941
14	57M7680	1	Elec. Connector Terminal	-
14	57M8164	6	Elec. Connector Terminal	Cavity 3, 4, 5, 6, 7, 8
15	57M7629	1	Elec. Connector Housing	Active Seat X942
15	57M7678	1	Elec. Connector Terminal	-
15	57M8164	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
16	57M9215	3	Elec. Connector Seal	Cavity A, B, D
16	57M7258	1	Elec. Connector Seal	Cavity C
16	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
16	57M7469	1	Electrical Connector Assy	-
16	57M7840	1	Elec. Connector Housing	Active Seat X940
17	57M8889	1	Elec. Connector Housing	RHR Neutral Start Switch X301
17	57M9201	1	Elec.Connect Locking Device	-
17	57M8295	2	Elec. Connector Terminal	Cavity A, B
18	M135518	1	Electrical Connector Assy	Armrest Control Module X570
18	57M8327	2	Electrical Connector Assy	-
18	R104921	4	Elec. Connector Terminal	Cavity A, B, D, G
18	57M9186	4	Elec. Connector Terminal	Cavity C, E, F, H
19	57M8016	1	Elec.Connect Locking Device	User Interface Module A909
19	57M8015	1	Electrical Connector Assy	-
19	57M7546	2	Elec. Connector Terminal	Cavity 1, 3
19	57M8165	2	Elec. Connector Terminal	Cavity 2, 4
20	57M8017	1	Elec. Connector Housing	User Interface Module Dust Cap
20	57M7619	1	Elec.Connect Locking Device	-
21	57M7953	1	Electrical Connector Assy	Hand Brake Position B901
22	RE12364	1	Electrical Connector Assy	Hand Brake S506
23	57M8416	1	Elec. Connector Housing	IVT™ Select Switch S571
23	57M7469	1	Electrical Connector Assy	-
23	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
23	57M7258	1	Elec. Connector Seal	Cavity A
23	57M9215	3	Elec. Connector Seal	Cavity B, C, D
24	57M8919	1	Elec. Connector Housing	Clutch Pedal B513
24	57M8560	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
24	57M8566	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
25	57M7633	1	Electrical Connector Assy	Reverser Module A574
25	57M7682	1	Elec.Connect Locking Device	-
25	57M8164	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6, 7
25	N282069	5	Elec. Connector Terminal	Cavity 5, 8, 9, 11, 12
26	57M8871	1	Elec. Connector Terminal	-
27	57M8875	1	Elec. Connector Terminal	-
28	57M8875	1	Elec. Connector Terminal	-
29	RE186986	1	Junction Block	-
4A	57M7261	1	Elec. Connector Housing	Brake Switches
4A	57M7296	1	Elec. Connector Accessory	-
4B	57M7261	1	Elec. Connector Housing	Brake Switches A921
4B	57M7296	1	Elec. Connector Accessory	-
4B	R104846	8	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H
4B	57M9215	8	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H
