Mechanical Angle Dozer Blade, 4.267 m (168 in)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT427032	2	Trunnion	SUB FOR AT366730
2	24M7396	16	Washer	21 X 34 X 3 mm
3	19M8639	16	Cap Screw	M20 X 70
4	AT443420	1	Frame	Order Through Rockland Manufacturing, LH
5	T351426	1	Trunnion	-
6	AT443421	1	Frame	Order Through Rockland Manufacturing, RH
7	T351426	1	Trunnion	-
8	JD7759	3	Lubrication Fitting	-
9	15H585	1	Pipe Plug	3/4"
10	T212464	4	Plate	-
11	T49100	20	Plate	-
12	T343927	2	Crossbar	-
13	19H3534	4	Cap Screw	1" X 7-1/2"
14	K40018	4	Lock Nut	-
15	AT443498	1	Pin	-
16	T351427	1	Retainer	-
17	12H236	3	Lock Washer	3/4"
18	19H3027	3	Cap Screw	3/4" X 3-1/2"
19	12H235	16	Lock Washer	1-1/4"
20	08H4836	16	Cap Screw	1-1/4" X 4"
21	14H1114	16	Nut	1-1/4"
22	AT443414	1	Dozer Blade	Order Through Rockland Manufacturing
23	T351517	2	Junction Block	-
24	T351429	2	Pin	-
25	T351413	2	Pin	-
26	19H3170	10	Cap Screw	5/8" X 4-1/2"
27	K40015	10	Lock Nut	-
28	T4T6505	1	End Bit	Right
29	T4T6506	1	End Bit	Left
30	T352102	2	Cutting Edge	-
31	T352103	1	Cutting Edge	Center
32	09H1771	36	Bolt	7/8" X 3"
33	14H1044	36	Nut	7/8"
34	T351416	4	Clevis	-
35	T351417	4	Pin	-
36	T351420	2	Ball Stud	-
37	T351421	2	Pin Fastener	-
38	11M7038	2	Cotter Pin	6.300 X 40 mm
39	AT443416	2	Yoke With Shaft	-
40	AT443417	1	Brace	Order Through Rockland Manufacturing, RH
41	T351425	1	Trunnion	-
42	T354307	1	Nut	-
43	AT443497	1	Brace	Order Through Rockland Manufacturing, LH
44	T351425	1	Trunnion	-
45	T354307	1	Nut	-
46	T351419	2	Pin	-
47	AT443419	2	Hydraulic Cylinder	Components On Separate Page
48	AT443499	1	Hydraulic Cylinder Barrel	-
49	AT443493	1	Hydraulic Cylinder Rod	-
50	JD7759	2	Lubrication Fitting	-
51	T351418	2	Guard	-
52	24M7038	12	Washer	13.500 X 24 X 2.500 mm
53	12H301	8	Lock Washer	1/2"
54	19H2472	4	Cap Screw	1/2" X 1"
55	19H3873	2	Cap Screw	1/2" X 5"
56	K40014	6	Lock Nut	-
57	T351423	52	Shim	-
58	T351422	2	Cap	-
59	19M7617	4	Cap Screw	M20 X 80
60	T351414	1	Pin	-
61	19H3105	1	Cap Screw	3/4" X 5"
62	K40016	1	Lock Nut	-
63	T351428	4	Plate	-
64	14H1040	4	Nut	1/2"
65	T351415	2	Guard	-
66	T351424	1	Guard	-
67	19H2473	4	Cap Screw	1/2" X 1-3/4"
68	R29424	8	Flange Fitting	-
69	19M7662	16	Cap Screw	M10 X 30
70	T59014	4	O-Ring	-
71	T351014	2	Bearing	SUB FOR T212400
72	T202754	2	Pin	-
73	T202755	2	Plate	-
74	19M8242	2	Screw	M12 X 16
75	AT377689	1	Cap	ORDER T343927
76	T223424	1	Cap	-

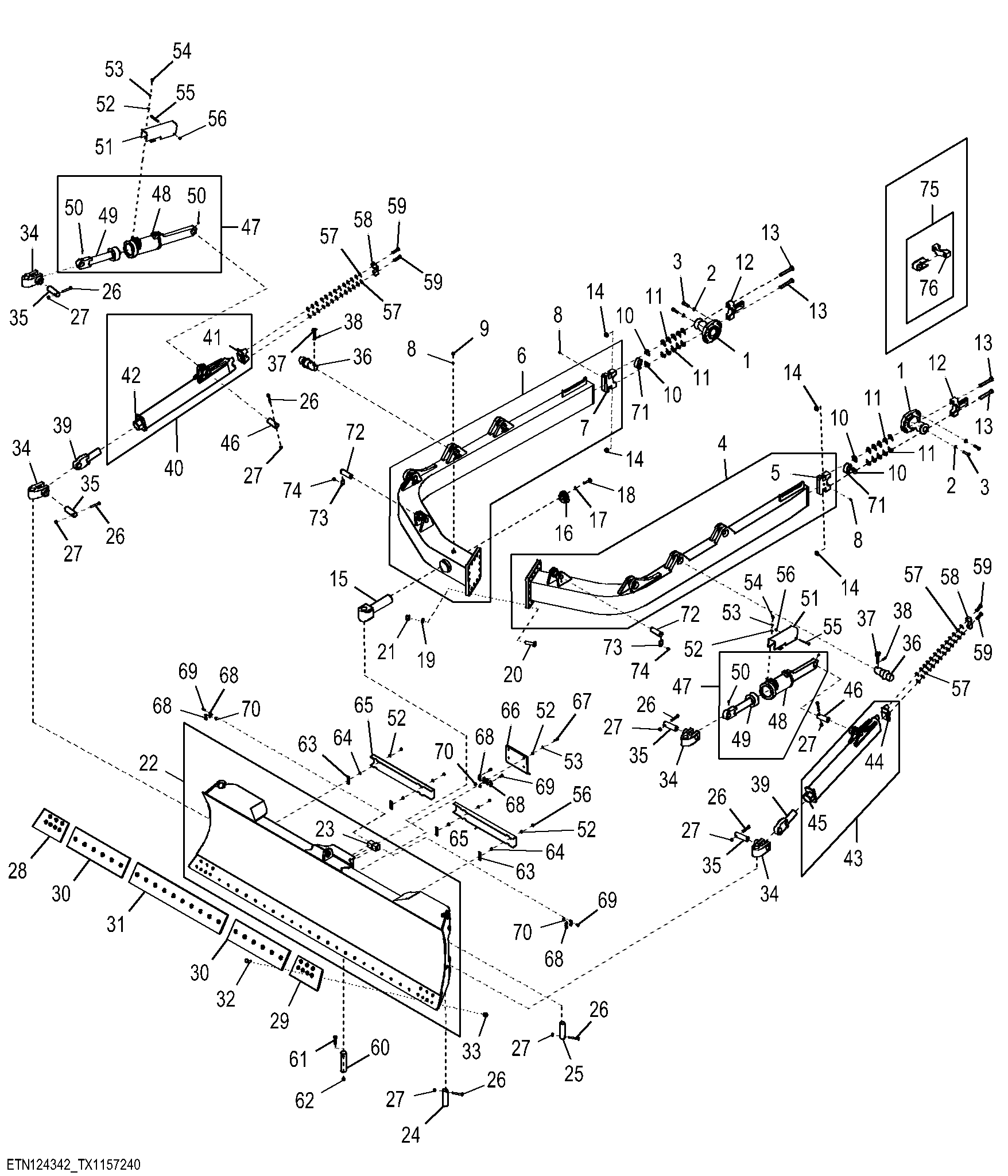

Mechanical Angle Dozer Blade, 4.267 m (168 in)
