Открытый узел

Final Drive Components, Wide Track, Wide Long Track

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200989	1	Drive Reman	RH, NLA; ORDER RM100141; REMAN FOR AT452048 AND AT352358, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546
1	AT466311	1	Drive	RH, SUB FOR AT452048, AT338093, AT352358, AT450290 AND AT479174, REQUIRES (5) T369154 AND (25) T354544 AND (25) T354546
1	RM100140	1	Drive Reman	LH, REMAN FOR AT466310, AT450289 AND AT479173
1	PG200994	1	Drive Reman	LH, NLA; ORDER RM100140; REMAN FOR AT452047 AND AT352357, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546
1	RM100141	1	Drive Reman	RH, REMAN FOR AT466311, AT450290 AND AT479174
1	AT466310	1	Drive	LH, SUB FOR AT452047, AT338099, AT352357, AT450289 AND AT479173, REQUIRES (5) T369154 AND (25) T354544 AND (25) T354546
2	AT528333	1	Housing	RH, SUB FOR AT462612, T279466 AND T208697
2	AT528332	1	Housing	LH, SUB FOR AT462611, T279467 AND T209107
3	H23836	1	Ball	SUB FOR R29194
4	T239901	1	Housing	-
5	AT385620	2	Tapered Roller Bearing	-
6	AT505275	1	Seal	SUB FOR AT450312 AND AT353424
7	T359174	1	Housing	SUB FOR T267898, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546 PER FINAL DRIVE
7	T344461	5	Sprocket Segments	Recessed Sprocket Not Illustrated, USE WITH T359174, AT466311, RM100141, AT466310 AND RM100140
7	T369154	5	Sprocket Segments	Not Illustrated, USE WITH T359174, AT466311, RM100141, AT466310 AND RM100140
7	T354544	25	Screw	Not Illustrated, USE WITH T359174, AT466311, RM100141, AT466310 AND RM100140
7	T354546	25	Nut	Not Illustrated, USE WITH T359174, AT466311, RM100141, AT466310 AND RM100140
8	AT460585	1	Brake	SUB FOR AT352318
9	T201906	1	Housing	-
10	T373515	1	Gasket	SUB FOR T164624
11	T153832	1	O-Ring	-
12	T56467	16	Spring	-
13	T200272	1	Plate	-
14	T45901	1	Snap Ring	-
15	T200271	1	Piston	-
16	T152624	1	O-Ring	-
17	R81499	6	Plate	-
18	AT467275	6	Disk With Inner Spline	SUB FOR AT300740
19	AT460570	1	Hub	SUB FOR AT300034
20	34M7131	1	Spring Pin	4 X 50 mm
21	T200429	1	Plate	-
22	19M7835	4	Screw	M10 X 35
23	T200201	1	Hub	-
24	T200364	1	Plate	-
25	19M7493	12	Cap Screw	M12 X 40
26	T369646	1	Ring Gear	Z = 70, SUB FOR T195761
27	T200197	1	Snap Ring	-
28	T427604	1	Planet Pinion Carrier	SUB FOR T196443
29	T200412	1	O-Ring	-
30	DE18556	3	Thrust Bearing	-
31	T372247	3	Pin	SUB FOR T200202
32	AT390577	4	Tapered Roller Bearing	-
33	JD8130	1	Bearing Cone	-
34	JD7446	1	Bearing Cup	-
35	T394704	1	Sun Gear	11 Tooth, SUB FOR T357030, T216996 AND T212532, REQUIRES (3) T394706
36	T394706	3	Planet Pinion	Z = 28, SUB FOR T357031, T216995 AND T212531, REQUIRES T394704
37	19M9387	3	Screw	M16 X 120
38	19M8306	40	Screw	M12 X 50
39	19M7847	22	Screw	M16 X 180
40	AT461877	1	Seal	SUB FOR T216571
41	T200698	1	Snap Ring	-
42	T394702	1	Gear	Z = 79, SUB FOR T218792, REQUIRES T394700
43	T394700	1	Pinion Shaft	Z = 13, SUB FOR T218793, REQUIRES T394702
44	T369365	1	Shim	TK = 0.177 mm (0.007 in), SUB FOR T216314
45	T369366	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T216315
46	T369367	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T263699
47	T257941	1	Bearing Housing W/O Bearing	-
48	19M8637	8	Cap Screw	M10 X 40
49	T162018	1	Gasket	-
50	T153833	2	O-Ring	-
51	40M7120	1	Snap Ring	-
52	T78662	4	Drain Plug	-
53	U17409	4	O-Ring	-
54	T369362	1	Shim	TK = 0.10 mm (0.005 in), SUB FOR T200797
55	T369363	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T200798
56	T369364	1	Shim	TK = 0.15 mm (0.007 in), SUB FOR T200799
57	25M3827	2	Groove Pin	3 X 8 mm
58	24M7345	8	Washer	13.500 X 24 X 2.500 mm
59	19M7908	8	Cap Screw	M12 X 110

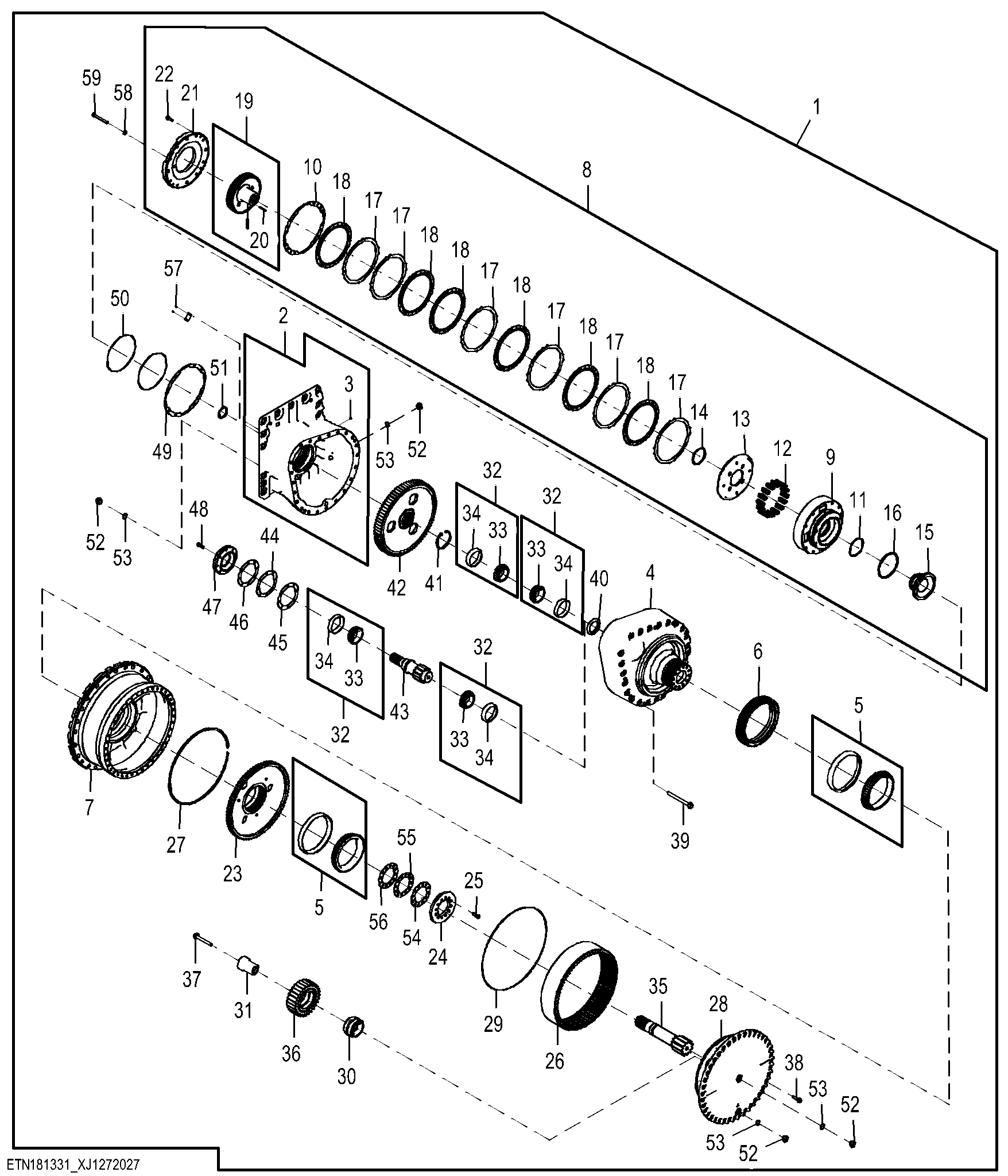

Final Drive Components, Wide Track, Wide Long Track
