Открытый узел

Final Drive Components, Standard Track, Long Track

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200988	1	Drive Reman	RH, NLA; ORDER RM100139; REMAN FOR AT452046 AND AT352356, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546
1	AT466309	1	Drive	RH, SUB FOR AT452046, AT338092, AT352356, AT450288 AND AT479172, REQUIRES (5) T369154 AND (25) T354544 AND (25) T354546
1	RM100138	1	Drive Reman	LH, REMAN FOR AT466308, AT450287 AND AT479171
1	PG200993	1	Drive Reman	LH, NLA; ORDER RM100138; REMAN FOR AT452045 AND AT352355, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546
1	RM100139	1	Drive Reman	RH, REMAN FOR AT466309, AT450288 AND AT479172
1	AT466308	1	Drive	LH, SUB FOR AT452045, AT338098, AT352355, AT450287 AND AT479171, REQUIRES (5) T369154 AND (25) T354544 AND (25) T354546
2	AT528332	1	Housing	LH, SUB FOR AT462611, T279467 AND T209107
2	AT528333	1	Housing	RH, SUB FOR AT462612, T279466 AND T208697
3	H23836	1	Ball	-
4	T239237	1	Housing	-
5	T369362	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T200797
6	T369363	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T200798
7	T369364	1	Shim	TK = 0.178 mm (0.007 in), SUB FOR T200799
8	AT461877	1	Seal	SUB FOR T216571
9	AT390577	4	Tapered Roller Bearing	-
10	JD8130	1	Bearing Cone	-
11	JD7446	1	Bearing Cup	-
12	T200698	1	Snap Ring	-
13	T394704	1	Sun Gear	SUB FOR T357030, T216996 AND T212532, REQUIRES (3) T394706
14	T394702	1	Gear	Z = 79, SUB FOR T218792, REQUIRES T394699
15	40M7120	1	Snap Ring	-
16	AT385620	2	Tapered Roller Bearing	SUB FOR JD9157 AND JD9603
17	T359174	1	Housing	SUB FOR T267898, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546 PER FINAL DRIVE
17	T344461	5	Sprocket Segments	Not Illustrated, USE WITH T359174, AT466309, RM100139, AT466308 AND RM100138
17	T369154	5	Sprocket Segments	Recessed Sprocket Not Illustrated, USE WITH T359174, AT466309, RM100139, AT466308 AND RM100138
17	T354544	25	Screw	Not Illustrated, USE WITH T359174, AT466309, RM100139, AT466308 AND RM100138
17	T354546	25	Nut	Not Illustrated, USE WITH T359174, AT466309, RM100139, AT466308 AND RM100138
18	T427604	1	Planet Pinion Carrier	SUB FOR T196443
19	T372247	3	Pin	SUB FOR T200202
20	AT460585	1	Brake	SUB FOR AT352318
21	T201906	1	Housing	-
22	T373515	1	Gasket	SUB FOR T164624
23	T153832	1	O-Ring	-
24	T56467	16	Spring	-
25	T200272	1	Plate	-
26	T45901	1	Snap Ring	-
27	T200271	1	Piston	-
28	T152624	1	O-Ring	-
29	R81499	6	Plate	-
30	AT467275	6	Disk With Inner Spline	SUB FOR AT300740
31	AT460570	1	Hub	SUB FOR AT300034
32	34M7131	1	Spring Pin	4 X 50 mm
33	T200429	1	Plate	-
34	19M7835	4	Screw	M10 X 35
35	19M8610	22	Screw	M16 X 110
36	AT505275	1	Seal	SUB FOR AT450312 , AND AT353424
37	T200201	1	Hub	-
38	T369646	1	Ring Gear	SUB FOR T195761
39	T200197	1	Snap Ring	-
40	T200364	1	Plate	-
41	19M7493	12	Cap Screw	M12 X 40
42	T200412	1	O-Ring	-
43	DE18556	1	Thrust Bearing	-
44	T394706	3	Planet Pinion	SUB FOR T357031, T216995 AND T212531, REQUIRES T394704
45	19M9387	3	Screw	M16 X 120
46	19M8306	40	Screw	M12 X 50
47	T394699	1	Pinion Shaft	Z = 13, SUB FOR T218796, REQUIRES T394702
48	T369365	1	Shim	TK = 0.178 mm (0.007 in), SUB FOR T216314
49	T369366	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T216315
50	T369367	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T263699
51	T257941	1	Bearing Housing W/O Bearing	SUB FOR T203227
52	19M8637	8	Cap Screw	M10 X 40
53	T162018	1	Gasket	-
54	T153833	2	O-Ring	-
55	T78662	4	Drain Plug	-
56	U17409	4	O-Ring	-
57	25M3827	2	Groove Pin	3 X 8 mm
58	24M7345	8	Washer	13.500 X 24 X 2.500 mm
59	19M7908	8	Cap Screw	M12 X 110

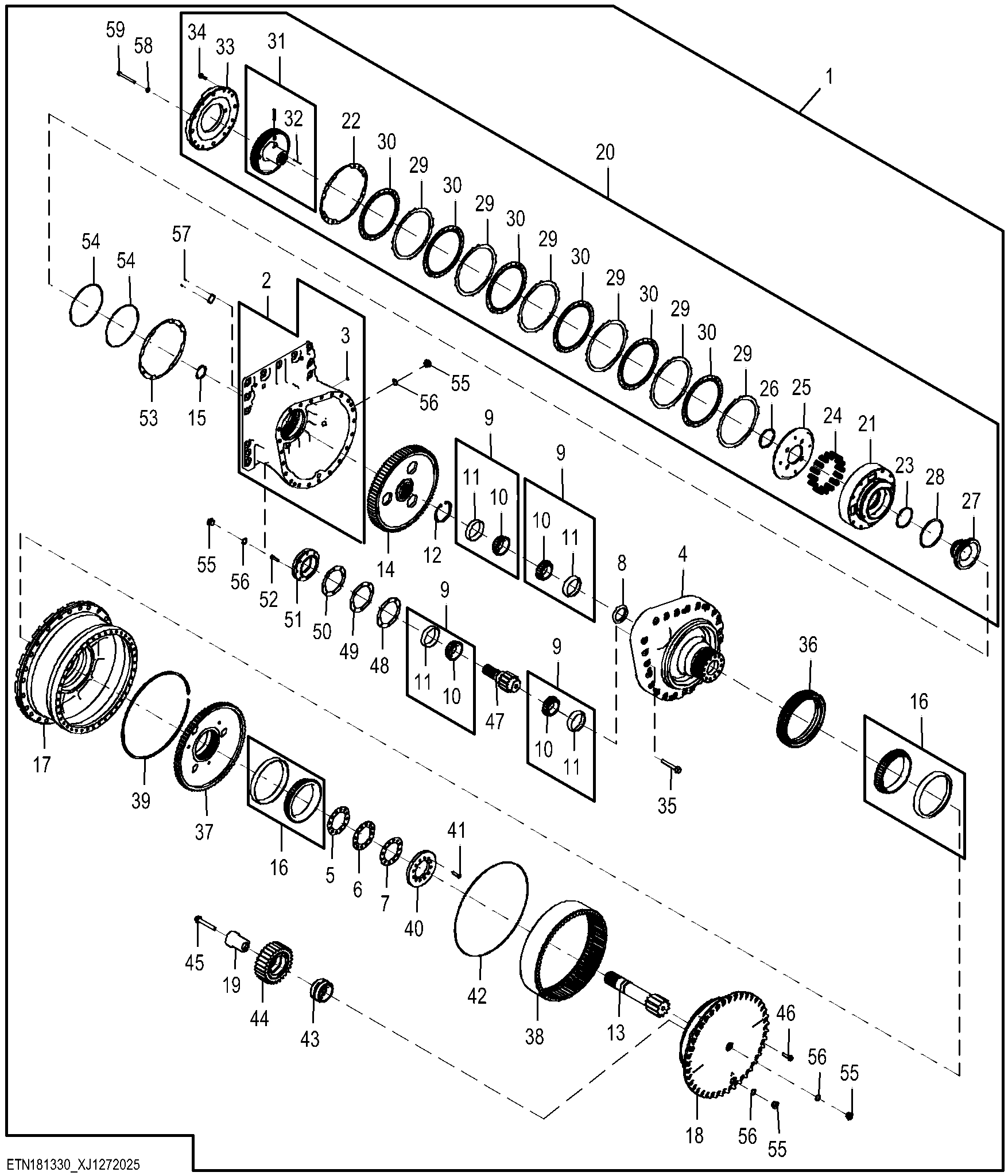

Final Drive Components, Standard Track, Long Track
