Final Drive Components, Low Ground Pressure (LGP) Track Frame

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200990	1	Drive Reman	RH, NLA; ORDER RM100143; REMAN FOR AT452050 AND AT352360, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546
1	AT466313	1	Drive	RH, SUB FOR AT452050, AT352360, AT450292 AND AT479176, REQUIRES (5) T369154 AND (25) T354544 AND (25) T354546
1	RM100142	1	Drive Reman	LH, REMAN FOR AT466312, AT450291 AND AT479175
1	PG200995	1	Drive Reman	LH, NLA; ORDER RM100142; REMAN FOR AT452049 AND AT352359, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546
1	RM100143	1	Drive Reman	RH, REMAN FOR AT466313, AT450292 AND AT479176
1	AT466312	1	Drive	LH, SUB FOR AT452049, AT352359, AT450291 AND AT479175, REQUIRES (5) T369154 AND (25) T354544 AND (25) T354546
2	AT462614	1	Housing	RH, SUB FOR T279464 AND T208513
2	AT462613	1	Housing	LH, SUB FOR T279465 AND T208675
3	H23836	1	Ball	SUB FOR R29194
4	T239901	1	Housing	-
5	AT461877	1	Seal	SUB FOR T216571
6	AT385620	2	Tapered Roller Bearing	-
7	AT505275	1	Seal	SUB FOR AT450312 AND AT353424
8	T359174	1	Housing	SUB FOR T267898, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546 PER FINAL DRIVE
8	T344461	10	Sprocket Segments	Not Illustrated, USE WITH T359174, AT466313, RM100143, AT466312 AND RM100142
8	T369154	10	Sprocket Segments	Recessed Sprocket Not Illustrated, USE WITH T359174, AT466313, RM100143, AT466312 AND RM100142
8	T354544	50	Screw	Not Illustrated, USE WITH T359174, AT466313, RM100143, AT466312 AND RM100142
8	T354546	50	Nut	Not Illustrated, USE WITH T359174, AT466313, RM100143, AT466312 AND RM100142
9	T427604	1	Planet Pinion Carrier	SUB FOR T196443
10	T372247	3	Pin	SUB FOR T200202
11	AT390577	4	Tapered Roller Bearing	-
12	JD8130	1	Bearing Cone	-
13	JD7446	1	Bearing Cup	-
14	T394704	1	Sun Gear	11 Tooth, SUB FOR T357030, T216996 AND T212532, REQUIRES (3) T394706
15	AT460585	1	Brake	SUB FOR AT352318
16	T201906	1	Housing	-
17	T373515	1	Gasket	SUB FOR T164624
18	T153832	1	O-Ring	-
19	T56467	16	Spring	-
20	T200272	1	Plate	-
21	T45901	1	Snap Ring	-
22	T200271	1	Piston	-
23	T152624	1	O-Ring	-
24	R81499	6	Plate	-
25	AT467275	6	Disk With Inner Spline	SUB FOR AT300740
26	AT460570	1	Hub	SUB FOR AT300034
27	34M7131	1	Spring Pin	4 X 50 mm
28	T200429	1	Plate	-
29	19M7835	4	Screw	M10 X 35
30	T200201	1	Hub	-
31	T200364	1	Plate	-
32	T369362	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T200797
33	T369363	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T200798
34	T369364	1	Shim	TK = 0.177 mm (0.007 in), SUB FOR T200799
35	19M7493	12	Cap Screw	M12 X 40
36	T369646	1	Ring Gear	Z = 70, SUB FOR T195761
37	T200197	1	Snap Ring	-
38	T200412	1	O-Ring	-
39	DE18556	3	Thrust Bearing	-
40	T394706	3	Planet Pinion	Z = 28, SUB FOR T357031, T216995 AND T212531, REQUIRES T394704
41	19M9387	3	Screw	M16 X 120
42	19M8306	40	Screw	M12 X 50
43	19M7847	22	Screw	M16 X 180
44	T200698	1	Snap Ring	-
45	T394702	1	Gear	Z = 79, SUB FOR T218792, REQUIRES T394701
46	T394701	1	Pinion Shaft	Z = 13, SUB FOR T218794, REQUIRES T394702
47	T369365	1	Shim	TK = 0.177 mm (0.007 in), SUB FOR T216314
48	T369366	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T216315
49	T369367	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T263699
50	T257941	1	Bearing Housing W/O Bearing	-
51	19M8637	8	Cap Screw	M10 X 40
52	T162018	1	Gasket	-
53	T153833	2	O-Ring	-
54	40M7120	1	Snap Ring	-
55	T78662	4	Drain Plug	-
56	U17409	4	O-Ring	-
57	25M3827	2	Groove Pin	3 X 8 mm
58	24M7345	8	Washer	13.500 X 24 X 2.500 mm
59	19M7908	8	Cap Screw	M12 X 110

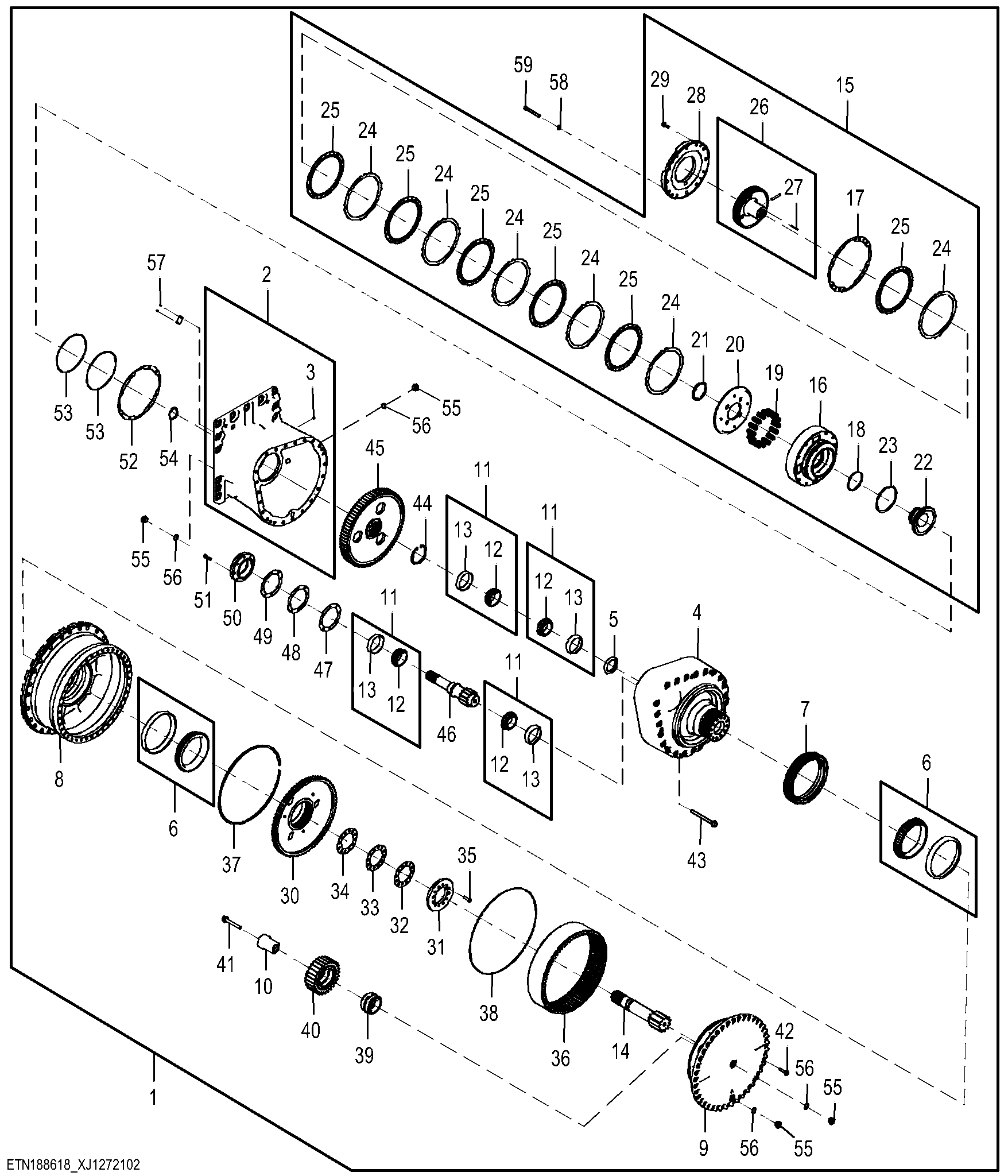

Final Drive Components, Low Ground Pressure (LGP) Track Frame
