Открытый узел

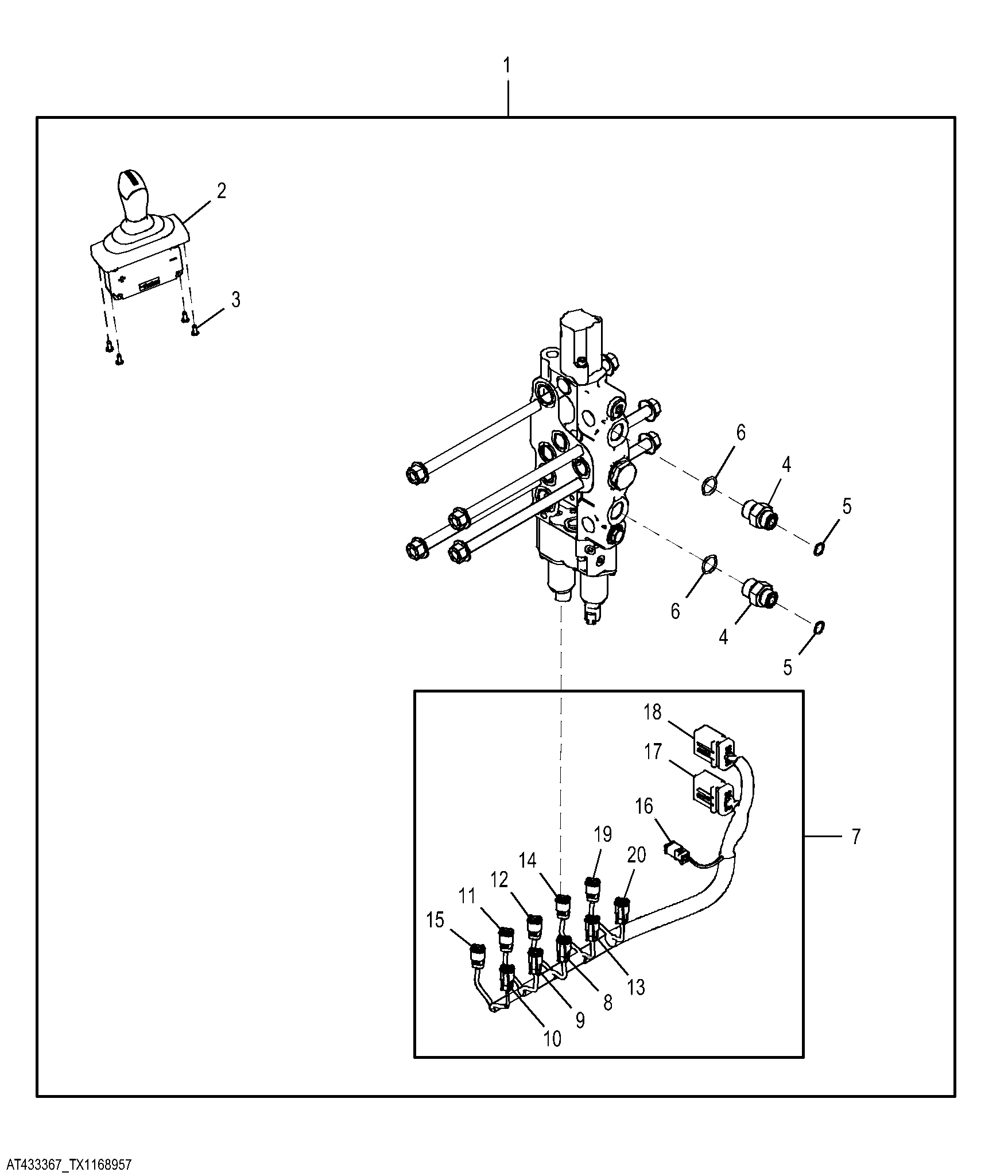

Auxiliary Electrohydraulic Valve and Control Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT433367	1	Valve Kit	Whole Goods
2	AT339580	1	Multi-Functional Controller	Joystick
3	37M7181	4	Screw	-
4	38H1175	2	Adapter Fitting	-
5	T77857	2	O-Ring	-
6	U12547	2	O-Ring	-
7	AT446148	1	Wiring Harness	Electrohydraulic Control Valve Wiring Harness
8	57M8021	1	Electrical Connector Assy	Lift Port B Solenoid, Y21
8	R78065	2	Elec. Connector Terminal	-
8	57M8022	1	Elec.Connect Locking Device	-
9	57M8022	1	Elec.Connect Locking Device	-
9	R78065	2	Elec. Connector Terminal	-
9	57M8021	1	Electrical Connector Assy	Tilt Port B Solenoid, Y23
10	57M8021	1	Electrical Connector Assy	Angle Port B Solenoid, Y26
10	R78065	2	Elec. Connector Terminal	-
10	57M8022	1	Elec.Connect Locking Device	-
11	57M8021	1	Electrical Connector Assy	Tilt Port A Solenoid, Y24
11	R78065	2	Elec. Connector Terminal	-
11	57M8022	1	Elec.Connect Locking Device	-
12	57M8021	1	Electrical Connector Assy	Lift Port A Solenoid, Y22
12	R78065	2	Elec. Connector Terminal	-
12	57M8022	1	Elec.Connect Locking Device	-
13	57M8021	1	Electrical Connector Assy	Auxiliary Port B Solenoid, Y28
13	57M8022	1	Elec.Connect Locking Device	-
13	R78065	2	Elec. Connector Terminal	-
14	57M8021	1	Electrical Connector Assy	Auxiliary Port A Solenoid, Y27
14	R78065	2	Elec. Connector Terminal	-
14	57M8022	1	Elec.Connect Locking Device	-
15	57M8021	1	Electrical Connector Assy	Angle Port A Solenoid, Y25
15	R78065	2	Elec. Connector Terminal	-
15	57M8022	1	Elec.Connect Locking Device	-
16	57M8021	1	Electrical Connector Assy	Hydraulic Enable Solenoid, Y9
16	R78065	2	Elec. Connector Terminal	-
16	57M8022	1	Elec.Connect Locking Device	-
17	57M9768	1	Elec. Connector Housing	Vehicle Harness To Control Valve Harness Connector 1, X43
17	R78066	12	Elec. Connector Terminal	-
18	57M9769	1	Elec. Connector Housing	Vehicle Harness To Control Valve Harness Connector 2, X44
18	R78066	10	Elec. Connector Terminal	-
18	R78069	2	Elec. Connector Cavity Plug	-
19	57M8021	1	Electrical Connector Assy	Auxiliary Port A Solenoid, Y29
19	R78065	2	Elec. Connector Terminal	-
19	57M8022	1	Elec.Connect Locking Device	-
20	57M8021	1	Electrical Connector Assy	Auxiliary Port B Solenoid, Y30
20	R78065	2	Elec. Connector Terminal	-
20	57M8022	1	Elec.Connect Locking Device	-

Auxiliary Electrohydraulic Valve and Control Kit

Нет текстового описания
