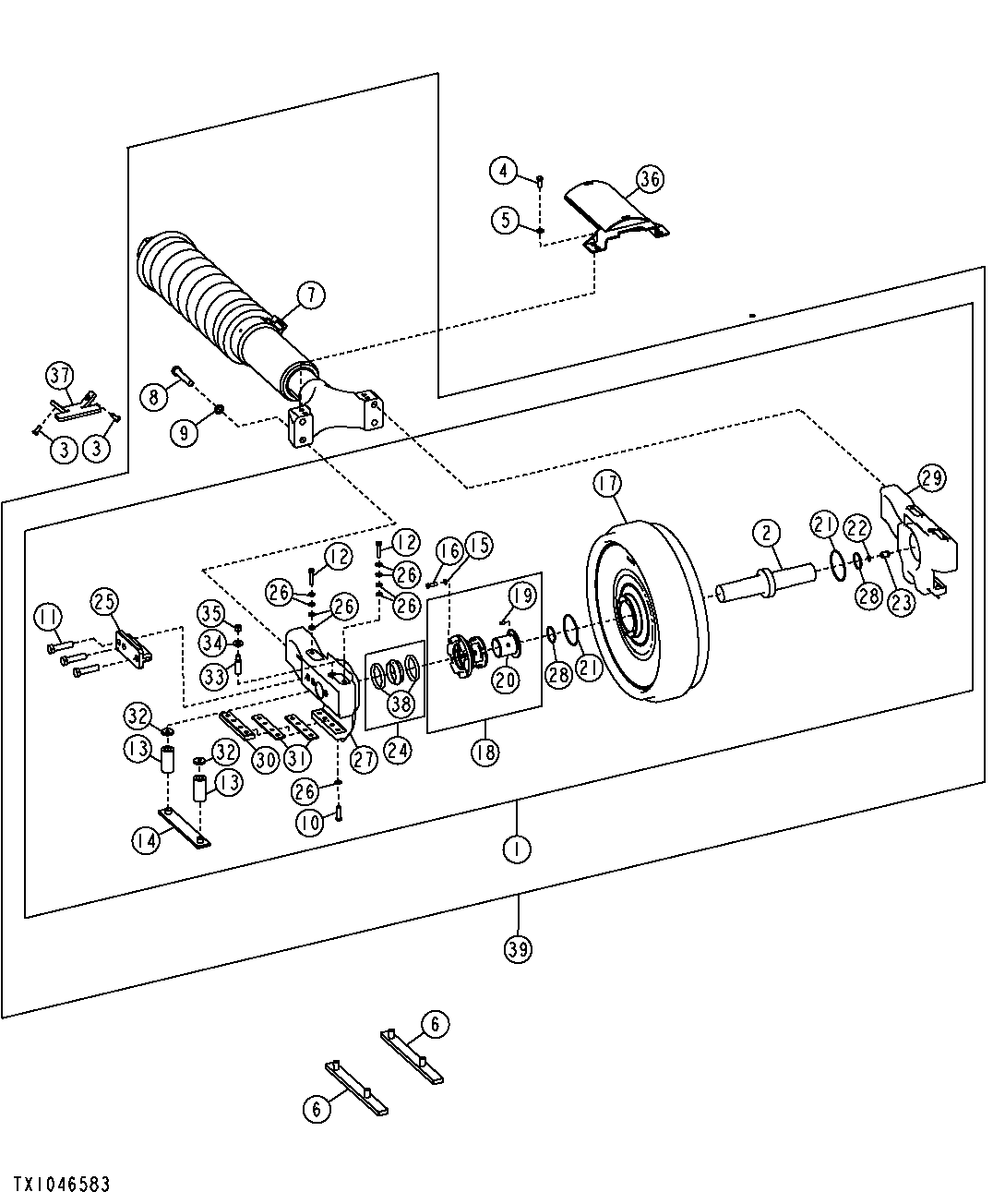

Track Chain Idler, Brackets and Cover

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT305808	1	Track Idler	-
2	T204924	1	Shaft	-
3	19M7872	2	Cap Screw	M12 X 25
4	19M8011	4	Cap Screw	M12 X 30
5	24M7345	4	Washer	13.500 X 24 X 2.500 mm
6	AT226968	2	Wear Plate	-
7	AT406974	1	Spring Assembly	Components on Seperate Page, SUB FOR AT313629
8	19M9136	4	Cap Screw	M20 X 110
9	24M7396	4	Washer	21 X 34 X 3 mm
10	19M7496	8	Cap Screw	M12 X 45
11	19M9414	3	Cap Screw	M20 X 80
12	19M9315	2	Cap Screw	M12 X 50
13	AT274298	2	Bushing	Rubber Shock Absorber
14	AT277938	1	Wear Plate	Wear Strip
15	12H304	6	Lock Washer	3/8"
16	19H3239	6	Cap Screw	3/8" X 1-1/4"
17	AT305809	1	Track Idler	-
18	AT51401	1	Bushing	Bushing Case with Bushing, INCLUDES T47858 AND T112290
19	T47858	1	Pin	-
20	AT113179	1	Bushing	-
21	U10746	2	O-Ring	-
22	P50883	1	Ring	-
23	T47861	1	Pipe Plug	-
24	AT305855	1	Seal	-
25	T201201	1	Plate	-
26	T20168	12	Washer	-
27	T204134	1	Bracket	RH
28	T139636	2	O-Ring	-
29	T204135	1	Bracket	LH
30	T250445	1	Wear Plate	-
31	T204101	2	Strap	-
32	T204320	2	Washer	-
33	T204693	1	Dowel Pin	Idler
34	T204696	1	Washer	-
35	T204697	1	Nut	-
36	T347716	1	Cover	SUB FOR AT315317
37	AT408513	1	Rotator Kit	SUB FOR T233388 OR AT376636
37	AT352230	1	Rotator Kit	Anti-Rotation, INCLUDES AT403972
38	T204232	1	O-Ring	-
39	AT406975	2	Track Idler	SUB FOR AT313656

Track Chain Idler, Brackets and Cover
