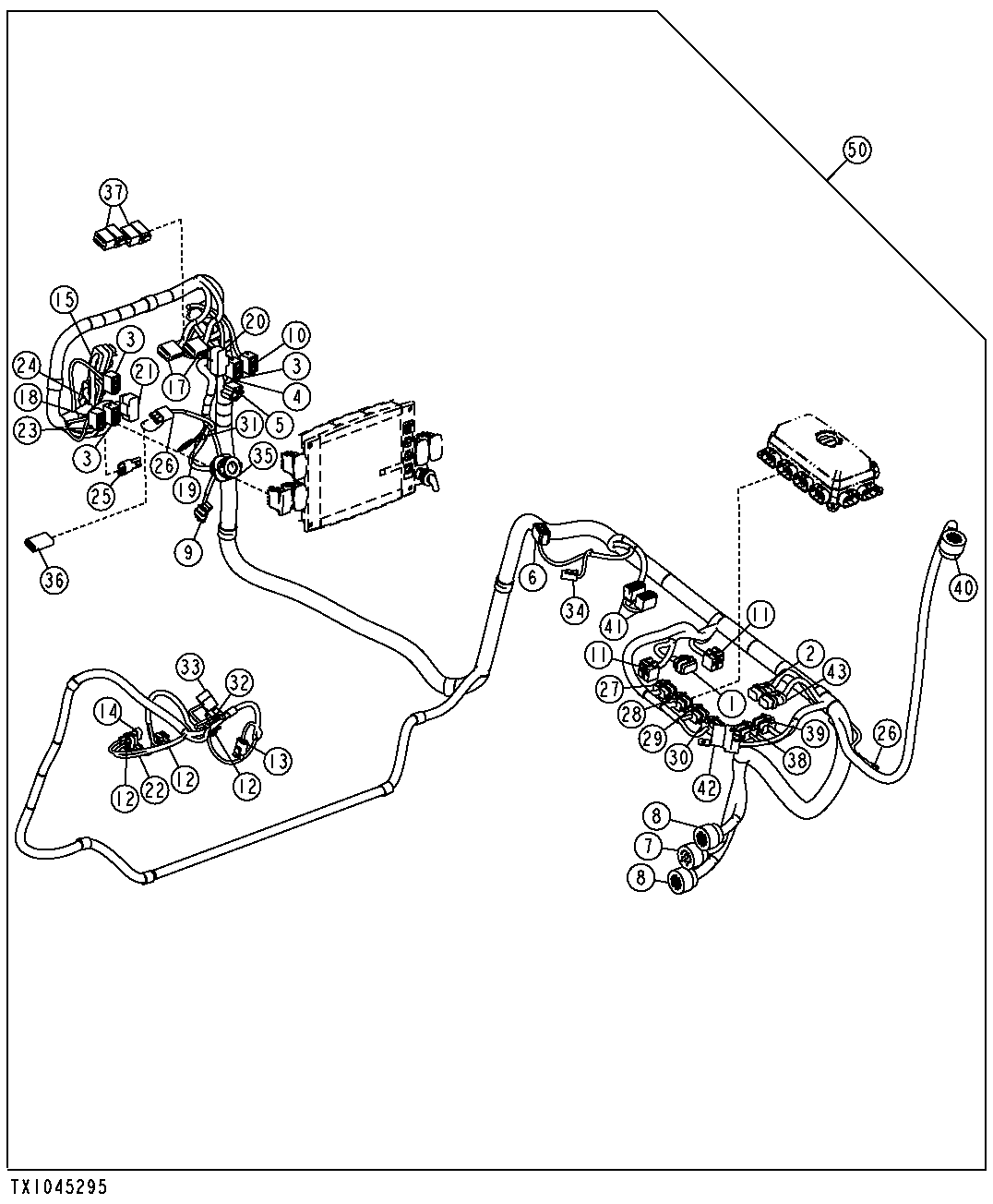

Operator Station Wiring Harness (Armored)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7297	4	Elec. Connector Terminal	-
1	57M8986	1	Elec. Connector Housing	Blue
1	R78059	1	Elec. Connector Seal	Green
1	R78063	4	Elec. Connector Seal	Gray
1	57M7491	1	Elec. Connector Terminal	-
1	R78064	3	Elec. Connector Cavity Plug	-
2	57M8966	1	Elec. Connector Terminal	-
2	57M8844	1	Elec.Connect Locking Device	-
2	57M8967	2	Elec. Connector Seal	-
2	57M8982	1	Elec. Connector Housing	Gray
3	-	3	Part 11	Work Light Switch
3	57M7429	2	Elec. Connector Terminal	Start Aid
3	57M7511	2	Elec. Connector Terminal	-
3	57M7880	6	Elec. Connector Terminal	-
4	R78053	1	Electrical Connector Assy	Monitor Alarm
4	57M7251	1	Elec. Connector Terminal	-
4	R78059	1	Elec. Connector Seal	Green
5	57M9200	1	Elec. Connector Terminal	(ST)
5	57M9461	1	Elec. Connector Terminal	(IGN1)
5	57M9199	1	Elec. Connector Terminal	(ACC2)
5	R65595	1	Elec. Connector Terminal	(BAT)
5	L38138	1	Elec. Connector Housing	Key Switch
5	U46663	1	Elec. Connector Terminal	(ACC1)
6	-	1	Part 24	Pilot Controller Enable Switch
6	57M7880	1	Elec. Connector Terminal	-
6	57M7429	1	Elec. Connector Terminal	-
7	R78069	1	Elec. Connector Cavity Plug	-
7	R78067	1	Elec. Connector Terminal	-
7	57M7536	1	Elec. Connector Terminal	-
7	57M8110	1	Electrical Connector Assy	Transmission Bulkhead
8	57M7667	2	Electrical Connector Assy	Bulkhead
8	-	61	Part 32	-
8	R78069	1	Elec. Connector Cavity Plug	-
9	57M7255	1	Elec. Connector Housing	Decelerator Sensor
9	R104846	3	Elec. Connector Terminal	-
9	57M9883	3	Elec. Connector Cable Seal	Red
10	57M7511	1	Elec. Connector Terminal	-
10	57M7880	3	Elec. Connector Terminal	-
10	-	1	Part 37	Work Light Switch
11	57M9362	2	Elec. Connector Housing	(ACC RELAY 3 & 3)
11	57M7512	4	Elec. Connector Terminal	-
11	57M7880	2	Elec. Connector Terminal	-
11	57M7511	2	Elec. Connector Terminal	-
12	57M7255	3	Elec. Connector Housing	-
12	R104846	9	Elec. Connector Terminal	-
12	57M9883	9	Elec. Connector Cable Seal	Red
13	RE12363	1	Electrical Connector Assy	Neutral Start
13	57M7251	2	Elec. Connector Terminal	-
13	R78059	2	Elec. Connector Seal	-
14	57M7256	1	Elec. Connector Housing	Horn Switch
14	R104919	2	Elec. Connector Terminal	-
14	57M9883	2	Elec. Connector Cable Seal	Red
15	57M7771	7	Elec. Connector Terminal	-
15	57M9368	1	Elec. Connector Housing	(TCU)
15	F055290	17	Pin	-
17	57M9459	2	Elec. Connector Housing	5 V
17	-	22	Part 57	-
17	R78069	2	Elec. Connector Cavity Plug	-
18	57M8018	1	Electrical Connector Assy	Can Terminator
19	57M9711	1	Elec. Connector Terminal	12 V, Power Port
20	57M8300	9	Elec. Connector Terminal	-
20	57M9884	9	Elec. Connector Cable Seal	Blue
20	57M9446	7	Elec. Connector Seal	-
20	57M8484	1	Elec. Connector Housing	Can Monitor
21	57M8484	1	Elec. Connector Housing	Can Monitor
21	57M8300	8	Elec. Connector Terminal	-
21	57M9446	6	Elec. Connector Seal	-
21	57M9884	8	Elec. Connector Cable Seal	Blue
22	57M9883	3	Elec. Connector Cable Seal	-
22	57M7252	3	Elec. Connector Terminal	-
22	57M7257	1	Elec. Connector Housing	Park Lock Lever Switch
23	-	1	Part 72	Reverse Fan Switch
23	57M7511	2	Elec. Connector Terminal	-
23	57M7880	2	Elec. Connector Terminal	-
24	57M9369	1	Elec. Connector Housing	(TCU)
24	F055290	21	Pin	-
24	57M7771	3	Elec. Connector Terminal	-
25	57M8131	1	Electronic Terminator	-
26	RE12364	1	Electrical Connector Assy	-
26	57M7303	3	Electrical Connector Assy	-
26	R78059	3	Elec. Connector Seal	Green
27	57M8985	1	Elec. Connector Housing	Green
27	57M7297	4	Elec. Connector Terminal	-
27	57M7491	2	Elec. Connector Terminal	-
27	R78064	2	Elec. Connector Cavity Plug	-
27	R78063	6	Elec. Connector Seal	Gray
28	R78064	1	Elec. Connector Cavity Plug	-
28	R78063	2	Elec. Connector Seal	Gray
28	R78059	5	Elec. Connector Seal	-
28	57M7297	7	Elec. Connector Terminal	-
28	57M8990	1	Elec. Connector Housing	Brown
29	57M8984	1	Elec. Connector Housing	Gray
29	57M7297	3	Elec. Connector Terminal	-
29	R78064	4	Elec. Connector Cavity Plug	-
29	57M7491	1	Elec. Connector Terminal	-
29	R78063	2	Elec. Connector Seal	Gray
29	R78059	2	Elec. Connector Seal	Green
30	57M8988	1	Elec. Connector Housing	Red
30	57M7297	4	Elec. Connector Terminal	-
30	R78064	4	Elec. Connector Cavity Plug	-
30	R78059	1	Elec. Connector Seal	Green
30	R78063	3	Elec. Connector Seal	Gray
31	57M9451	1	Elec. Connector Terminal	Cap
31	R78069	4	Elec. Connector Cavity Plug	-
31	57M9183	1	Elec. Connector Housing	Service Advisor
31	-	5	Part 104	-
32	57M7255	1	Elec. Connector Housing	Throttle Switch
32	-	1	Part 108	-
32	57M9883	3	Elec. Connector Cable Seal	-
33	57M9458	1	Elec. Connector Housing	Warm Up Indicator
33	57M7511	2	Elec. Connector Terminal	-
34	57M8021	1	Electrical Connector Assy	Blade Detent
35	57M9183	1	Elec. Connector Housing	Service Advisor
35	-	5	Part 114	-
35	R78069	4	Elec. Connector Cavity Plug	-
35	57M9358	1	Elec. Connector Accessory	-
36	R78054	1	Electrical Connector Assy	-
37	57M9450	1	Elec. Connector Housing	-
38	R78059	1	Elec. Connector Seal	Green
38	R78063	2	Elec. Connector Seal	Gray
38	57M7297	3	Elec. Connector Terminal	-
38	57M8989	1	Elec. Connector Housing	Orange
38	R78064	5	Elec. Connector Cavity Plug	-
39	57M8983	1	Elec. Connector Housing	Black
39	57M7297	5	Elec. Connector Terminal	-
39	R78064	3	Elec. Connector Cavity Plug	-
39	R78063	5	Elec. Connector Seal	Gray
40	R78069	12	Elec. Connector Cavity Plug	-
40	-	19	Part 129	-
40	57M7667	1	Electrical Connector Assy	Roof Connector
41	-	2	Part 131	Hi / Low Winch Speed Switch
41	57M7429	4	Elec. Connector Terminal	-
42	57M9362	1	Elec. Connector Housing	Winch Relay
42	57M7429	4	Elec. Connector Terminal	-
43	57M8981	1	Elec. Connector Housing	-
43	57M8844	2	Elec.Connect Locking Device	-
43	57M8967	2	Elec. Connector Seal	-
50	AT359132	1	Wiring Harness	(NLA) (ORDER 398538)

Operator Station Wiring Harness (Armored)
