Открытый узел

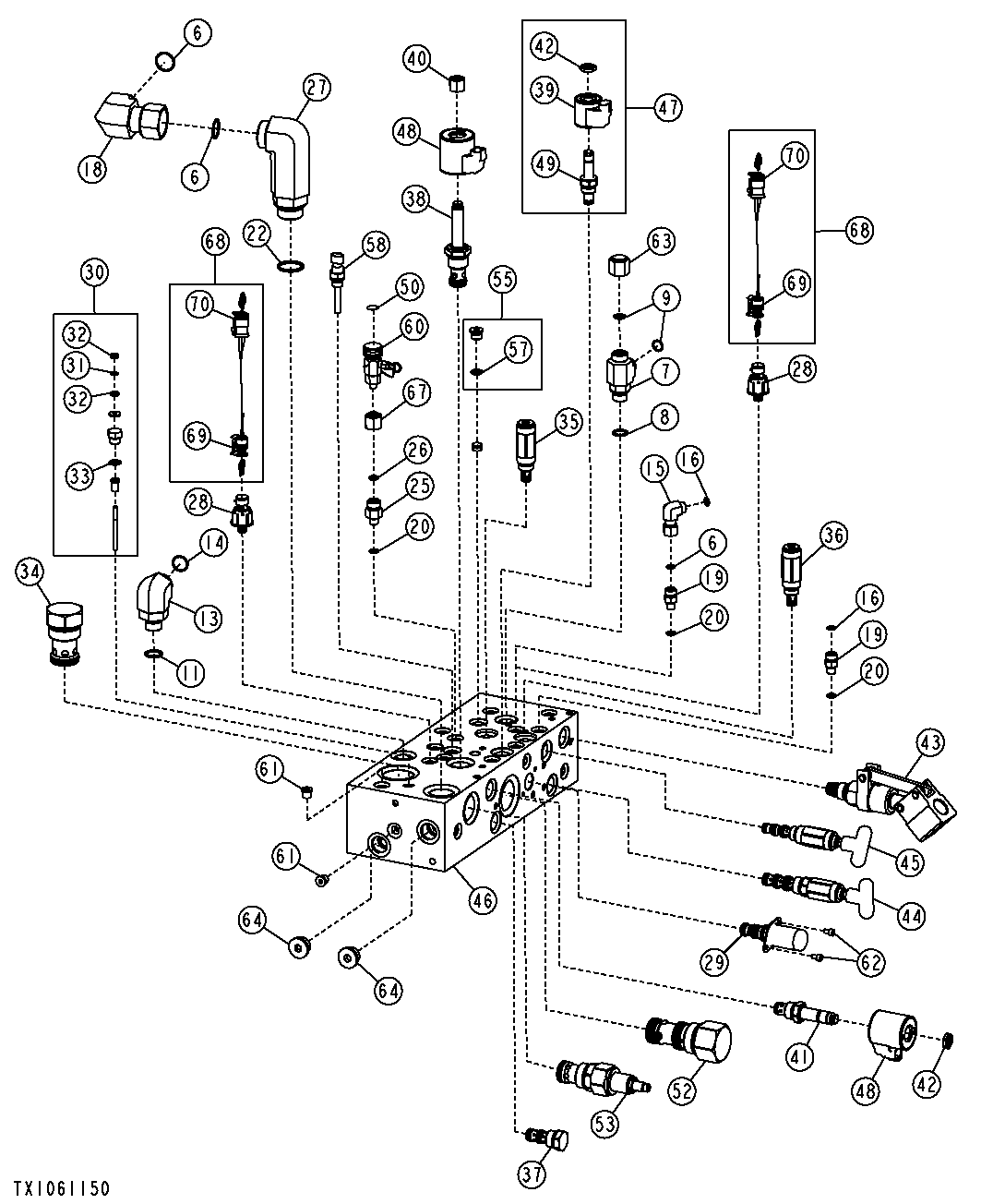

Hydrostatic Integrated Control Valve (Front And Left) (173642 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
6	T76938	2	O-Ring	-
7	38H1024	1	Tee Fitting	-
8	R26375	1	O-Ring	-
9	T77857	2	O-Ring	-
11	R26906	1	O-Ring	-
13	38H1014	1	Elbow Fitting	-
14	T77858	1	O-Ring	-
15	38H1093	1	Elbow Fitting	-
16	T77814	3	O-Ring	-
18	38H1098	1	Elbow Fitting	-
19	38H1159	2	Adapter Fitting	-
20	R28782	3	O-Ring	-
22	R29936	1	O-Ring	-
25	38H1309	1	Adapter Fitting	-
26	T77613	1	O-Ring	-
27	38H1493	1	Elbow Fitting	-
28	AT430039	2	Pressure Sensor	SUB FOR AT355360
28	R28782	1	O-Ring	-
29	AT224873	1	Seal Kit	-
29	AT303799	1	Valve	-
30	AT305595	1	Pressure Switch	-
31	12M7060	1	Washer	5.300 mm
32	14H778	2	Nut	0.190"
33	R26448	1	O-Ring	-
34	AT323730	1	Valve	Charge Filter Bypass Valve
34	AT327153	1	Seal Kit	-
35	AT307211	1	Pressure Relief Valve	Hand Pump Relief
35	AT327149	1	Seal Kit	-
36	AT307212	1	Pressure Relief Valve	Brake Pump Off Relief Valve
36	AT327149	1	Seal Kit	-
37	AT307214	1	Valve	Brake Shuttle Valve
37	AT327152	1	Seal Kit	-
38	AT308123	1	Solenoid Valve	Park Brake
38	AT327145	1	Seal Kit	-
39	AT423339	1	Solenoid Valve Coil	SUB FOR AT333809
40	T225292	1	Nut	-
41	AT308122	1	Solenoid Valve	Park Brake
41	AT327146	1	Seal Kit	-
42	T225293	2	Nut	-
43	AT474166	1	Pump	Hand Pump For Cab Tilt, SUB FOR AT310725 AND AT365803
43	AT327146	1	Seal Kit	-
44	AT310789	1	Valve	Cab /Brake Selector Valve
44	AT327150	1	Seal Kit	-
45	AT310790	1	Valve	Cab Up /Down Selector Valve
45	AT327151	1	Seal Kit	-
46	AT326989	1	Manifold	-
47	AT317088	1	Valve	Tank Bypass Valve Pilot
47	AT327149	1	Seal Kit	-
48	AT423342	2	Solenoid Valve Coil	SUB FOR AT333813
49	AT313500	1	Valve	Tank Bypass Valve Pilot
50	T217791	1	Label	-
52	AT317092	1	Valve	Tank Bypass Valve
52	AT327148	1	Seal Kit	-
53	AT486606	1	Valve	Neutral Charge Relief
53	AT327143	1	Seal Kit	-
53	AT323597	1	Valve	Neutral Charge Relief, ORDER AT486606
55	AT49216	1	Fitting Plug	-
57	T70177	1	O-Ring	-
58	RE65836	1	Coolant Temperature Sensor	TEMPERATURE SENSOR
59	51M7041	1	O-Ring	11.300 X 2.200 mm
60	AT342580	1	Valve	-
61	T105368	10	Fitting Plug	-
62	T204128	2	Screw	-
63	38H1416	1	Fitting	-
64	T58477	2	Fitting	-
67	T234547	1	Adapter Fitting	-
68	AT363848	2	Sensor Wiring Harness	-
69	57M7796	1	Elec. Connector Housing	-
69	R104701	1	Elec. Connector Terminal	-
69	57M8019	1	Elec. Connector Terminal	-
70	57M8637	1	Elec. Connector Housing	-
70	57M8019	1	Elec. Connector Terminal	-

Hydrostatic Integrated Control Valve (Front And Left) (173642 - )
