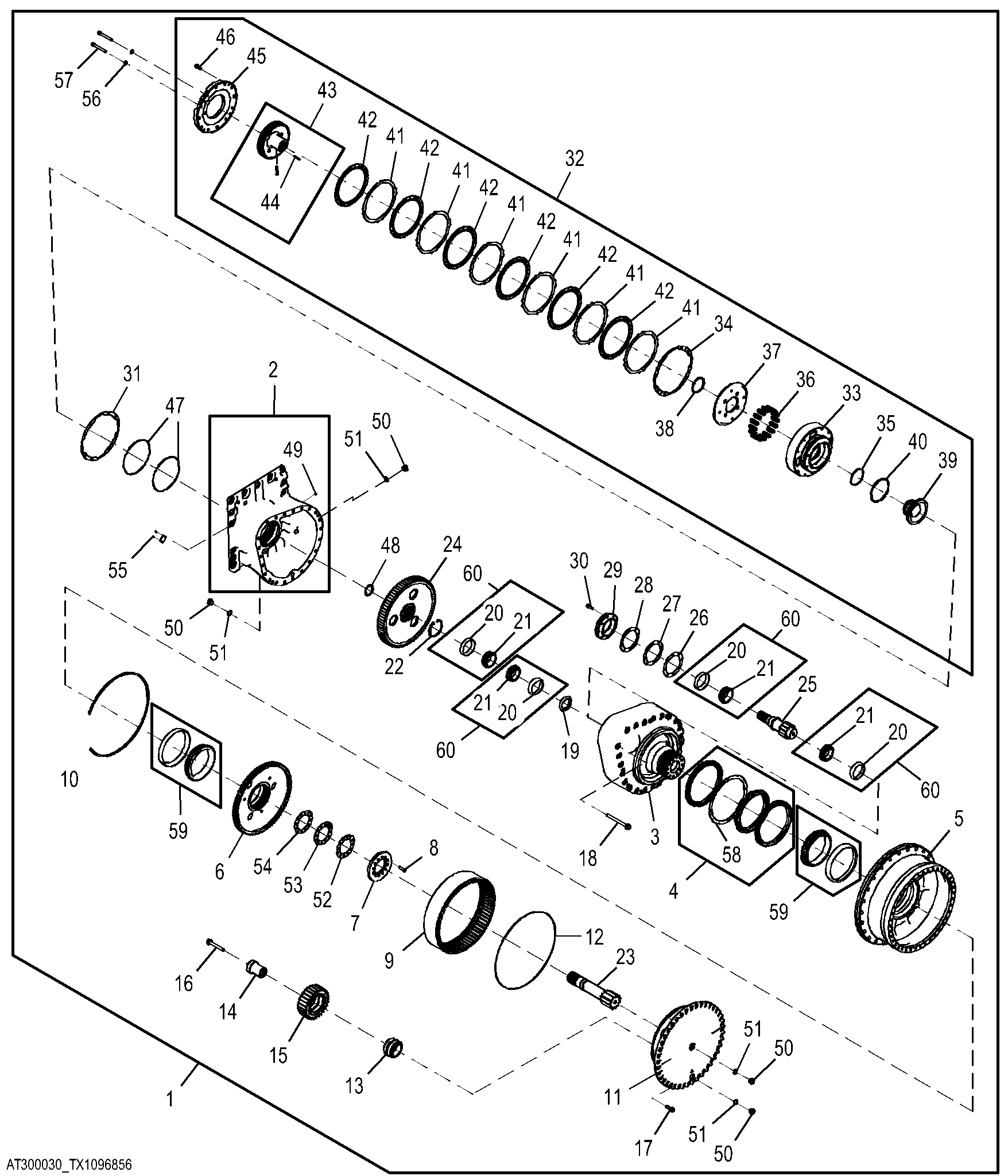

Final Drive Components, Wide Track, Wide Long Track (165124 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200989	1	Drive Reman	RH, NLA; ORDER RM100141; REMAN FOR AT452048 AND AT352358, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546
1	AT466311	1	Drive	RH, SUB FOR AT452048, AT338093, AT352358, AT450290 AND AT479174, REQUIRES (5) T369154 AND (25) T354544 AND (25) T354546
1	RM100140	1	Drive Reman	LH, REMAN FOR AT466310, AT450289 AND AT479173
1	PG200994	1	Drive Reman	LH, NLA; ORDER RM100140; REMAN FOR AT452047 AND AT352357, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546
1	RM100141	1	Drive Reman	RH, REMAN FOR AT466311, AT450290 AND AT479174
1	AT466310	1	Drive	LH, SUB FOR AT452047, AT338099, AT352357, AT450289 AND AT479173, REQUIRES (5) T369154 AND (25) T354544 AND (25) T354546
2	AT528332	1	Housing	LH, SUB FOR AT462611, T279467 AND T209107
2	AT528333	1	Housing	RH, SUB FOR AT462612, T279466 AND T208697
3	T200277	1	Housing	-
3	T239901	1	Housing	-
4	AT374827	1	Seal Kit	Metal Face Seal and Spacer Rings, INCLUDES T263325, SUB FOR AT353065 AND AT368651
4	AT505275	1	Seal	SUB FOR AT450312 AND AT353424
5	T208894	1	Housing	-
5	T359174	1	Housing	SUB FOR T267898 AND T239202, REQUIRES (5) T344461 OR (5) T369154 AND (25) T354544 AND (25) T354546 PER FINAL DRIVE
5	T344461	5	Sprocket Segments	Not Illustrated, USE WITH T359174, AT466311, RM100141, AT466310 AND RM100140
5	T369154	5	Sprocket Segments	Recessed Sprocket Not Illustrated, USE WITH T359174, AT466311, RM100141, AT466310 AND RM100140
5	T354544	25	Screw	Not Illustrated, USE WITH T359174, AT466311, RM100141, AT466310 AND RM100140
5	T354546	25	Nut	Not Illustrated, USE WITH T359174, AT466311, RM100141, AT466310 AND RM100140
6	T200201	1	Hub	-
7	T200364	1	Plate	-
8	19M7493	12	Cap Screw	M12 X 40
9	T369646	1	Ring Gear	Z = 70, SUB FOR T195761
10	T200197	1	Snap Ring	-
11	T427604	1	Planet Pinion Carrier	SUB FOR T196443
12	T200412	1	O-Ring	-
13	DE18556	3	Thrust Bearing	-
14	T372247	3	Pin	SUB FOR T200202
15	T394706	3	Planet Pinion	Z = 28, SUB FOR T357031, T216995 AND T212531, REQUIRES T394704
16	19M9387	3	Screw	M16 X 120
17	19M8306	40	Screw	M12 X 50
18	19M7847	22	Screw	M16 X 180
19	AT461877	1	Seal	SUB FOR T216571
20	JD7446	1	Bearing Cup	-
21	JD8130	1	Bearing Cone	-
22	T200698	1	Snap Ring	-
23	T394704	1	Sun Gear	11 Tooth, SUB FOR T357030, T216996 AND T212532, REQUIRES (3) T394706
24	T394702	1	Gear	Z = 79, SUB FOR T218792, REQUIRES T394700
25	T394700	1	Pinion Shaft	Z = 13, SUB FOR T218793, REQUIRES T394702
26	T369365	1	Shim	TK = 0.178 mm (0.007 in), SUB FOR T216314
27	T369366	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T216315
28	T369367	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T263699
29	T257941	1	Bearing Housing W/O Bearing	SUB FOR T203227
30	19M8637	8	Cap Screw	M10 X 40
31	T162018	1	Gasket	-
32	AT460585	1	Brake	SUB FOR AT352318
33	T201906	1	Housing	-
34	T373515	1	Gasket	SUB FOR T164624
35	T153832	1	O-Ring	-
36	T56467	16	Spring	-
37	T200272	1	Plate	-
38	T45901	1	Snap Ring	-
39	T200271	1	Piston	-
40	T152624	1	O-Ring	-
41	R81499	6	Plate	-
42	AT467275	6	Disk With Inner Spline	SUB FOR AT300740
43	AT460570	1	Hub	SUB FOR AT300034
44	34M7131	1	Spring Pin	4 X 50 mm
45	T200429	1	Plate	-
46	19M7835	4	Screw	M10 X 35
47	T153833	2	O-Ring	-
48	40M7120	1	Snap Ring	-
49	H23836	1	Ball	SUB FOR R29194
50	T78662	4	Drain Plug	-
51	U17409	4	O-Ring	-
52	T369362	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T200797
53	T369363	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T200798
54	T369364	1	Shim	TK = 0.178 mm (0.007 in), SUB FOR T200799
55	25M3827	2	Groove Pin	3 X 8 mm
56	24M7345	8	Washer	13.500 X 24 X 2.500 mm
57	19M7908	8	Cap Screw	M12 X 110
58	T263325	1	Disk	3.02 mm (0.119 in), Ring
59	AT385620	2	Tapered Roller Bearing	SUB FOR JD9603 AND JD9157
60	AT390577	4	Tapered Roller Bearing	-

Final Drive Components, Wide Track, Wide Long Track (165124 - )

Нет текстового описания
