Открытый узел

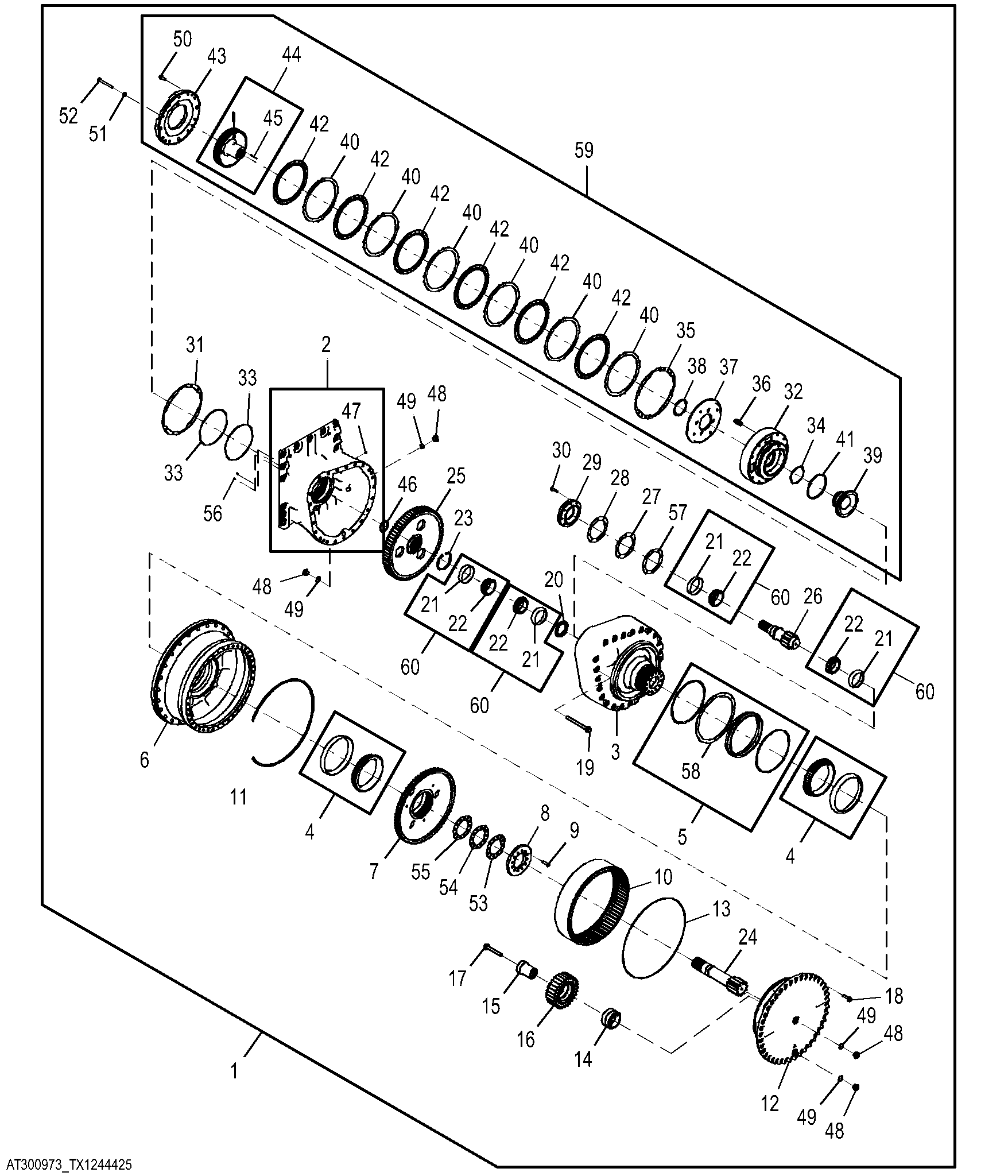

Final Drive Components, Wide Track, Wide Long Track ( - 165123)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200208	1	Drive Reman	RH, REMAN FOR AT300642
1	AT300642	1	Drive	RH, NLA, ORDER PG200208
1	PG200213	1	Drive Reman	LH, REMAN FOR AT300973
1	AT300973	1	Drive	LH, NLA, ORDER PG200213
2	AT528333	1	Housing	RH, SUB FOR AT462612, T279466 AND T208697
2	AT528332	1	Housing	LH, SUB FOR AT462611, T279467 AND T209107
3	T200277	1	Housing	-
4	AT385620	2	Tapered Roller Bearing	SUB FOR JD9157 AND JD9603
5	AT374827	1	Seal Kit	Metal Face Seal and Spacer Rings, INCLUDES T263325, SUB FOR AT353065 AND AT368651
6	T208894	1	Housing	-
7	T200201	1	Hub	-
8	T200364	1	Plate	-
9	19M7493	12	Cap Screw	M12 X 40
10	T369646	1	Ring Gear	SUB FOR T195761
11	T200197	1	Snap Ring	-
12	T427604	1	Planet Pinion Carrier	SUB FOR T196443
13	T200412	1	O-Ring	-
14	DE18556	3	Thrust Bearing	-
15	T372247	3	Pin	SUB FOR T200202
16	T394706	3	Planet Pinion	SUB FOR T216995, T212531 AND T357031, REQUIRES T394704
17	19M9387	3	Screw	M16 X 120
18	19M8306	40	Screw	M12 X 50
19	19M7847	22	Screw	M16 X 180
20	AT461877	1	Seal	SUB FOR T216571
21	JD7446	1	Bearing Cup	-
22	JD8130	1	Bearing Cone	-
23	T200698	1	Snap Ring	-
24	T394704	1	Sun Gear	SUB FOR T216996, T212532 AND T357030, REQUIRES (3) T394706
25	T141823	1	Gear	Z = 73, USE WITH T215927
25	T394702	1	Gear	Z = 79, SUB FOR T218792
26	T215927	1	Pinion Shaft	Z = 12, USE WITH T141823
26	T394700	1	Pinion Shaft	Z = 13, USE WITH T394702; SUB FOR T218793
27	T369365	1	Shim	TK = 0.178 mm (0.007 in), SUB FOR T216314
28	T369366	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T216315
29	T257941	1	Bearing Housing W/O Bearing	SUB FOR T203227
30	19M8637	8	Cap Screw	M10 X 40
31	T162018	1	Gasket	-
32	T201906	1	Housing	-
33	T153833	2	O-Ring	-
34	T153832	1	O-Ring	-
35	T373515	1	Gasket	SUB FOR T164624
36	T56467	16	Spring	-
37	T200272	1	Plate	-
38	T45901	1	Snap Ring	-
39	T200271	1	Piston	-
40	R81499	6	Plate	-
41	T152624	1	O-Ring	-
42	AT467275	6	Disk With Inner Spline	SUB FOR AT300740
43	T200429	1	Plate	-
44	AT460570	1	Hub	Brake Hub Assembly, SUB FOR AT300034
45	34M7131	1	Spring Pin	4 X 50 mm
46	40M7120	1	Snap Ring	-
47	R29194	1	Ball	-
48	T78662	4	Drain Plug	-
49	U17409	4	O-Ring	-
50	19M7835	4	Screw	M10 X 35
51	24M7345	8	Washer	13.500 X 24 X 2.500 mm
52	19M7908	8	Cap Screw	M12 X 110
53	T369362	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T200797
54	T369363	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T200798
55	T369364	1	Shim	TK = 0.178 mm (0.007 in), SUB FOR T200799
56	25M3827	2	Groove Pin	3 X 8 mm
57	T369367	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T263699
58	T263325	1	Disk	3.02 mm (0.119 in), Ring
59	AT460585	1	Brake	SUB FOR AT352318
60	AT390577	4	Tapered Roller Bearing	-

Final Drive Components, Wide Track, Wide Long Track ( - 165123)

Нет текстового описания
