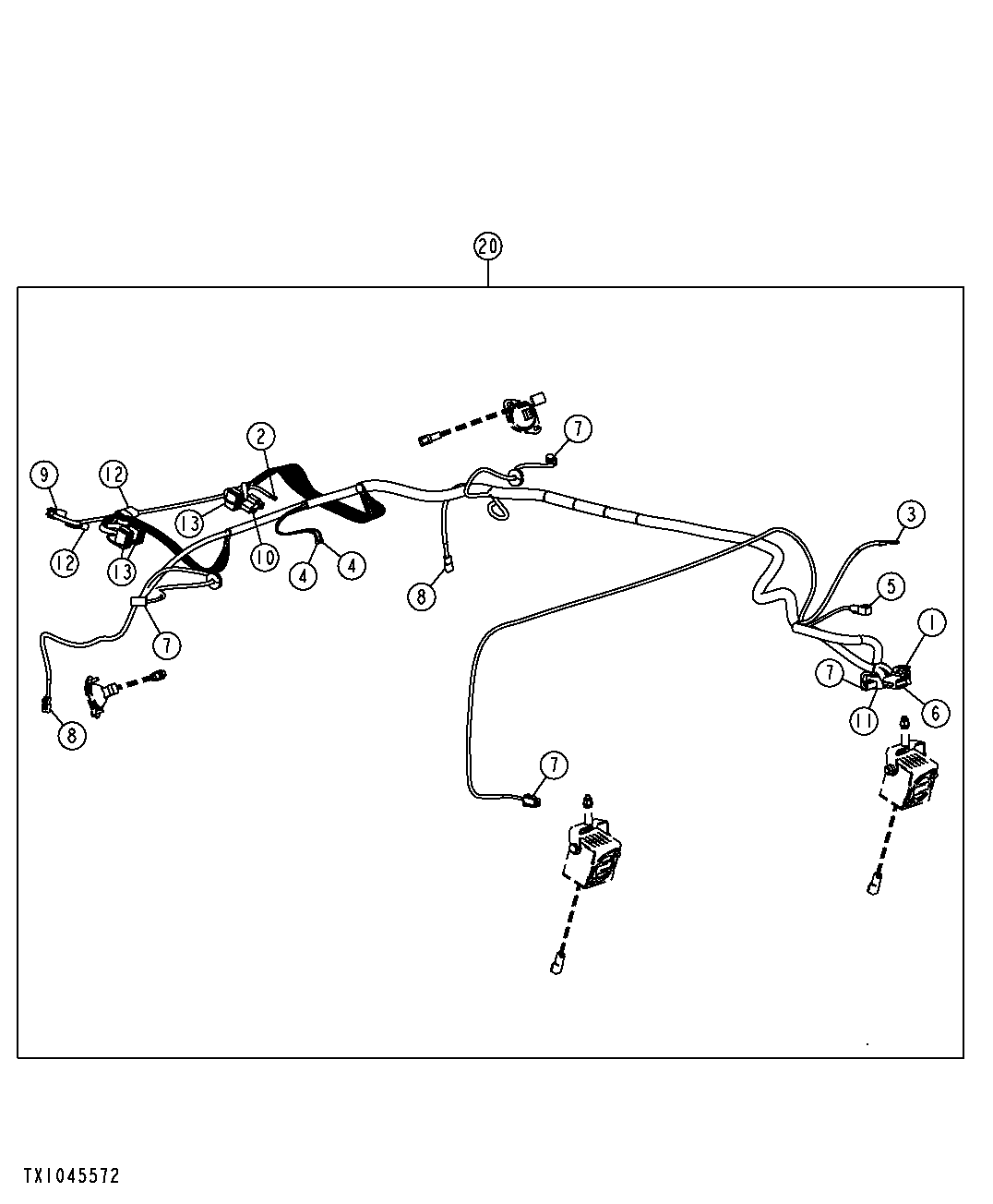

Cab Roof Wiring Harness (Standard Cab)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7429	2	Elec. Connector Terminal	-
1	57M7511	1	Elec. Connector Terminal	-
1	57M9362	1	Elec. Connector Housing	A/C Fan Relay
2	57M8270	1	Elec. Connector Housing	Temperature Control Switch
2	57M7501	3	Elec. Connector Terminal	-
3	-	1	Part 6	Ground
4	AT263425	2	Seal	-
4	57M7251	2	Elec. Connector Terminal	-
4	AT263424	1	Electrical Connector Assy	Dome Light
4	57M9453	2	Elec. Connector Terminal	Dome Light
5	57M8023	1	Elec. Connector Housing	Solargizer
6	57M8008	1	Electrical Connector Assy	-
6	57M7542	9	Elec. Connector Terminal	-
6	-	2	Part 14	-
7	57M8021	4	Electrical Connector Assy	Lights
8	57M8021	2	Electrical Connector Assy	Wiper
9	57M8021	1	Electrical Connector Assy	Front Wiper Motor
9	R78069	2	Elec. Connector Cavity Plug	-
9	-	4	Part 18	-
10	-	1	Part 20	Heater Blower Switch
10	57M7429	4	Elec. Connector Terminal	-
10	57M7512	1	Elec. Connector Terminal	-
11	57M7666	1	Elec. Connector Housing	Roof
11	57M7541	3	Elec. Connector Terminal	-
11	-	16	Part 25	-
11	R78069	12	Elec. Connector Cavity Plug	-
12	AT103399	2	Diode	Front Wiper Diode Door Wiper Diode
13	-	3	Part 28	A/C On/Off
13	57M7429	6	Elec. Connector Terminal	-
13	57M7511	2	Elec. Connector Terminal	-
13	57M7880	9	Elec. Connector Terminal	-
20	AT380021	1	Wiring Harness	Roof, (ALSO ORDER AT347470) (SUB FOR AT352398)
20	AT380021	1	Wiring Harness	Roof
