Открытый узел

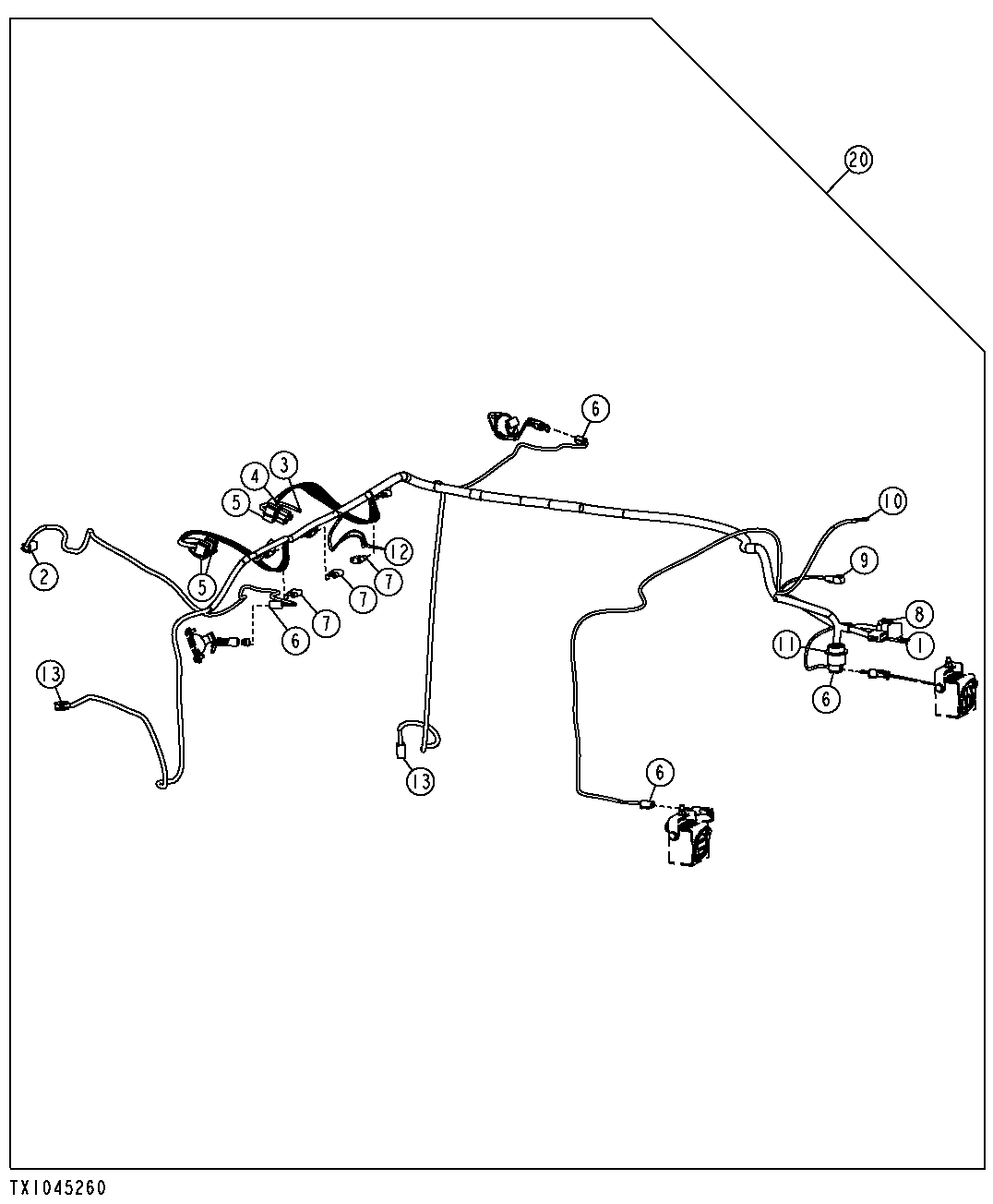

Cab Roof Wiring Harness (Armored Cab)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7542	9	Elec. Connector Terminal	14–16 gauge
1	-	3	Part 3	-
1	57M8008	1	Electrical Connector Assy	-
2	57M8012	1	Electrical Connector Assy	Front Wiper Motor
2	-	4	Part 5	-
2	R78069	2	Elec. Connector Cavity Plug	-
3	57M8270	1	Elec. Connector Housing	Temperature Control Switch
3	57M7501	3	Elec. Connector Terminal	-
4	57M7429	4	Elec. Connector Terminal	14–16 gauge
4	57M7512	1	Elec. Connector Terminal	10–12 gauge
4	-	1	Part 9	Heater Blower Switch
5	-	3	Part 12	A/C On/Off
5	57M7512	4	Elec. Connector Terminal	10–12 gauge
5	57M7429	7	Elec. Connector Terminal	14–16 gauge
5	57M7880	4	Elec. Connector Terminal	-
5	57M7511	2	Elec. Connector Terminal	18–20 gauge
6	57M8021	4	Electrical Connector Assy	-
6	-	8	Part 18	-
7	AT103399	3	Diode	Front Wiper Right & Left Wiper
8	57M9362	1	Elec. Connector Housing	A/C Fan Relay
8	57M7429	1	Elec. Connector Terminal	14–16 gauge
8	57M9192	2	Elec. Connector Terminal	-
8	57M7511	1	Elec. Connector Terminal	18–20 gauge
9	57M8023	1	Elec. Connector Housing	Solargizer
9	-	1	Part 25	-
10	-	1	Part 26	Ground
11	57M7666	1	Elec. Connector Housing	Roof Connector
11	57M7541	3	Elec. Connector Terminal	14–16 gauge
11	-	16	Part 29	-
11	R78069	12	Elec. Connector Cavity Plug	-
12	57M9463	2	Elec. Connector Terminal	Dome Light Power Dome Light Ground
12	AT263425	2	Seal	-
12	57M7251	2	Elec. Connector Terminal	-
12	AT263424	1	Electrical Connector Assy	Dome Light
13	57M8012	2	Electrical Connector Assy	Left & Right Wiper Motor
13	-	8	Part 36	-
13	R78069	4	Elec. Connector Cavity Plug	-
20	AT380019	1	Wiring Harness	Roof, (ALSO ORDER AT347470) (SUB FOR AT359131)
20	AT380019	1	Wiring Harness	Roof

Cab Roof Wiring Harness (Armored Cab)

Нет текстового описания
