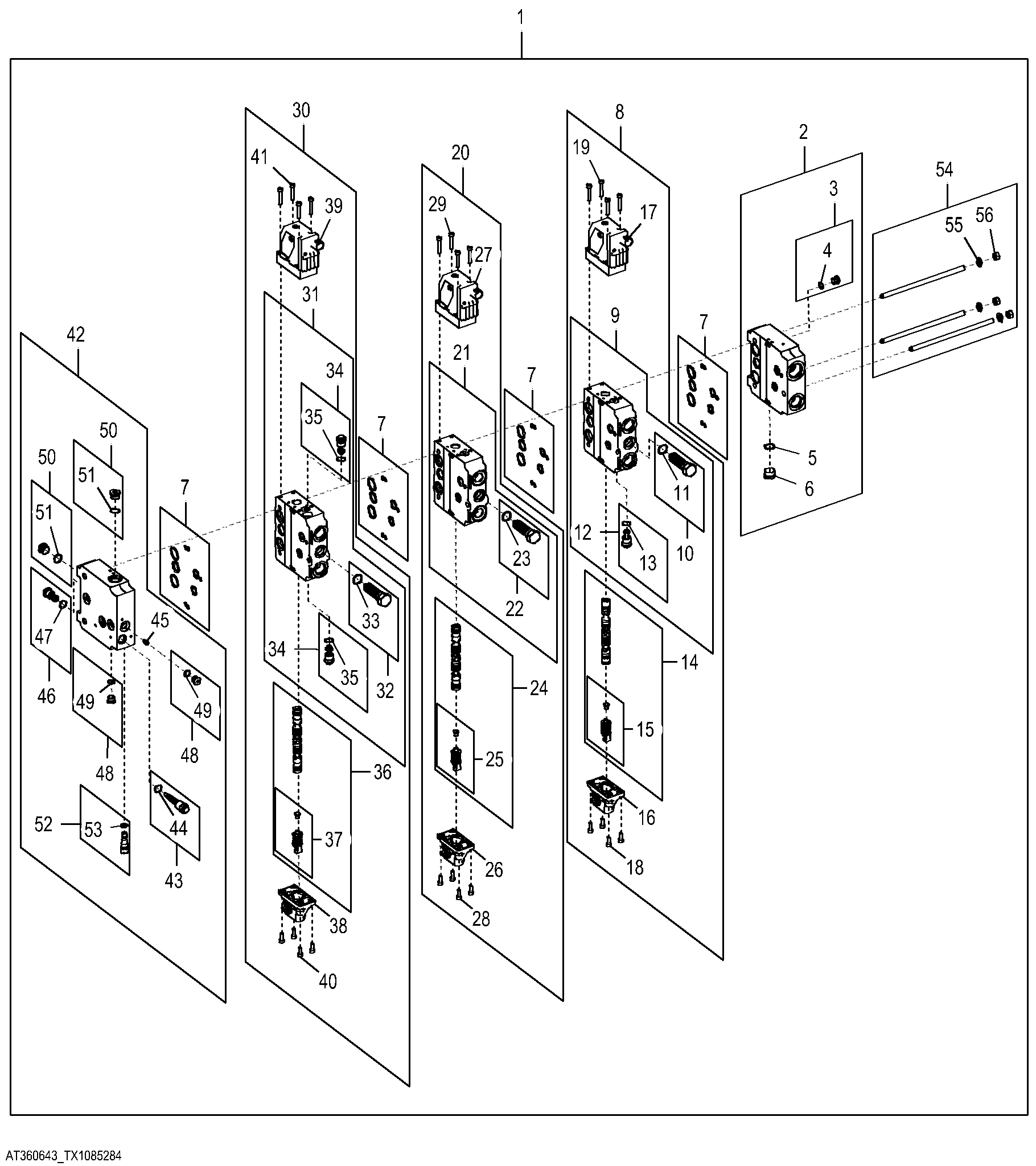

Hydraulic Control Valve Components (Power Angle Tilt) (3 Spool)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT360643	1	Control Valve	Convenience Assembly
2	AT329075	1	Valve	Inlet /Outlet
3	AT49216	1	Fitting Plug	-
4	-	1	Part 4	NLA
5	R26906	1	O-Ring	-
6	T58477	1	Fitting	-
7	AT329086	4	Seal Kit	-
8	AT360641	1	Valve	Lift Section
9	AT335948	1	Housing	-
10	AT335920	1	Compensator	-
11	51M7045	1	O-Ring	19.300 X 2.200 mm
12	AT329127	1	Check Valve	-
13	T77932	1	O-Ring	-
14	AT335930	1	Valve Spool	Lift
15	AT335933	1	Spring Assembly	-
16	AT335927	1	Actuator	-
16	AT355118	1	Seal Kit	-
17	AT360624	1	Elec-Hyd Proportional Valve	-
17	AT324966	1	Seal Kit	-
18	19M8553	4	Screw	M6 X 16
19	19M8532	4	Screw	M6 X 35
20	AT360631	1	Valve	Tilt Section
21	AT335947	1	Housing	-
22	AT335920	1	Compensator	-
23	51M7045	1	O-Ring	19.300 X 2.200 mm
24	AT335929	1	Valve Spool	Tilt
25	AT335932	1	Spring Assembly	-
26	AT335927	1	Actuator	-
26	AT355118	1	Seal Kit	-
27	AT360626	1	Elec-Hyd Proportional Valve	-
27	AT324966	1	Seal Kit	-
28	19M8553	4	Screw	M6 X 16
29	19M8532	4	Screw	M6 X 35
30	AT329081	1	Valve	Angle Section
31	AT335946	1	Housing	-
32	AT335920	1	Compensator	-
33	51M7045	1	O-Ring	19.300 X 2.200 mm
34	AT329083	2	Pressure Relief Valve	-
35	T77932	2	O-Ring	-
36	AT335928	1	Valve Spool	Angle
37	AT335932	1	Spring Assembly	-
38	AT335927	1	Actuator	-
38	AT355118	1	Seal Kit	-
39	AT329089	1	Elec-Hyd Proportional Valve	-
39	AT324966	1	Seal Kit	-
40	19M8553	4	Screw	M6 X 16
41	19M8532	4	Screw	M6 X 35
42	AT329082	1	Valve	End Cap
43	AT335919	1	Hydraulic Pressure Valve	-
44	T77932	1	O-Ring	-
45	T227074	1	Orifice	-
46	AT329084	1	Pressure Relief Valve	280 Bar
47	T77932	1	O-Ring	-
48	AT49216	2	Fitting Plug	-
49	-	1	Part 55	NLA
50	AT63271	2	Fitting	-
51	R26375	1	O-Ring	-
52	AT335918	1	Pressure Relief Valve	231 Bar
53	T74553	1	O-Ring	-
54	AT329085	1	Bolt And Nut	-
55	24M7433	3	Washer	10.500 X 20 X 2 mm
56	14M6915	3	Nut	M10
