Открытый узел

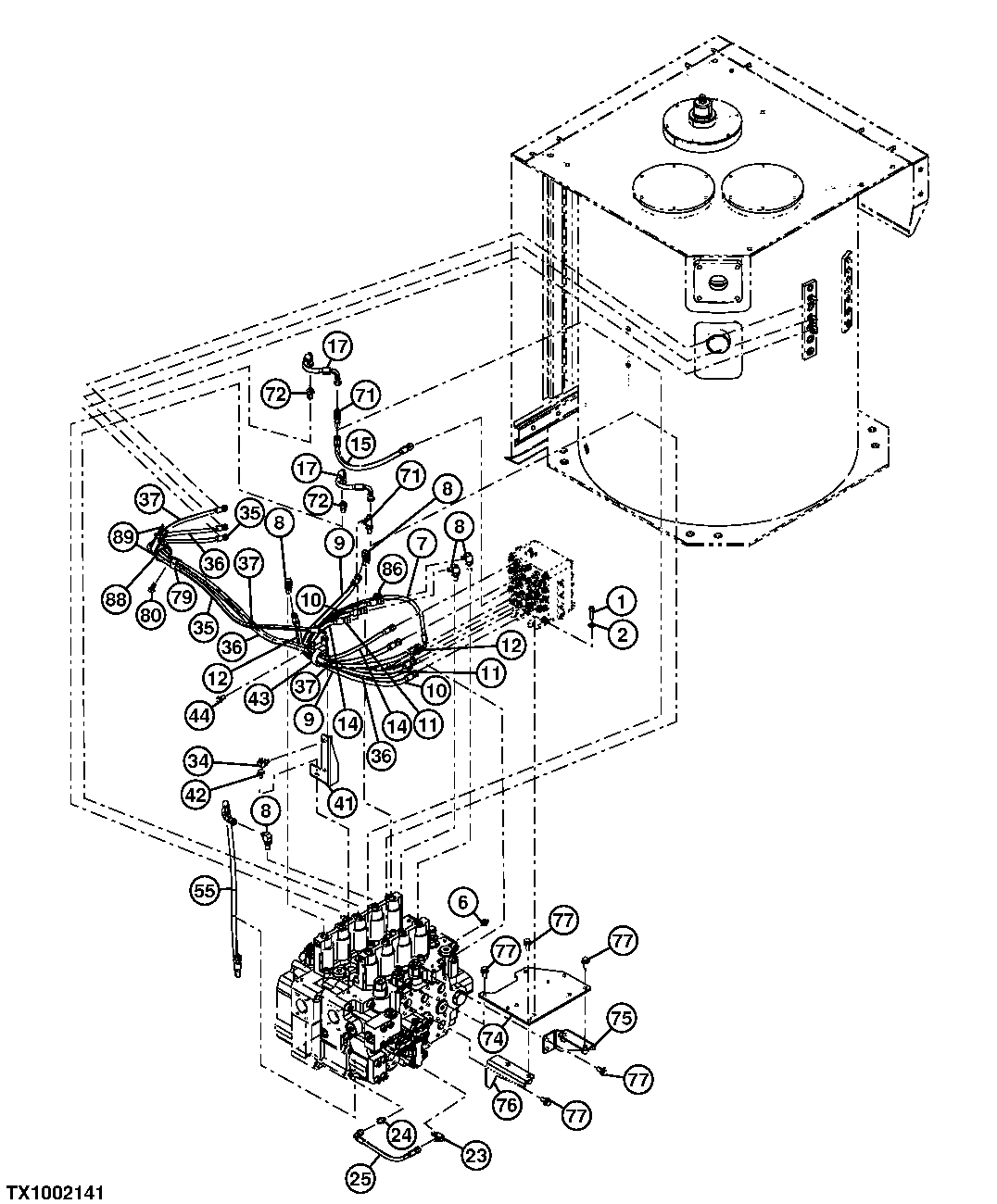

Pilot Lines (Control Valve Top To Pilot Signal Manifold)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8338	4	Screw	M10 X 40, (SUB FOR J781040)
2	24M7028	4	Washer	10.500 X 20 X 2 mm, (SUB FOR A590110)
6	M800650	1	Packing	(SUB FOR 957366)
6	A852122	1	Adapter Fitting	-
7	-	1	Part 5	(9261142 NLA)
7	4634379	1	Hydraulic Hose	-
7	-	1	Part 7	(MAKE FROM E90991) (CUT TO LENGTH 600 mm)
8	4208913	5	Adapter Fitting	-
8	CH11570	1	O-Ring	(SUB FOR 4509180)
9	4634373	1	Hydraulic Hose	-
10	4634375	1	Hydraulic Hose	-
11	4634372	1	Hydraulic Hose	-
12	4634369	1	Hydraulic Hose	-
14	4634366	1	Hydraulic Hose	-
15	4613763	1	Hose	SUB FOR 4634367
17	4636269	2	Air Duct	-
23	A852422	1	Tee Fitting	-
23	M800650	1	Packing	(SUB FOR 957366)
24	A852122	1	Adapter Fitting	-
24	M800650	1	Packing	(SUB FOR 957366)
25	4427359	1	Hydraulic Hose	(SUB FOR 4470393)
34	4154670	1	Elbow Fitting	(SUB FOR A852322)
34	M800650	1	Packing	(SUB FOR 957366)
35	4634915	1	Hydraulic Hose	-
36	4634381	1	Hydraulic Hose	-
37	4644073	1	Hydraulic Hose	-
41	8103028	1	Bracket	-
42	19M7938	2	Cap Screw	M10 X 20, (SUB FOR J901020)
42	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
42	-	2	Part 28	(J271020 NLA)
43	R134002	1	Clamp	(SUB FOR 4193816)
44	-	1	Part 32	(J271025 NLA)
44	19M7402	1	Cap Screw	M10 X 25, (SUB FOR J901025)
44	24M7346	1	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
55	4642214	1	Hydraulic Hose	-
71	4208910	2	Tee Fitting	-
71	CH11570	1	O-Ring	(SUB FOR 4509180)
72	4202422	2	Adapter Fitting	-
72	CH11570	1	O-Ring	(SUB FOR 4509180)
74	8103066	1	Plate	-
75	8103064	1	Bracket	-
76	8103065	1	Bracket	-
77	-	10	Part 43	(J271230 NLA)
77	19M8011	10	Cap Screw	M12 X 30, (SUB FOR J901230)
77	24M7345	10	Washer	13.500 X 24 X 2.500 mm, (SUB FOR J222012)
79	XCL-29	1	Hose Clamp	(SUB FOR 4190264)
80	-	1	Part 47	(J271025 NLA)
80	19M7402	1	Cap Screw	M10 X 25, (SUB FOR J901025)
80	24M7346	1	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
86	H77698	1	Tie Band	(SUB FOR 4055311)
88	4258351	1	Isolator	-
89	H77698	2	Tie Band	(SUB FOR 4121859)

Pilot Lines (Control Valve Top To Pilot Signal Manifold)
