Hydraulic Lines (Control Valve To Check Valve and Accumulator) (973146 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
15	4509180	1	O-Ring	-
15	A852233	1	Elbow Fitting	INCLUDES 4509180
17	4644370	1	Hydraulic Hose	-
19	A852422	1	Tee Fitting	-
19	0981201	1	O-Ring	SUB FOR Z957366
20	4154670	1	Elbow Fitting	INCLUDES 0981201, SUB FOR A852322
20	0981201	1	O-Ring	SUB FOR Z957366
21	4644344	1	Hydraulic Hose	-
22	E90991	1	Hose Guard	SUB FOR 4327293
22	4638242	1	Hydraulic Hose	-
22	9261220	1	Hydraulic Hose	INCLUDES 4638242 AND E90991
25	-	2	Part 12	J271020 NLA
25	19M7938	2	Cap Screw	M10 X 20, SUB FOR J901020
25	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
26	9162817	1	Check Valve	-
27	-	2	Part 16	J271060 NLA
27	19M5536	2	Cap Screw	M10 X 60, SUB FOR J901060
27	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
29	4266330	1	Tee Fitting	INCLUDES 4506418
29	4506418	1	O-Ring	-
32	A852122	1	Adapter Fitting	INCLUDES 0981201
32	0981201	1	O-Ring	SUB FOR Z957366
34	FYA00002377	1	Hose	-
36	FYA00025723	1	Hydraulic Accumulator	INCLUDES MIU804786
36	MIU804786	1	O-Ring	SUB FOR Z954493
45	A852122	1	Adapter Fitting	-
45	0981201	1	O-Ring	SUB FOR Z957366
46	FYA00002376	1	Hose	-
49	-	1	Part 29	J271025 NLA
49	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
49	19M7402	1	Cap Screw	M10 X 25, SUB FOR J901025
50	FYA00049125	1	Clip	SUB FOR 4190263
54	4711521	1	Universal Joint Cross	-
55	FYA00002378	1	Hose Guard	-
56	H77698	2	Tie Band	SUB FOR 4121859
63	H77698	2	Tie Band	SUB FOR 4055312
65	7059397	1	Bracket	-

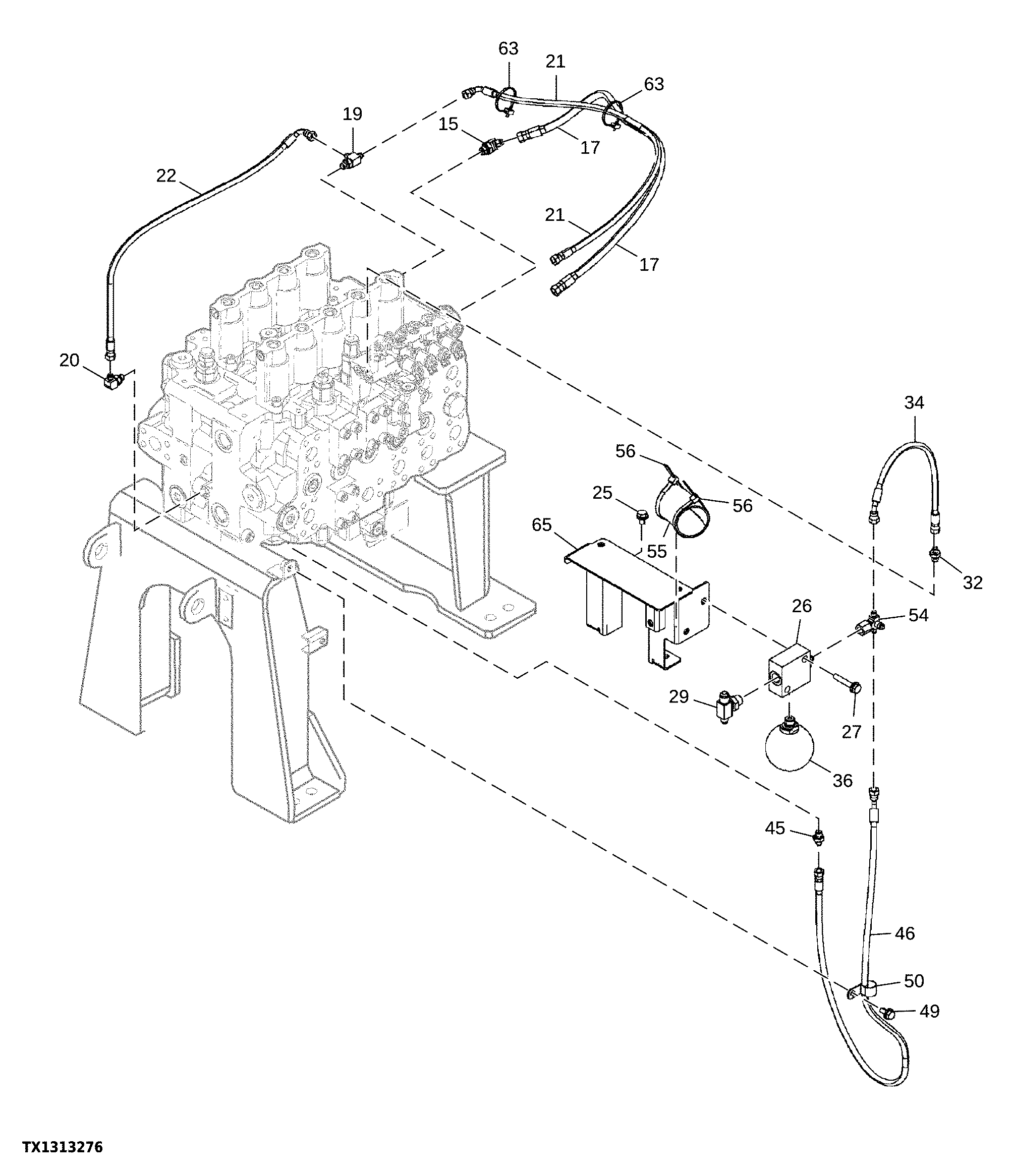

Hydraulic Lines (Control Valve To Check Valve and Accumulator) (973146 - )
