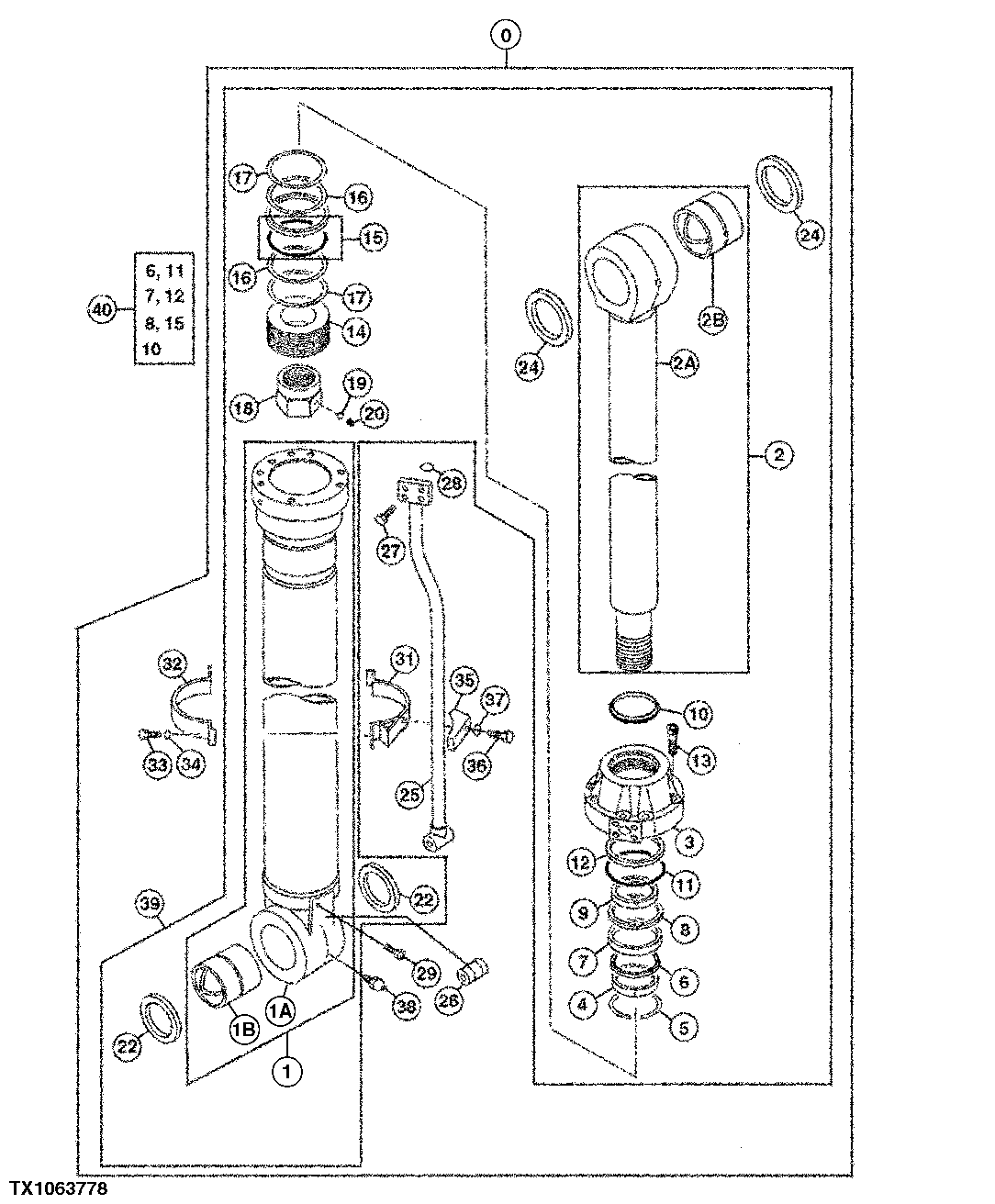

Hydraulic Cylinder (Counterweight Lifting)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4392996	1	Cylinder	-
1	4402170	1	Hydraulic Cylinder Barrel	-
2	4402022	1	Rod	-
3	0704403	1	Hydr. Cylinder Rod Guide	SUB FOR AT217067
4	AT264291	1	Bushing	SUB FOR AT217060 OR 0450506
5	0133103	1	Snap Ring	SUB FOR AT127275
6	AT264292	1	Ring	SUB FOR AT217061 OR 0450507
7	T207118	1	Seal	SUB FOR TH104996, 4069711 OR AT264368
8	AT264369	1	Back-Up Ring	SUB FOR TH104997
9	0450508	1	Ring	SUB FOR AT217062
10	AT264283	1	Ring	SUB FOR 0239504 OR 4438199
11	A811160	1	O-Ring	SUB FOR 4061790
12	AT264252	1	Back-Up Ring	SUB FOR AT132399
13	0191412	8	Bolt	SUB FOR AT217053
14	0704405	1	Piston	SUB FOR AT217069
15	AT264253	1	Ring	SUB FOR AT132400
16	AT264289	2	Ring	SUB FOR AT201577
17	AT264248	2	Ring	SUB FOR AT132175
18	0443902	1	Nut	SUB FOR AT217059
19	0353011	1	Ball	SUB FOR AT132320
20	0353012	1	Set Screw	SUB FOR AT132321
22	0420403	2	Ring	SUB FOR AT201589 OR 4S00854
24	AT201578	2	Ring	-
25	0666701	1	Oil Line	SUB FOR TH0666701
26	0493410	1	Oil Line	SUB FOR TH0493410
26	0976602	1	O-Ring	SUB FOR 4509181 OR 4S00734
27	19M8395	4	Screw	M12 X 40
28	AT264348	1	O-Ring	SUB FOR TH102788
29	T116311	4	Bolt	-
31	0875612	1	Half Clamp	SUB FOR 0352719
32	0352721	1	Band	SUB FOR AT132300
33	19M7550	2	Cap Screw	M10 X 35
34	12M7066	2	Lock Washer	10 mm
35	T108036G	1	Clamp	SUB FOR T108036
36	19M7361	1	Cap Screw	M12 X 50
37	12M7058	1	Lock Washer	12 mm, SUB FOR 12M7067
38	TH100074	2	Lubrication Fitting	-
39	4402168	1	Hydraulic Cylinder	-
40	4405053	1	Seal Kit	-
1A	-	1	Part 3	0352905 NLA
1B	4609091	1	Bushing	SUB FOR AT132309 OR 0352905
2A	-	1	Part 6	NLA
2B	4660855	1	Bushing	SUB FOR AT202246 OR 0420102

Hydraulic Cylinder (Counterweight Lifting)
