Counterweight High Pressure Lines (Removal Device)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4240863	1	Flow Control Hyd. Valve	-
1	-	2	Part 2	(J271070 NLA)
1	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
1	19M7875	2	Cap Screw	M10 X 70, (SUB FOR J901070)
2	4131346	2	Spacer	-
3	4240862	1	Manifold	-
4	-	2	Part 7	(J271055 NLA)
4	19M7935	2	Cap Screw	M10 X 55, (SUB FOR J901055)
4	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
5	4154656	2	Elbow Fitting	-
6	AT126482	1	Hydraulic Hose	(SUB FOR 4209727)
7	4395369	2	Flange Fitting	-
8	T72216	2	O-Ring	(SUB FOR 4508805)
9	19M8734	8	Screw	M14 X 45, (SUB FOR M341445)
10	94-1703	1	Adapter Fitting	-
12	4274178	2	Elbow Fitting	-
13	T77857	6	O-Ring	(SUB FOR 4138938)
14	4220806	1	Flow Control Hyd. Valve	-
16	R50454	6	Clamp	(SUB FOR 4192034)
17	24M7346	3	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
17	-	3	Part 20	(J271020 NLA)
17	19M7938	3	Cap Screw	M10 X 20, (SUB FOR J901020)
21	4660053	1	Hydraulic Hose	-
23	4416108	1	Hydraulic Hose	-
24	4660051	1	Hydraulic Hose	-
26	4260154	2	Elbow Fitting	-
26	4506418	1	O-Ring	-
27	4210942	2	Adapter Fitting	-
28	8106629	1	Cover	-
29	24M7345	2	Washer	13.500 X 24 X 2.500 mm, (SUB FOR J222012)
29	19M8017	2	Cap Screw	M12 X 20, (SUB FOR J901220)
29	-	2	Part 30	(J271220 NLA)
30	4411128	1	Hydraulic Hose	-
31	-	1	Part 34	(J271220 NLA)
31	19M7402	1	Cap Screw	M10 X 25, (SUB FOR J901025)
31	24M7346	1	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
41	TH100074	2	Lubrication Fitting	(SUB FOR J75481)
43	3081079	1	Adapter Fitting	-
44	4217265	1	Adapter Fitting	-
45	4146466	1	Pneumatic Pressure Valve	-
46	4261624	1	Adapter Fitting	-
47	94-2024	2	Fitting Plug	-
48	T77857	2	O-Ring	(SUB FOR 4138938)

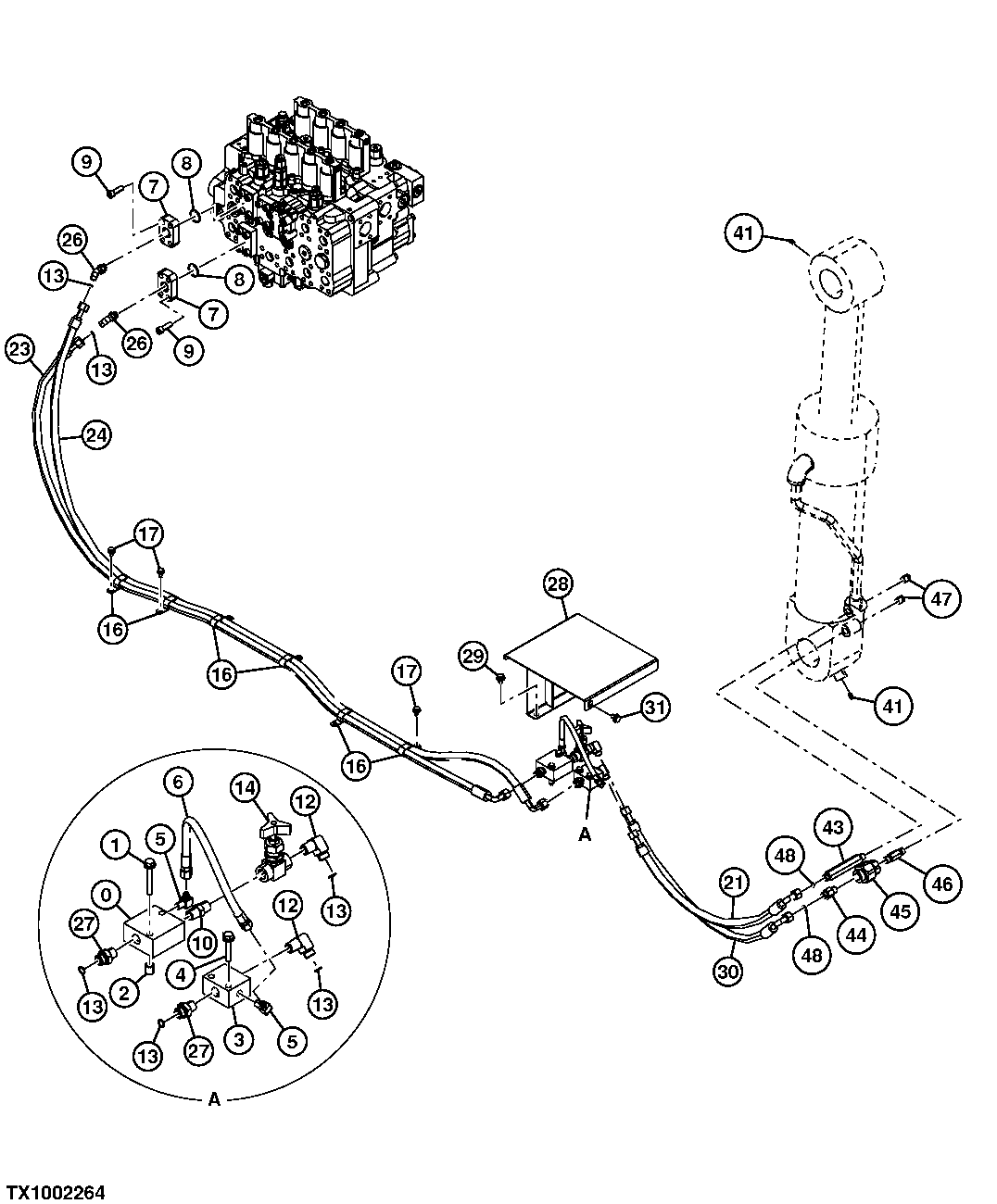

Counterweight High Pressure Lines (Removal Device)
