Air Conditioner Refrigerant Hose and Compressor Drive Belt

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7048591	1	Bracket	-
1	FYA00023056	1	Pulley	ALSO ORDER FYA00023057; SUB FOR 4252004
1	FYA00023057	1	Bolt	USE WITH FYA00023056
4	19M8504	4	Cap Screw	M8 X 80, SUB FOR J901070
5	24M7055	4	Washer	8.400 X 16 X 1.600 mm, J281030 NLA
6	12M7065	4	Lock Washer	8 mm
7	-	4	Part 7	J260820 NLA
7	19M7362	4	Cap Screw	M12 X 55
7	24M7345	4	Washer	13.500 X 24 X 2.500 mm
12	-	2	Part 10	J260630 NLA
12	19M7318	2	Screw	M6 X 30, SUB FOR J900630
12	24M7054	2	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
13	4633197	1	Hose	Compressor To Condenser
14	4633198	1	Hose	Condenser to Receiver-Dryer
15	4612763	1	V-Belt	-
19	FF500010	2	Hose Clamp	SUB FOR AA34965 OR 4514699
21	4405194	1	Spacer	-
22	4405814	1	Sensor	SUB FOR A590916
24	R50454	9	Clamp	SUB FOR 4192034 OR TH109445
25	N198631	5	Clamp	SUB FOR 4190265
26	4190266	6	Clip	SUB FOR TH108793
27	T32854	7	Clamp	SUB FOR 4190282
28	R73384	2	Clamp	-
29	T28949	3	Clamp	SUB FOR 4190274
31	-	32	Part 28	J271025 NLA
31	19M7402	32	Cap Screw	M10 X 25, SUB FOR J901025
31	24M7346	32	Washer	11 X 20 X 2 mm, SUB FOR J222010
32	4667336	1	Refrigerant Hose	Extension Hose Not Illustrated, M16X1.5, 3400 mm
32	4666744	1	Refrigerant Hose	Extension Hose Not Illustrated, M24X1.5, 3400 mm
13A	957366	1	O-Ring	SUB FOR 4350207
13B	4475232	1	Cap	-
14A	CH11568	1	Packing	SUB FOR 4350187 AND 4226445

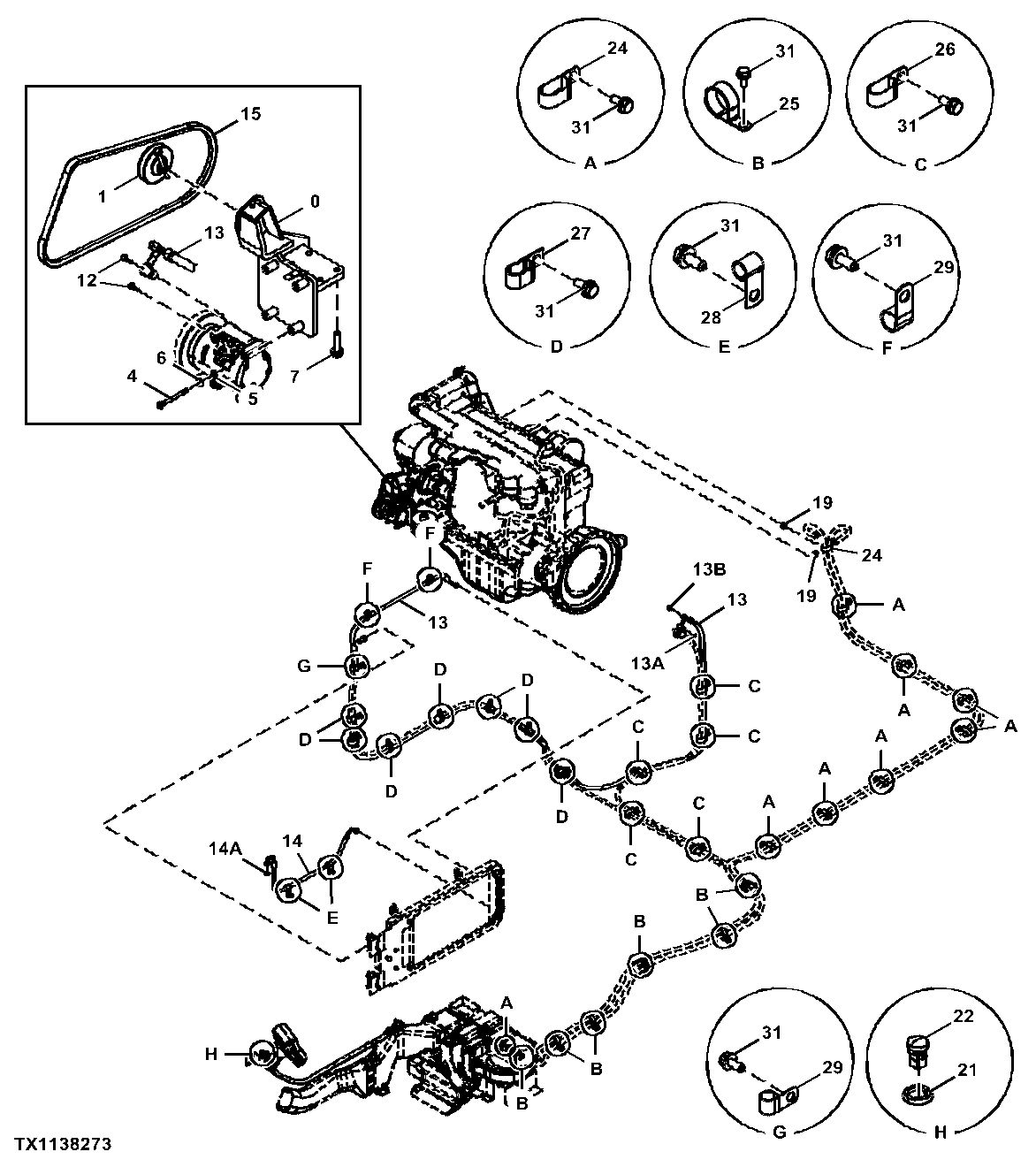

Air Conditioner Refrigerant Hose and Compressor Drive Belt
