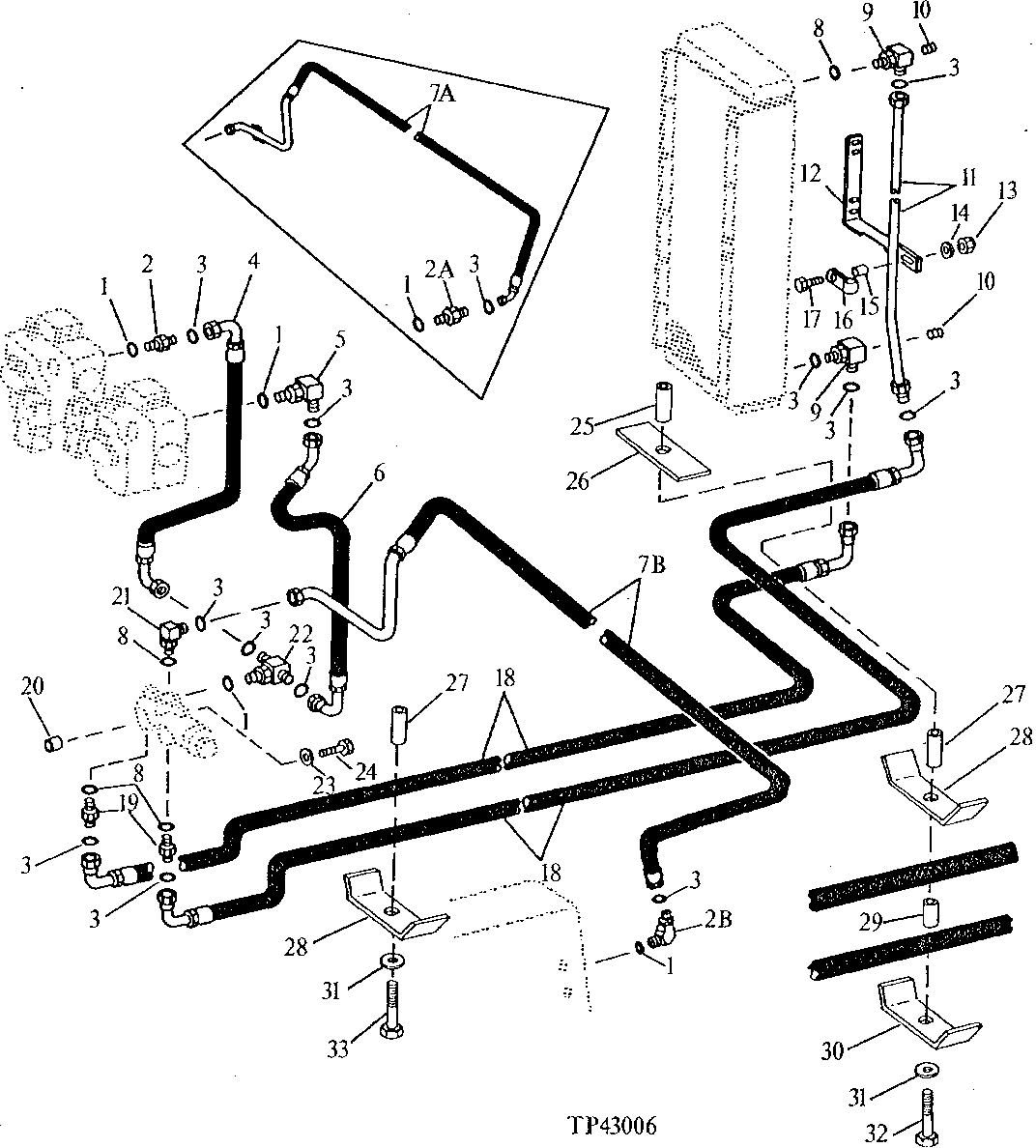

TRANSMISSION OIL COOLER AND BYPASS VALVE HYDRAULICS [01G18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U13639	4	O-Ring	-
3	T78612	12	O-Ring	-
4	AT81212	1	HYDRAULIC HOSE - FABRICATE	1-11/16" X 499 MM (19-3/4") X 1-11/16"
5	38H1005	1	Elbow Fitting	-
6	AT81213	1	HYDRAULIC HOSE - FABRICATE	1-11/16" X 416 MM (16-1/2") X 1-11/16"
8	R29936	5	O-Ring	-
9	38H1053	2	Elbow Fitting	-
10	15H666	2	Pipe Plug	3/8"
11	AT81203	1	OIL LINE	-
12	T104601	1	BRACKET	-
12	T79525	1	BRACKET	(SUB T104601)
13	T11234	1	Lock Nut	-
14	R57696	1	Washer	-
15	28H2497	1	Spacer	0.423" X 0.675" X 5/8", (COOLER INLET TUBE CLAMPING)
16	R58925	1	Clamp	-
17	19H3217	1	Cap Screw	3/8" X 1-3/4"
18	AT82055	2	HYDRAULIC HOSE	1-11/16" X 2 680 MM (105-1/2") X 1-11/16", (SUB FOR AT81215)
19	38H1196	2	Adapter Fitting	-
20	28H2497	1	Spacer	0.423" X 0.675" X 5/8", (OIL COOLER BYPASS VALVE TO BOLTING BLOCK SCREWS)
21	38H1008	1	Elbow Fitting	-
22	38H1021	1	Tee Fitting	-
23	12H304	2	Lock Washer	3/8", (OIL COOLER BYPASS VALVE TO BOLTING BLOCK)
24	19H3404	2	Cap Screw	3/8" X 4", (OIL COOLER BYPASS VALVE TO BOLTING BLOCK)
25	28H2531	1	Bushing	0.546" X 0.840" X 7/8"
26	T48730	2	STRAP	(TO HOLD TRANSMISSION OIL COOLER AND TILT HOSES TO FRONT ENGINE SUPPORT) (COOLER VALVE HYDRAULIC HOSES TO NEAR REAR ENGINE)
27	28H1720	1	Bushing	0.423" X 0.675" X 27/32", (1-COOLER VALVE HYDRAULIC HOSE TO NEAR REAR ENGINE)
28	U44385	2	CLAMP	(1-COOLER VALVE HYDRAULIC HOSES TO NEAR REAR ENGINE) (1-TO HOLD TRANSMISSION OIL COOLER AND TILT HOSES TO FRONT ENGINE SUPPORT)
29	28H2497	1	Spacer	0.423" X 0.675" X 5/8", (TO HOLD TRANSMISSION OIL COOLER AND TILT HOSES TO FRONT ENGINE SUPPORT)
30	U40398	1	Clamp	-
31	12H304	3	Lock Washer	3/8", (1-TO HOLD TRANSMISSION OIL COOLER AND TILT HOSES TO FRONT ENGINE SUPPORT) (2-COOLER VALVE HYDRAULIC HOSE TO REAR ENGINE MOUNT AND FRAME CENTER BRACKET SCREWS)
32	19H2104	1	Cap Screw	3/8" X 5", (TO HOLD TRANSMISSION OIL COOLER AND TILT HOSES TO FRONT ENGINE SUPPORT)
33	19H2467	1	CAP SCREW	3/8" X 2-1/2", (COOLER VALVE HYDRAULIC HOSES TO NEAR REAR ENGINE MOUNT)
2A	38H1165	3	Adapter Fitting	-
2B	38H1050	3	Elbow Fitting	-
7A	AT81211	1	HYDRAULIC HOSE	-
7B	AT160437	1	HYDRAULIC HOSE	-
