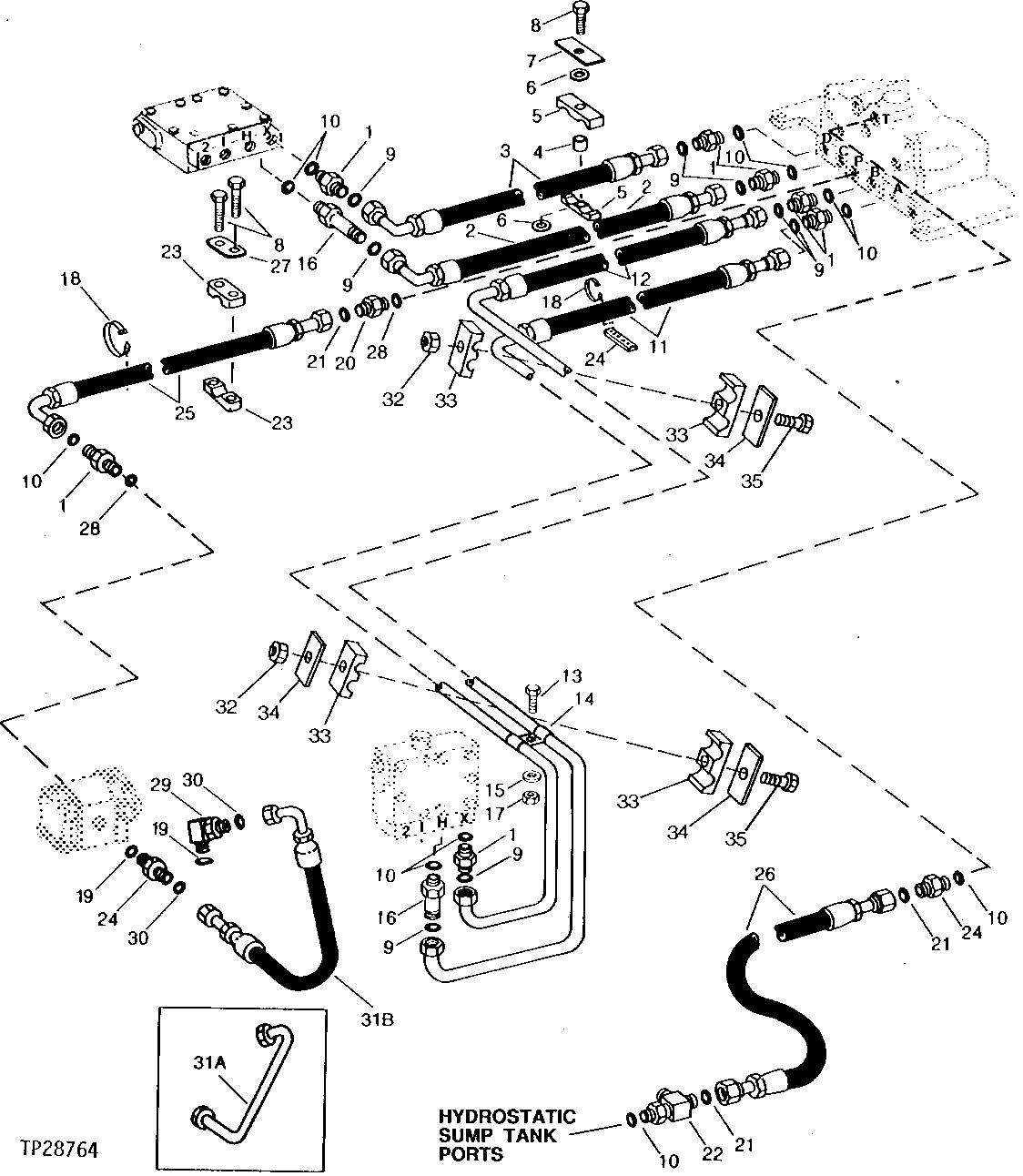

TRANSMISSION CONTROL VALVE TO PUMP DISPLACEMENT CONTROL VALVE HYDRAULICS (WITH OR WITHOUT CAB) (SERIAL NO. 731274- ) [01H01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1160	7	Adapter Fitting	-
2	AT72065	1	HYDRAULIC HOSE	11/16" X 743 MM (29-1/4") X 11/16"
3	AT72065	1	HYDRAULIC HOSE	11/16" X 743 MM (29-1/4") X 11/16", (SUB FOR AT72063)
4	M65702	2	SPACER	-
5	H105482	4	Clamp	-
6	24H1821	4	Washer	9/32" X 47/64" X 1/16"
7	R41489	2	STRAP	-
8	19H2333	2	Cap Screw	1/4" X 2-1/4"
9	T77613	8	O-Ring	(SUB FOR T76818)
10	R26448	11	O-Ring	-
11	AT85718	1	HYDRAULIC HOSE	-
12	AT85719	1	HYDRAULIC HOSE	-
13	19H2721	1	Cap Screw	1/4" X 1-1/2"
14	R27323	1	CLAMP	-
15	24H1685	1	Washer	11/32" X 47/64" X 0.083"
16	38H1212	2	Adapter Fitting	-
17	14H786	1	Nut	1/4"
18	R44302	1	Tie Band	-
19	R26375	2	O-Ring	-
20	38H1171	1	Adapter Fitting	-
21	T77857	3	O-Ring	(SUB FOR T76819)
22	38H1024	1	Tee Fitting	-
23	T112213	2	Clamp	(SUB FOR AT81236)
24	38H1161	2	Adapter Fitting	-
25	AT100989	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 150 MM (45-1/4") X 11/16", (SUB FOR AT85720)
26	AT135721	1	HYDRAULIC HOSE	13/16" X 1 200 MM (47-1/4") X 13/16", (SUB FOR AT72071 AND AT101149)
27	T71303	1	STRAP	-
28	T77613	2	O-Ring	-
29	38H1005	1	Elbow Fitting	-
30	T77857	2	O-Ring	-
32	T11234	2	Lock Nut	-
33	T43348	4	Clamp	-
34	T50390	3	STRAP	-
35	19H3065	2	Cap Screw	3/8" X 2"
31A	AT85722	1	OIL LINE	SUCTION
31B	AT113156	1	HYDRAULIC HOSE - FABRICATE	13/16" X 394 MM (15-1/2") X 13/16"

TRANSMISSION CONTROL VALVE TO PUMP DISPLACEMENT CONTROL VALVE HYDRAULICS (WITH OR WITHOUT CAB) (SERIAL NO. 731274- ) [01H01]
