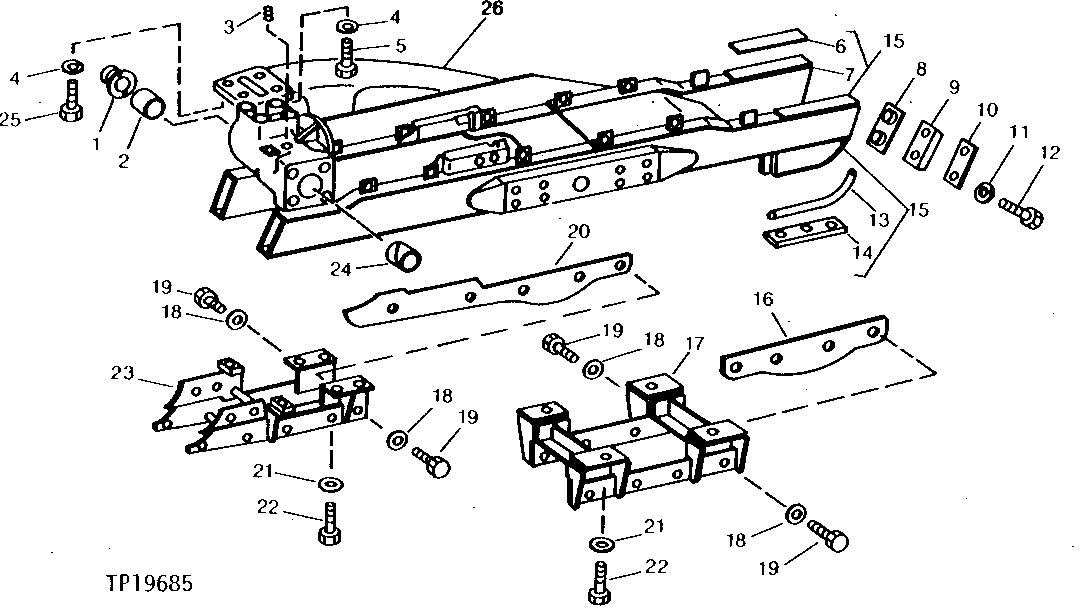

TRACK FRAME AND GUIDES (LOW GROUND PRESSURE TRACK) [01B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT51125	1	Seal	-
2	T52909	1	Bushing	-
3	RE57836	1	Pipe Plug	1/2", (SUB FOR 15H561)
4	R78019	4	Washer	(SUB FOR T21397)
5	19H3196	2	Cap Screw	HS, SAE 8, 3/4" X 4"
6	T80314	2	Reinforcement	-
7	T80312	2	BAR	-
8	AT63344	2	RETAINER	(SUB FOR AT71571)
9	T66779	2	ISOLATOR	(SUB FOR T74099)
10	T112100	2	STRAP	(SUB FOR T74100)
11	24H1308	4	Washer	13/32" X 1" X 0.134"
12	19H3065	4	Cap Screw	3/8" X 2"
13	T52895	2	SHIELD	-
14	T80313	2	STRIP	-
15	-	1	Part 16	(NO LONGER AVAILABLE) (SUB FOR AT80697)
15	-	1	Part 15	(NO LONGER AVAILABLE) (SUB FOR AT80696) R.H.
16	T73194	2	WEAR PLATE	-
17	AT70324	1	GUIDE	CENTER
18	R73290	18	Washer	(SUB FOR T497T, THIS APPLICATION)
19	19H2710	18	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
20	T73200	2	WEAR PLATE	-
21	24M7241	10	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
22	19H3244	10	Cap Screw	5/8" X 2-1/4", (USE WITH AT70327) HS, SAE 8, 5/8" X 2-1/2"
22	19H3244	18	Cap Screw	5/8" X 2-1/4", (USE WITH AT125752) (16-4TH, 5TH, 6TH, AND 7TH TRACK ROLLERS TO TRACK FRAME) (FRONT CENTER TRACK GUIDE HOLE TO TRACK FRAME)
22	19H3208	12	Cap Screw	5/8" X 3", (USE WITH AT125752) (12-1ST, 2ND AND 3RD TRACK ROLLERS TO TRACK FRAME)
23	AT125752	1	GUIDE	(SUB FOR AT70327) (REQUIRES PROPER FASTNERS SEE KEYS NUMBERED 22)
24	T52908	1	BUSHING	-
25	19H3273	2	CAP SCREW	HS, SAE 8, 3/4" X 3-1/4"
26	T112743	1	FRAME	-
26	T112744	1	FRAME	-
