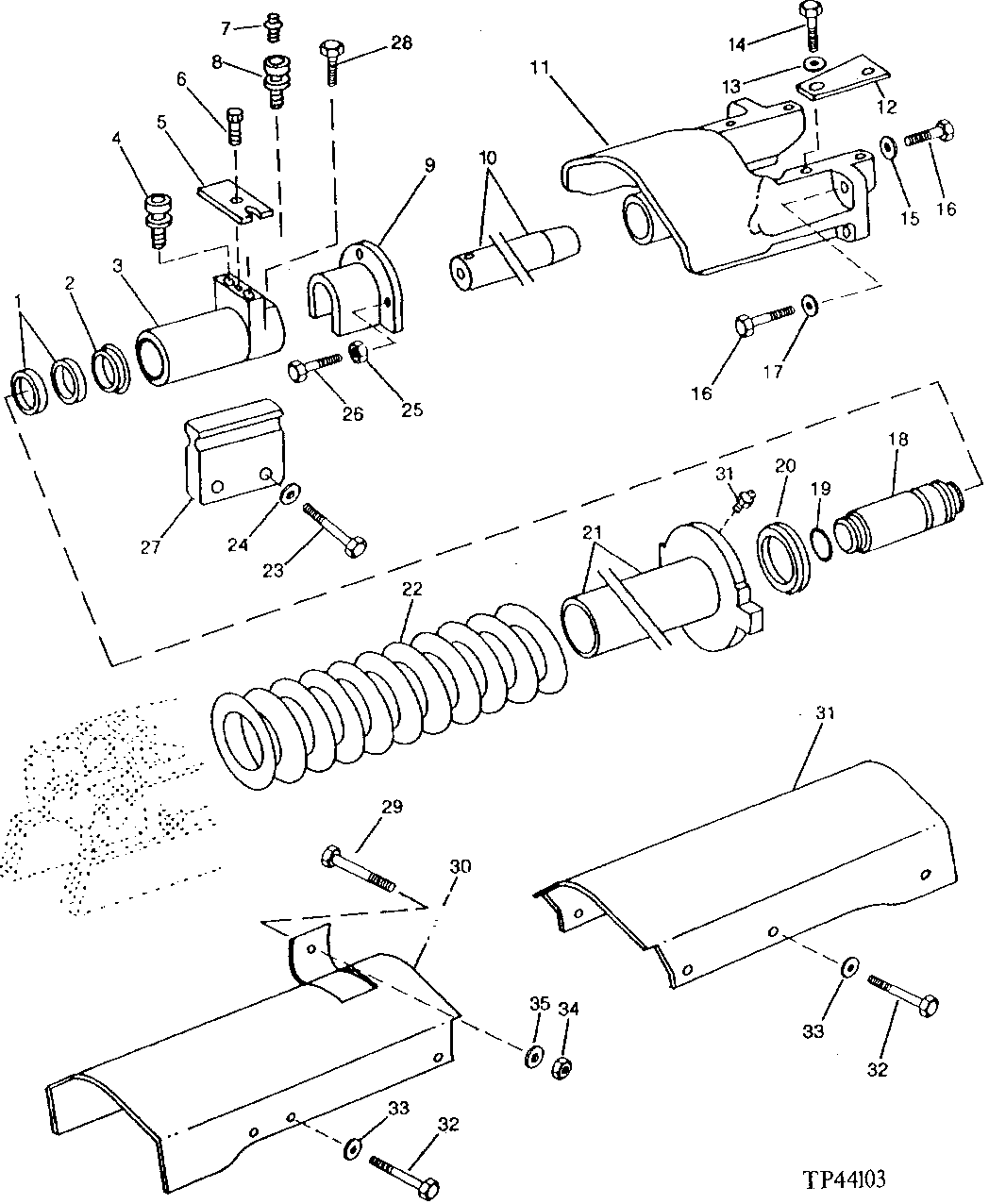

TRACK ADJUSTER, SPRING AND COVERS (LOW GROUND PRESSURE AND LONG TRACK) [01B15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T40416	2	WEAR RING	-
2	T47833	1	SEAL	-
3	AT81348	1	CYLINDER HEAD	TRACK HEAD
4	T120720	1	Pressure Relief Valve	(SUB FOR T73203)
5	T73204	1	STRAP	-
6	19H3295	1	Screw	3/8" X 3/4"
7	JD7763	1	Lubrication Fitting	45°, (SUB FOR JD7759, THIS APPLICATION)
8	AT46412	1	BALL COCK VALVE	-
9	T73207	1	STOP	-
10	T80877	1	ROD	(USE WITH LOW GROUND PRESSURE TRACK)
10	T80689	1	ROD	(USE WITH LONG TRACK)
11	T55098	1	Yoke	-
12	T55099	2	DEFLECTOR	-
13	24M7240	4	Washer	13 X 25 X 3 MM, (USE WITH LOW GROUND PRESSURE TRACK)
13	24M7240	6	Washer	13 X 25 X 3 MM, (USE WITH LONG TRACK)
14	19H2898	4	Cap Screw	1/2" X 1-1/4"
15	B3627R	1	WASHER	-
16	19H2411	5	Cap Screw	3/4" X 2-1/2"
17	R78019	4	Washer	(SUB FOR T21397)
18	T73206	1	PISTON	-
19	R26282	1	O-Ring	-
20	T47828	1	SEAL	-
21	T82457	1	HOUSING	(USE WITH LOW GROUND PRESSURE TRACK) (SUB FOR T73205) (ALSO ORDER JD7797)
21	T82455	1	HOUSING	(USE WITH LONG TRACK) (SUB FOR T47827) (ALSO ORDER JD7797)
22	T72376	1	SPRING	-
23	19H3057	4	Cap Screw	HS, SAE 8, 1/2" X 2-3/4"
24	24M7240	4	Washer	13 X 25 X 3 MM
25	24M7240	3	Washer	13 X 25 X 3 MM
26	19H1815	3	Cap Screw	1/2" X 1-1/4"
27	T73232	2	SPACER	(USE WITH LOW GROUND PRESSURE TRACK)
27	T73206	1	PISTON	(USE WITH LONG TRACK)
28	22H908	1	Set Screw	1/2" X 1/2", (SUB FOR H772R AND T105219) (ALSO ORDER R11066 AND 44M7070) (HEAD AND ROD MUST BE REDRILLED AND HEAD MUST BE RETAPPED) (SEE SERVICE NEWSLETTER)
29	19H3217	2	Cap Screw	3/8" X 1-3/4"
30	AT80954	1	COVER	(SUB FOR AT80952) R.H. REAR (USE WITH LONG TRACK)
30	AT80955	1	COVER	(SUB FOR AT80953) L.H. REAR (MOT ILLUSTRATED) (USE WITH LONG TRACK)
30	AT82821	1	COVER	L.H. REAR (NOT ILLUSTRATED) (USE WITH LOW GROUND PRESSURE TRACK)
30	AT82820	1	COVER	R.H. REAR (USE WITH LOW GROUND PRESSURE TRACK)
31	T81361	1	COVER	FRONT (USE WITH LOW GROUND PRESSURE TRACK)
31	AT80868	1	COVER	FRONT (USE WITH LONG TRACK)
32	19H3472	12	Cap Screw	5/8" X 9-3/4", (USE WITH LOW GROUND PRESSURE TRACK)
32	19H2472	12	Cap Screw	HS, SAE 8, 1/2" X 1", (USE WITH LONG TRACK)
33	24M7240	12	Washer	13 X 25 X 3 MM
34	T11234	1	Lock Nut	-
35	24H1308	1	Washer	13/32" X 1" X 0.134"
36	JD7797	1	Lubrication Fitting	-
