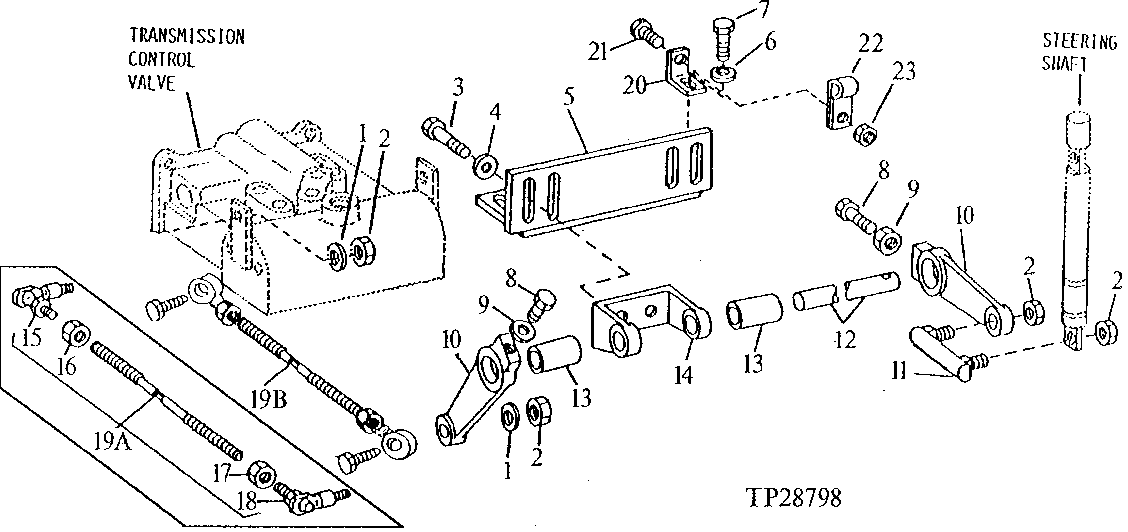

STEERING SHAFT LINKAGE (SERIAL NO. -731273) [01D16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1136	2	Washer	11/32" X 11/16" X 0.065"
2	R11151	8	Lock Nut	-
3	19H1648	6	Cap Screw	3/8" X 3/4"
4	24H1682	4	Washer	13/32" X 7/8" X 0.120"
5	T54218	1	BRACKET	(WITH CAB)
5	T52142	1	ANGLE	(WITH LEVER STEERING) (WITHOUT CAB)
5	T55059	1	BRACKET	(WITH PEDAL STEERING) (WITHOUT CAB)
6	24H1311	2	Washer	13/32" X 1-1/4" X 0.220"
7	19H2676	2	Cap Screw	3/8" X 1"
8	M3413T	4	SET SCREW	-
9	14H611	4	Nut	5/16"
10	T59895	4	ARM	-
11	AT49560	2	TIE ROD ASSEMBLY	-
12	T52146	1	SHAFT	L.H. (WITH LEVER STEERING) (WITHOUT CAB)
12	T55058	1	SHAFT	L.H. (WITH PEDAL STEERING) (WITHOUT CAB)
12	T55057	1	SHAFT	R.H. (WITH PEDAL STEERING) (WITHOUT CAB)
12	T52145	1	SHAFT	R.H. (WITH LEVER STEERING) (WITHOUT CAB)
12	T54221	1	SHAFT	L.H. (WITH CAB)
12	T54220	1	SHAFT	R.H. (WITH CAB)
13	JD9962	4	Needle Bearing	-
14	T50953	2	SUPPORT	-
15	-	1	Part 22	(SUB AT151186) (ALSO ORDER (2) 12H303 AND (2) 19H2477)
16	14H882	1	Nut	5/16"
17	14H1045	1	Nut	5/16", (LEFT HAND)
18	-	1	Part 25	(SUB AT151186) (ALSO ORDER (2) 19H2477 AND (2) 12H303)
20	T51761	2	ANGLE	-
21	19H1134	2	CAP SCREW	3/8" X 3/4"
22	H75541	2	Clamp	(SUB FOR R34557)
23	14H1076	2	Nut	3/8"
24	19H2477	2	CAP SCREW	5/16" X 1-1/4"
19A	-	2	Part 26	(SUB AT151186) (ALSO ORDER (2) 12H303 AND (2) 19H2477)
19B	AT151186	2	TIE ROD ASSEMBLY	(SUB FOR AT53800, AT53797 AND AT143034) (ALSO ORDER (2) 19H2477 AND (2) 12H303)

STEERING SHAFT LINKAGE (SERIAL NO. -731273) [01D16]
