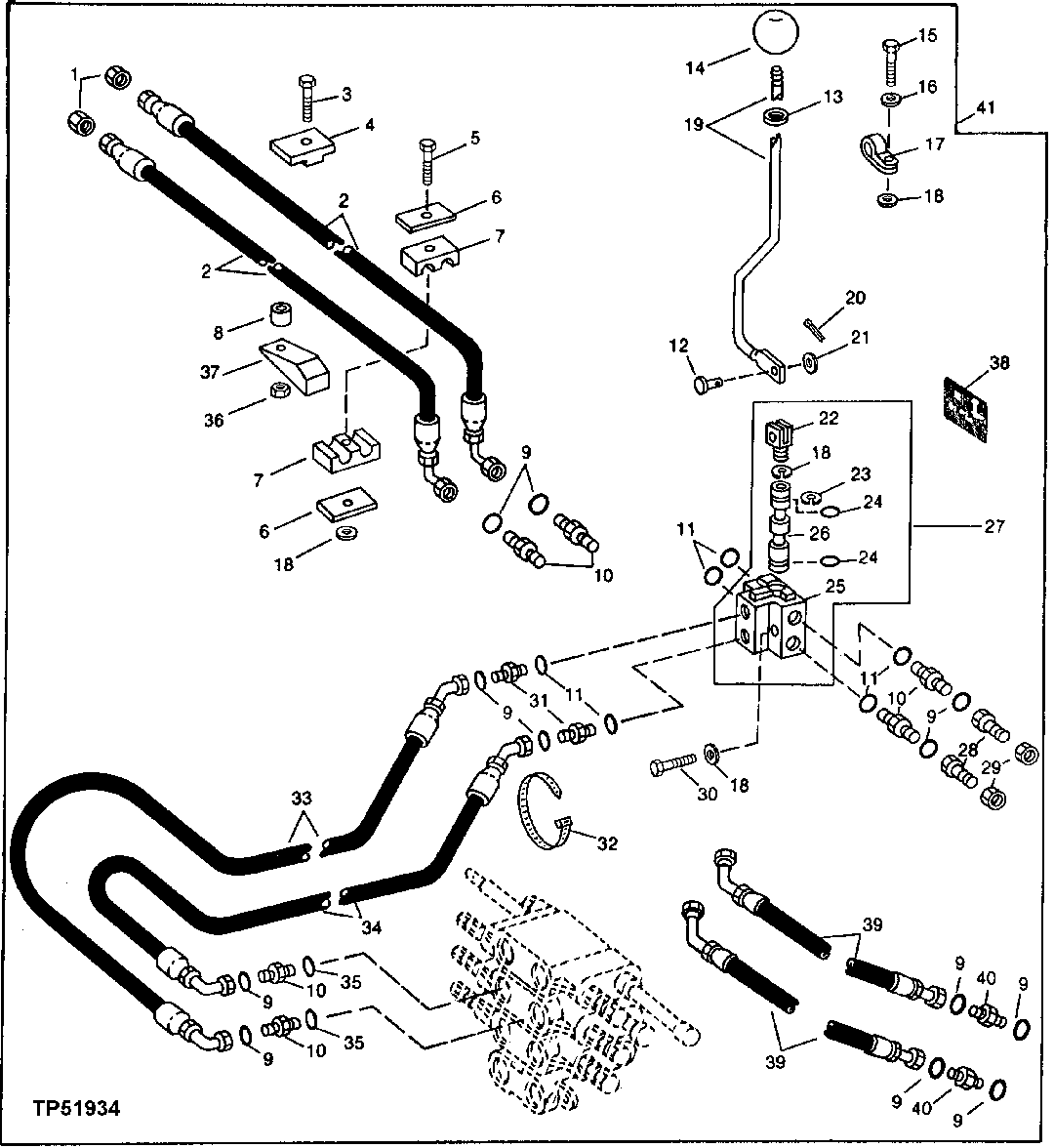

SELECTOR VALVE HYDRAULICS (TWO AND THREE-SPOOL) [03J10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T76557	2	FITTING	-
2	AT80179	2	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 924 MM (75-3/4") X 13/16"
3	19H1726	1	Cap Screw	3/8" X 2-1/4"
4	T52978	2	Clamp	-
5	19H2333	1	Cap Screw	1/4" X 2-1/4"
6	R41489	2	STRAP	-
7	T74260	2	Half Clamp	-
8	M65702	1	SPACER	-
9	T77857	10	O-Ring	-
10	38H1175	6	Adapter Fitting	-
11	U12547	6	O-Ring	(SUB FOR (6) F3171R)
12	H26275	1	PIN FASTENER	-
13	R41439	1	Grommet	-
14	AP17808	1	Knob	-
15	19H2676	1	Cap Screw	3/8" X 1"
16	24H1308	1	Washer	13/32" X 1" X 0.134"
17	T49589	1	CLAMP	-
18	12H304	4	Lock Washer	3/8"
19	-	1	Part 19	( T79956 NLA)
20	11M7081	1	Cotter Pin	2.500 X 20 MM
21	24H1287	1	Washer	9/32" X 5/8" X 0.065"
22	T71766	1	YOKE	-
23	U11295	1	Snap Ring	-
24	T104783	2	O-Ring	(.103 INCH)
24	U11296	2	O-RING	(.139 INCH)
25	-	1	Part 26	(SUB AT73037)
26	-	1	Part 27	(SUB AT73037)
27	AT73037	1	SELECTIVE CONTROL VALVE	(WITH DETENT)
28	38H1354	2	Tube Nut	-
29	38H1416	2	Fitting	-
30	19H2458	2	Cap Screw	3/8" X 3"
31	R27267	2	Fitting	-
32	N189220	2	Tie Band	(SUB FOR (2) AA21510)
33	AT80532	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 461 MM (57-1/2") X 13/16"
34	AT80531	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 334 MM (52-1/2") X 13/16"
35	R29936	2	O-Ring	-
36	T11234	1	Lock Nut	-
37	AT48525	1	BRACKET	-
38	T67452	1	LABEL	-
39	AT104322	1	HYDRAULIC HOSE - FABRICATE	(TWO-SPOOL)
40	38H1279	2	Union Fitting	(TWO-SPOOL)
41	-	1	Part 42	(NO LONGER AVAILABLE) (SUB FOR AT80178)

SELECTOR VALVE HYDRAULICS (TWO AND THREE-SPOOL) [03J10]

Нет текстового описания
