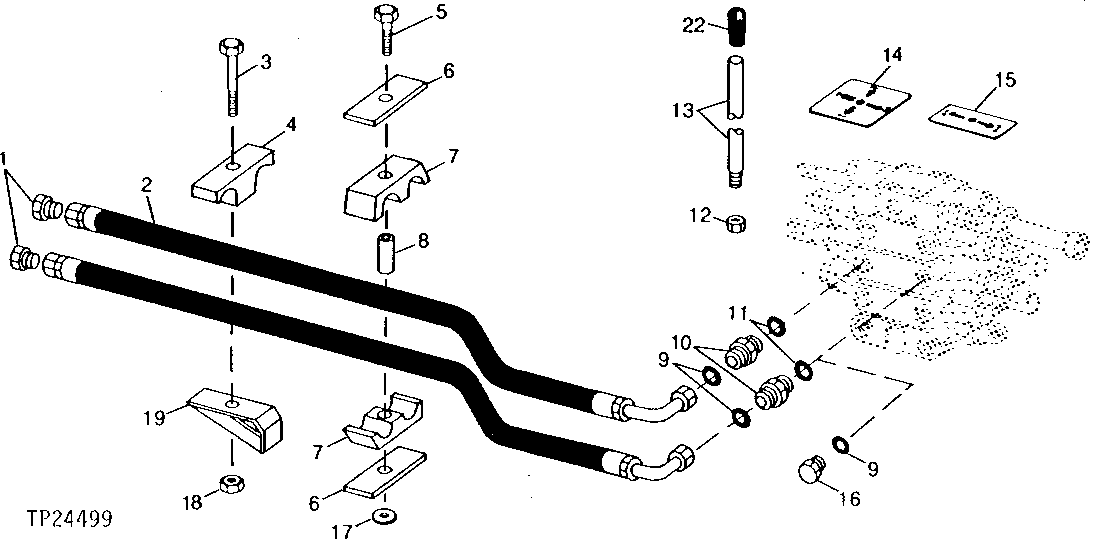

REAR MOUNTED EQUIPMENT (TWO AND THREE-SPOOL) [03J09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T76557	2	FITTING	-
2	AT80531	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 334 MM (52-1/2") X 13/16"
3	19H1726	1	Cap Screw	3/8" X 2-1/4"
4	T52978	1	Clamp	-
5	19H2333	1	Cap Screw	-
6	R41489	2	STRAP	-
7	T74260	2	Half Clamp	-
8	M65702	1	SPACER	-
9	T77857	4	O-Ring	-
10	38H1175	2	Adapter Fitting	-
11	U12547	2	O-Ring	-
12	14H821	1	Nut	5/8"
13	T120386	1	ROD	(SUB FOR T48087) (ALSO ORDER T37058)
14	T61266	1	LABEL	(USE WITH TWO-SPOOL VALVE)
15	T67454	1	LABEL	(USE WITH THREE-SPOOL VALVE)
16	38H1147	2	Fitting Plug	-
17	24H1821	1	Washer	9/32" X 47/64" X 1/16"
18	T11234	1	Lock Nut	-
19	AT48525	1	BRACKET	-
20	AT80532	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 461 MM (57-1/2") X 13/16"
21	-	1	Part 21	( AT80230 N0 L0NGER AVAILABLE) (INCLUDES ALL PARTS THIS PAGE)
22	T37058	1	GRIP	(SUB FOR AP17808, THIS APPLICATION)
22	-	1	Part 23	(TO HOLD GRIP ON AUXILIARY LEVER)

REAR MOUNTED EQUIPMENT (TWO AND THREE-SPOOL) [03J09]
