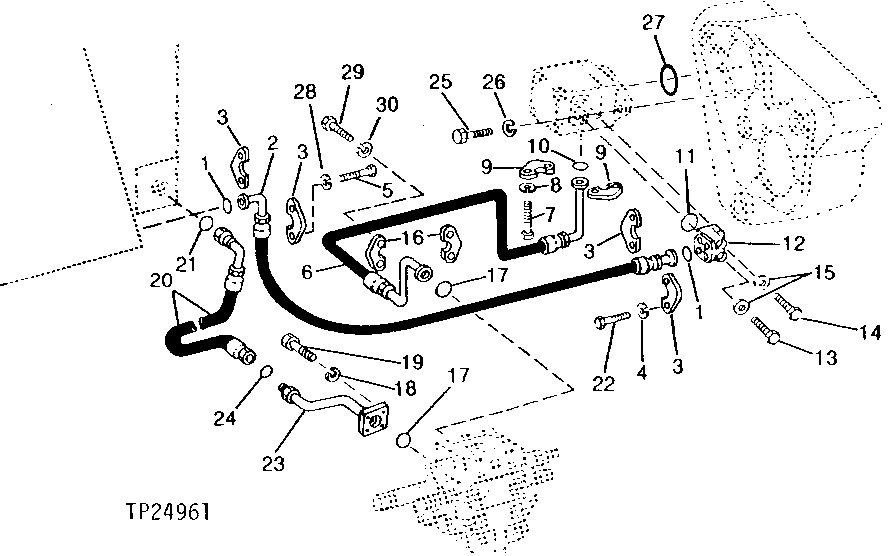

PUMP TO RESERVOIR AND CONTROL VALVE [03H23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F1870R	1	O-Ring	(SUB FOR T72892) (CHARGE SUCTION HOSE AT SUMP)
1	U12331	1	O-Ring	(SUB FOR T72893)
2	AT55434	1	HYDRAULIC HOSE	2-1/2" X 1 105 MM (43-1/2") X 2-1/2", (NOT AS ILLUSTRATED) (HOSE HAS 45 DEGREE FITTINGS ON BOTH ENDS)
3	X51H-40	4	Flange Fitting	(SUB FOR U44384)
4	12H301	4	Lock Washer	1/2"
5	19H2993	4	Cap Screw	1/2" X 1-1/2"
6	AT81071	1	HYDRAULIC HOSE	1" X 1 210 MM (47-3/4") X 1-1/4"
7	19H3239	4	Cap Screw	3/8" X 1-1/4"
8	12H304	4	Lock Washer	3/8"
9	R29867	2	Flange Fitting	-
10	U10289	1	O-Ring	(SUB FOR T72890)
11	F1870R	1	O-Ring	(SUB FOR T72892)
12	T46577	1	FITTING	-
13	19H3550	2	Cap Screw	1/2" X 4"
14	19H1820	2	Cap Screw	1/2" X 3"
15	12H301	4	Lock Washer	1/2"
16	H61354	2	Flange Fitting	-
17	U12037	2	O-Ring	(SUB FOR T72889)
18	12H304	4	Lock Washer	3/8"
19	19H2815	2	Cap Screw	3/8" X 2-1/4", (REAR)
19	19H3239	2	Cap Screw	3/8" X 1-1/4", (FRONT)
20	AT81069	1	HYDRAULIC HOSE - FABRICATE	1-11/16" X 1 094 MM (43") X 2"
21	T78784	1	O-Ring	-
22	19H2993	4	Cap Screw	1/2" X 1-1/2"
23	AT83826	1	OIL LINE	-
24	T78612	1	O-Ring	-
25	19H2710	2	Cap Screw	5/8" X 1-3/4"
26	12H294	2	Lock Washer	5/8"
27	T76054	1	O-Ring	-
28	12H304	4	Lock Washer	3/8"
29	19H3239	4	Cap Screw	3/8" X 1-1/4"
30	12H304	4	Lock Washer	3/8"

PUMP TO RESERVOIR AND CONTROL VALVE [03H23]
