PLATFORM (WITHOUT CAB) [03B11]

PLATFORM (WITHOUT CAB) [03B11]

PLATFORM (WITHOUT CAB) [03B11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

PLATFORM (WITHOUT CAB) [03B11]

Нет текстового описания

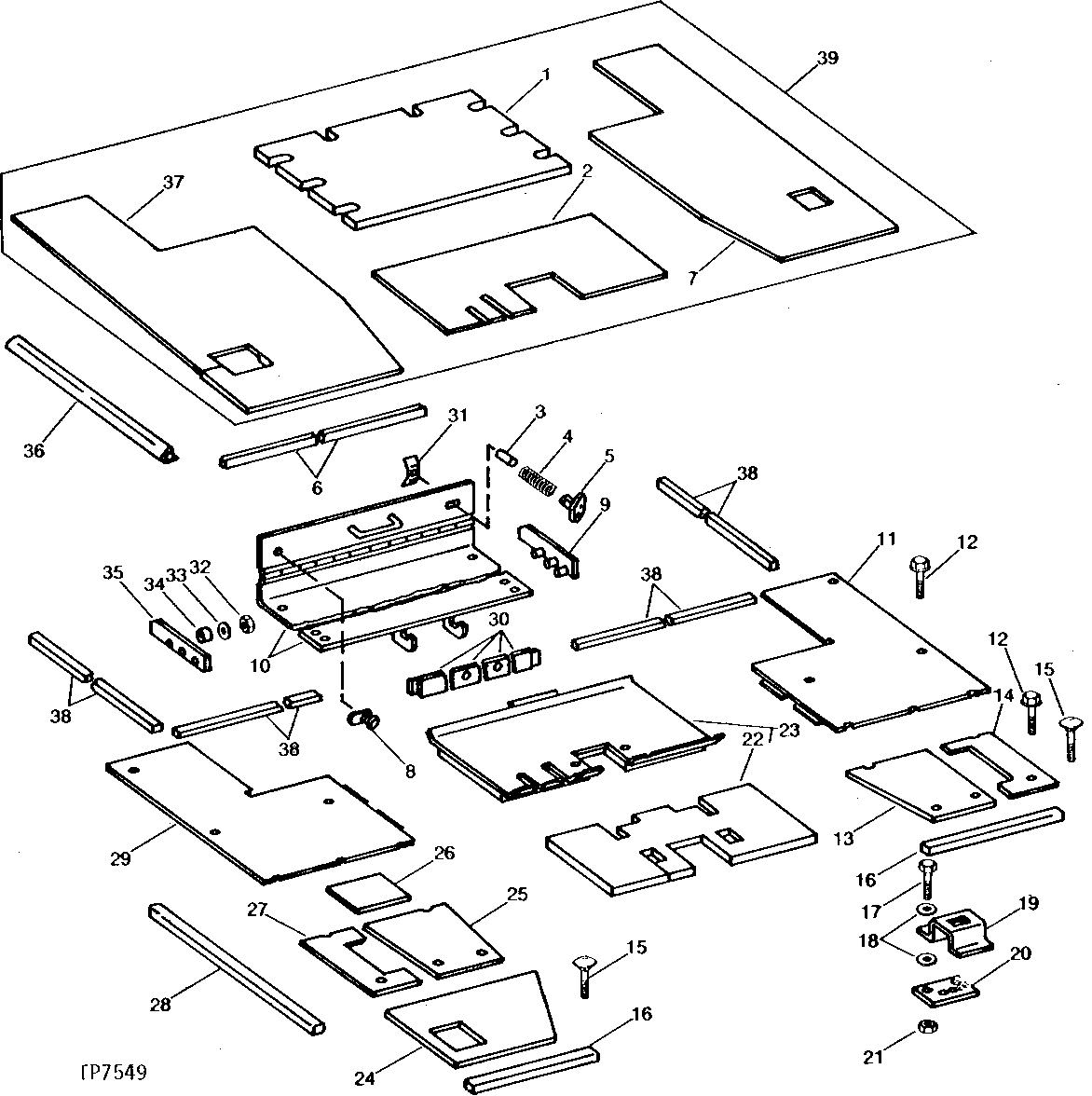

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T112099	1	MAT	CENTER
2	T75827	1	MAT	FRONT
2	T106875	1	MAT	-
3	34H266	1	Spring Pin	5/32" X 1"
4	T14057	1	SPRING	-
5	T31501	1	KNOB	-
6	-	1	Part 7	(MAKE FROM T58056, CUT TO LENGTH)
7	T75830	1	MAT	LEFT
8	AT42056	1	Lock	-
9	AT73547	1	STRIP	LEFT
9	AT113128	1	STRIP	(SUB FOR AT105073)
10	AT73544	1	DOOR	-
10	AT105069	1	DOOR	-
11	AT73930	1	PLATFORM	OUTER LEFT
12	19H2676	22	Cap Screw	3/8" X 1"
12	24H1308	2	Washer	13/32" X 1" X 0.134", FOOTREST TO CENTER FRAME
12	24H1308	22	Washer	13/32" X 1" X 0.134", (SUB FOR T21242, THIS APPLICATION)
12	19H2284	2	Cap Screw	FOOTREST TO CENTER FRAME
13	AT51471	1	PLATFORM	FRONT INNER, LEFT
14	AT51473	1	PLATFORM	FRONT OUTER, LEFT
15	37H51	2	Screw	1/4" X 1/2"
16	T60906	2	RETAINER	-
17	19H2849	2	Cap Screw	5/16" X 1-3/4"
18	24H1292	4	Washer	11/32" X 3/4" X 0.120"
19	T126073	1	COVER	(SUB FOR AT105105) (WITHOUT CAB)
19	AT51478	1	COVER	(USE WITH LEVER STEERING)
19	AT51474	1	COVER	(USE WITH PEDAL STEERING)
20	T52511	1	GROMMET	-
21	14H785	2	Nut	5/16"
22	T75832	1	ISOLATOR	-
22	T112434	2	ISOLATOR	(NOT ILLUSTRATED) (SUB FOR T106781)
23	AT73932	1	FOOTREST	(SUB FOR AT73931) TOEBOARD
23	AT113197	1	FOOTREST	(SUB FOR AT105118 AND AT113265)
24	-	2	Part 34	FRONT FENDER (T53626 NO LONGER AVAILABLE)
25	AT51470	1	PLATFORM	FRONT INNER, RIGHT
26	T57258	2	GUSSET	(USE WITHOUT ROPS)
27	AT51472	1	PLATFORM	FRONT OUTER, RIGHT
28	-	1	Part 38	(MAKE FROM AT56771 BULK MATERIAL, CUT TO LENGTH) (LAYS ON TOP OF STRIP WELDED TO FENDER TO SEAL OPENING BETWEEN FENDERS AND PLATFORM)
29	AT73929	1	PLATFORM	OUTER RIGHT
30	AT73548	1	STRIP	FRONT
31	T47585	1	CLAMP	-
32	14H1076	8	Nut	3/8"
33	24M7233	8	WASHER	10.700 X 21 X 2.500 MM
34	28H1878	8	SPACER	3/8" X 3/8"
35	AT73546	1	STRIP	RIGHT
35	AT113127	1	STRIP	(SUB FOR AT105072)
36	T56062	2	RETAINER	-
37	T75828	1	MAT	RIGHT
38	-	1	Part 49	(MAKE FROM T63949 BULK MATERIAL, CUT TO LENGTH)
39	-	1	Part 50	(SUB T112099, T75827, T75828 AND T75830) (AT73941 NO LONGER AVAILABLE)
