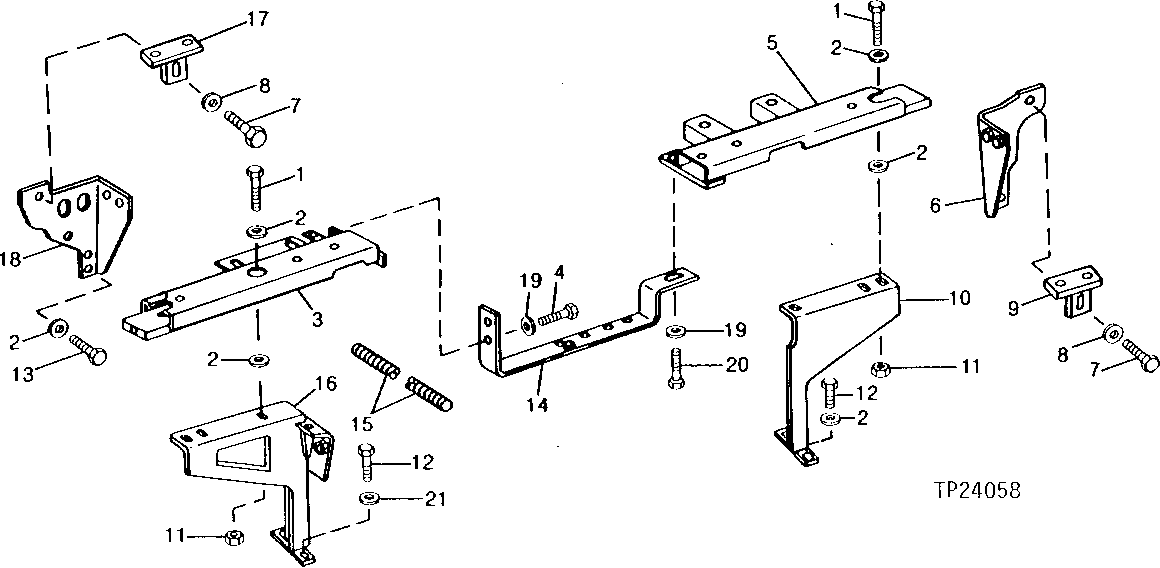

PLATFORM SUPPORTS (WITHOUT CAB AND WITHOUT ROPS) [03B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2644	6	Cap Screw	1/2" X 2-1/2"
2	24H1111	14	Washer	17/32" X 1-1/16" X 0.090"
3	AT81062	1	SUPPORT	R.H.
4	19H3472	2	Cap Screw	5/8" X 9-3/4"
5	AT72112	1	SUPPORT	L.H.
6	AT82941	1	SUPPORT	L.H.
7	19H2716	2	Cap Screw	3/4" X 1-1/2"
8	T10510	2	Washer	(USE IF AVAILABLE)
8	R78019	2	Washer	(SUB FOR T10510)
9	AT120533	1	BRACKET	L.H. (SUB FOR AT82943)
10	AT81061	1	SUPPORT	L.H.
11	14H1040	3	Nut	1/2"
12	19H2473	4	Cap Screw	HS, SAE 8, 1/2" X 1 3/4" (RIGHT AND LEFT PLATFORM SUPPORT TO FRAME)
13	19H2898	4	Cap Screw	1/2" X 1-1/4"
13	19H2898	4	Cap Screw	1/2" X 1-1/4"
14	AT80972	1	SUPPORT	-
15	-	1	Part 17	(MAKE FROM T72117 BULK MATERIAL, CUT TO LENGTH)
16	AT81059	1	SUPPORT	R.H.
17	AT120533	1	BRACKET	R.H. (SUB FOR AT82942 AND AT82936)
18	AT82940	1	SUPPORT	R.H.
19	24H1111	3	Washer	17/32" X 1-1/16" X 0.090"
20	19H1815	1	Cap Screw	1/2" X 1-1/4"
21	T33177	4	WASHER	(RIGHT AND LEFT PLATFORM SUPPORTS TO FRAME SCREWS)

PLATFORM SUPPORTS (WITHOUT CAB AND WITHOUT ROPS) [03B10]
