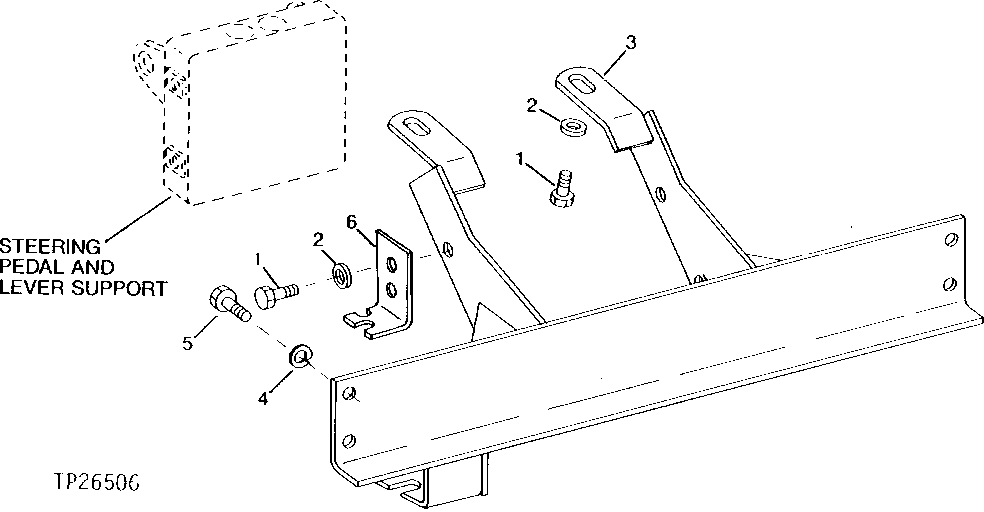

PEDAL AND LEVER SUPPORT BRACKETS (WITHOUT CAB) [01D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2676	6	Cap Screw	3/8" X 1"
1	19H2676	2	Cap Screw	3/8" X 1", (STEERING SUPPORT TO COWL)
1	19H3239	4	Cap Screw	HS, SAE 8, 3/8" X 1", (2-BRAKE CABLE SUPPORT, STEERING SUPPORT TO STEERING SUPPORT CASTING) (2-STEERING SUPPORT TO STEERING SUPPORT CASTING)
2	R57696	6	Washer	-
2	R57696	6	Washer	(2-STEERING SUPPORT TO COWL)(4-STEERING SUPPORT TO BRACKET)
3	AT52210	1	SUPPORT	(PEDAL STEERING)
3	AT52209	1	SUPPORT	(LEVER STEERING)
3	AT105091	1	SUPPORT	-
4	24M7240	4	Washer	13 X 25 X 3 MM, (STEERING SUPPORT TO CENTER FRAME)
5	19H3472	4	Cap Screw	5/8" X 9-3/4"
5	19H2472	4	Cap Screw	HS, SAE 8, 1/2" X 1" (STEERING SUPPORT TO CENTER FRAME)
6	AT105063	1	SUPPORT	-

PEDAL AND LEVER SUPPORT BRACKETS (WITHOUT CAB) [01D07]
