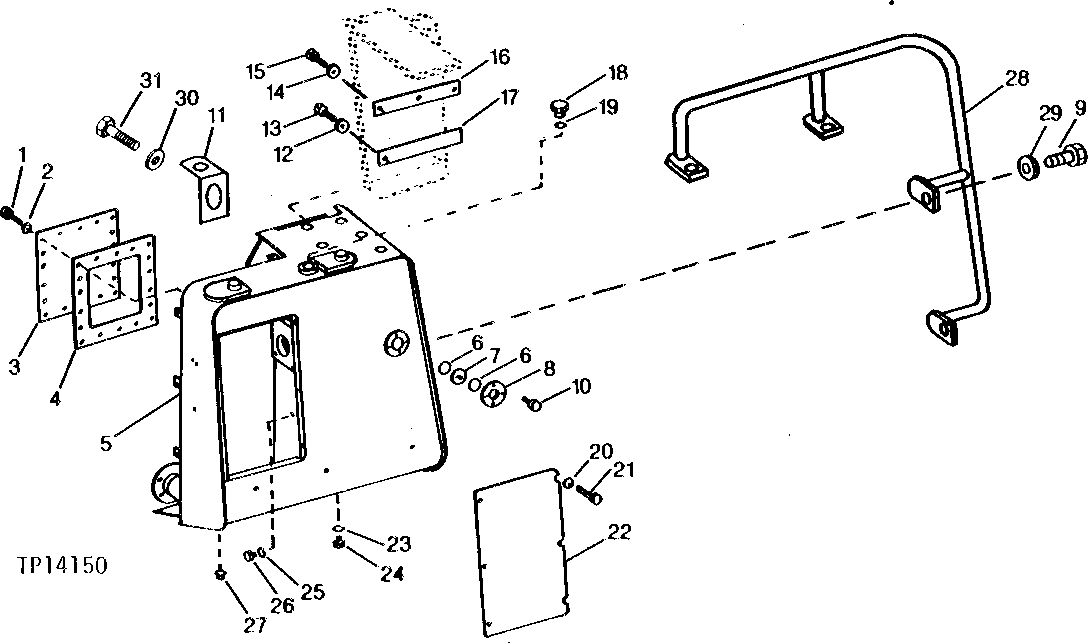

HYDRAULIC SUMP (LOW GROUND PRESSURE TRACK) [03I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	18	Cap Screw	3/8" X 3/4"
2	12H304	18	Lock Washer	3/8"
3	T36092	1	COVER	-
4	PM38655	1	Sealant	(SUB FOR T43514)
5	AT80552	1	RESERVOIR	-
5	AT85814	1	HYDRAULIC RESERVOIR	-
6	U10289	2	O-Ring	(SUB FOR T72890)
7	U13425	1	WINDOWPANE	-
7	U13552	1	WASHER	-
8	U13551	1	WASHER	-
9	19H2472	4	Cap Screw	HS, SAE 8, 1/2" X 1"
9	19H2898	4	Cap Screw	1/2" X 1-1/4"
10	21H1300	4	SCREW	0.190" X 3/8"
11	AT77764	4	ANGLE	-
12	24M7240	3	Washer	13 X 25 X 3 MM
13	19H1004	3	CAP SCREW	1/2" X 2-1/4"
14	T10510	3	Washer	(USE IF AVAILABLE)
14	R78019	3	Washer	(SUB FOR T10510)
15	19H2431	3	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
16	T128140	1	STRAP	(SUB FOR T56329, T74725 AND T74726) 0.91 MM (.036")
17	T128139	1	STRAP	(SUB FOR T56330, T74727 AND T74728) 0.91 MM (.036")
18	T54099	1	Fitting	-
19	U13639	1	O-Ring	-
20	24H1308	4	Washer	13/32" X 1" X 0.134"
21	19H2284	4	Cap Screw	3/8" X 7/8"
22	T47489	1	COVER	-
23	U12547	1	O-Ring	(SUB FOR F3171R)
24	R27175	1	Drain Plug	-
25	R26286	1	O-Ring	-
26	R27094	1	Drain Plug	-
27	37H57	1	Screw	5/16" X 3/4"
28	AT70568	1	HANDRAIL	-
28	AT84809	1	HANDRAIL	(ALSO USED ON HYDROSTATIC TANK)
29	12H301	4	Lock Washer	1/2"
29	24M7240	4	Washer	13 X 25 X 3 MM
30	24M7101	4	Washer	11 X 34 X 3 MM
31	19H2676	4	Cap Screw	3/8" X 1"

HYDRAULIC SUMP (LOW GROUND PRESSURE TRACK) [03I01]
