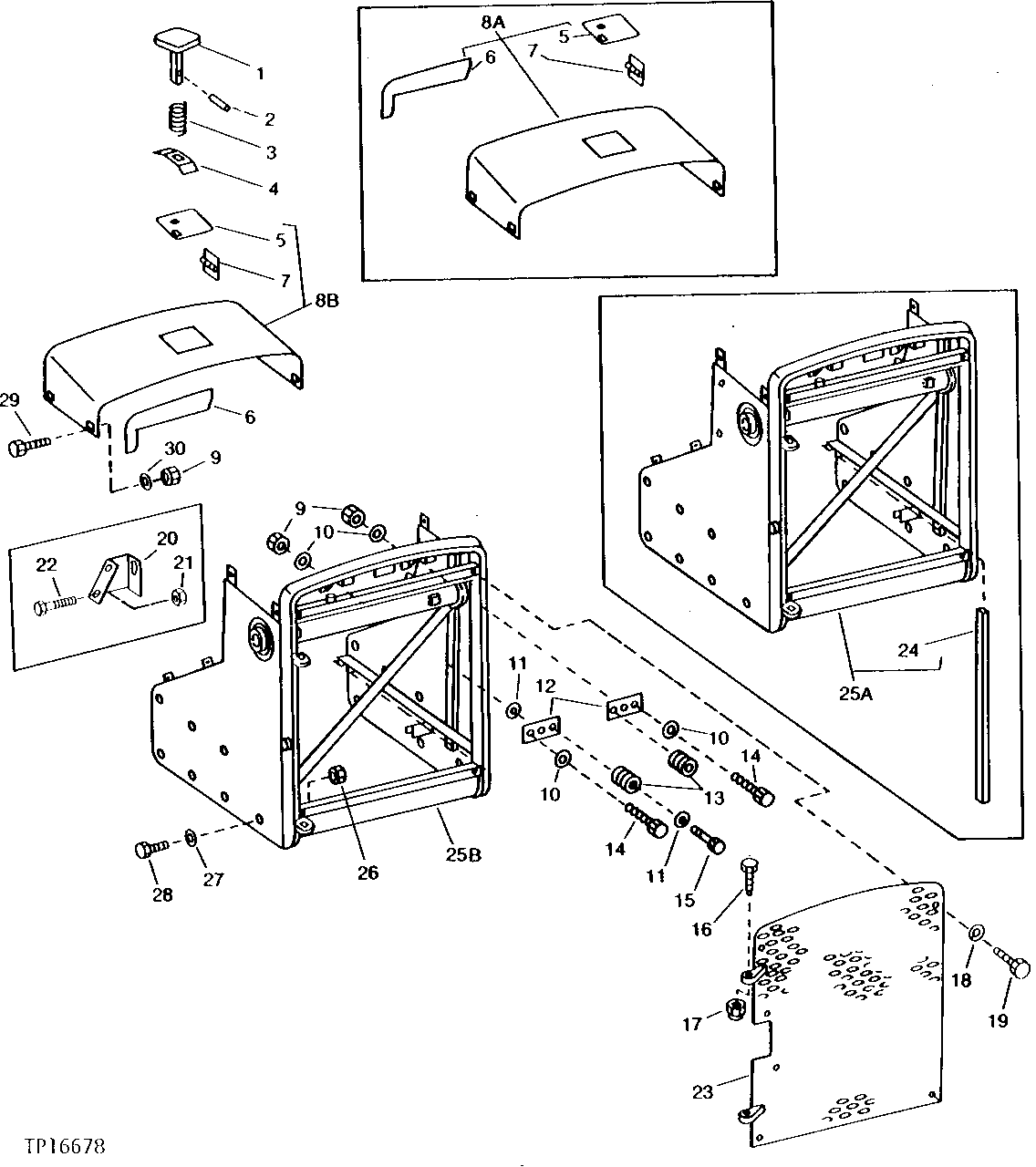

GRILLE AND GRILLE HOUSING (LOW GROUND PRESSURE TRACK) [03E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T31501	1	KNOB	-
2	34H266	1	Spring Pin	5/32" X 1"
3	T14057	1	SPRING	-
4	T47585	1	CLAMP	-
5	T47584	1	DOOR	-
6	T51675	1	BARRIER	R.H.
6	T51676	1	BARRIER	L.H. (NOT ILLUSTRATED)
7	AT39757	1	HINGE	-
9	14H1040	10	Nut	1/2"
10	24M7240	8	Washer	13 X 25 X 3 MM
11	T62323	4	Washer	-
12	T56961	2	STRAP	-
13	AT169186	2	Isolator	(SUB FOR AT59650)
14	19H2993	4	Cap Screw	1/2" X 1-1/2"
15	19H3109	2	Cap Screw	HS, SAE 8, 1/2" X 2-7/8"
16	19H2600	2	Cap Screw	3/4" X 2-5/8"
17	T25879	2	Nut	-
18	R73290	4	Washer	-
19	19H2994	4	Cap Screw	HS, SAE 8, 5/8" X 1-1/2"
20	T79954	2	ANGLE	-
21	U13184	4	Lock Nut	-
22	19H2284	4	Cap Screw	3/8" X 7/8"
23	AT70331	1	GRILLE	-
23	AT66989	1	GRILLE	HEAVY DUTY, (SUB AT142576)
23	AT142576	1	GRILLE	(SUB FOR AT113579)
24	T51671	2	ISOLATOR	-
26	14H1051	18	NUT	7/8"
27	A11667	18	Washer	(SUB FOR A5542R)
28	19H2702	18	Cap Screw	HS, SAE 8, 7/8" X 5"
29	09H1588	4	Bolt	1/2" X 1-3/4", (USE WITH AT82601)
29	03H1731	4	Bolt	1/2" X 1-1/2", (USE WITH AT63228)
30	T29342	4	Washer	(SUB FOR T21228, THIS APPLICATION)
8A	AT63228	1	COVER	(SUB AT82601, T51675, T51676 AND (4) 09H1588)
8B	AT82601	1	HOUSING	(ALSO ORDER T51675 AND T51676)
25A	AT70333	1	HOUSING	(SUB AT116593)
25B	AT116593	1	HOUSING	(CONVENIENCE ASSEMBLY)
25B	AT84647	1	HOUSING	(SUB AT116593)

GRILLE AND GRILLE HOUSING (LOW GROUND PRESSURE TRACK) [03E18]
