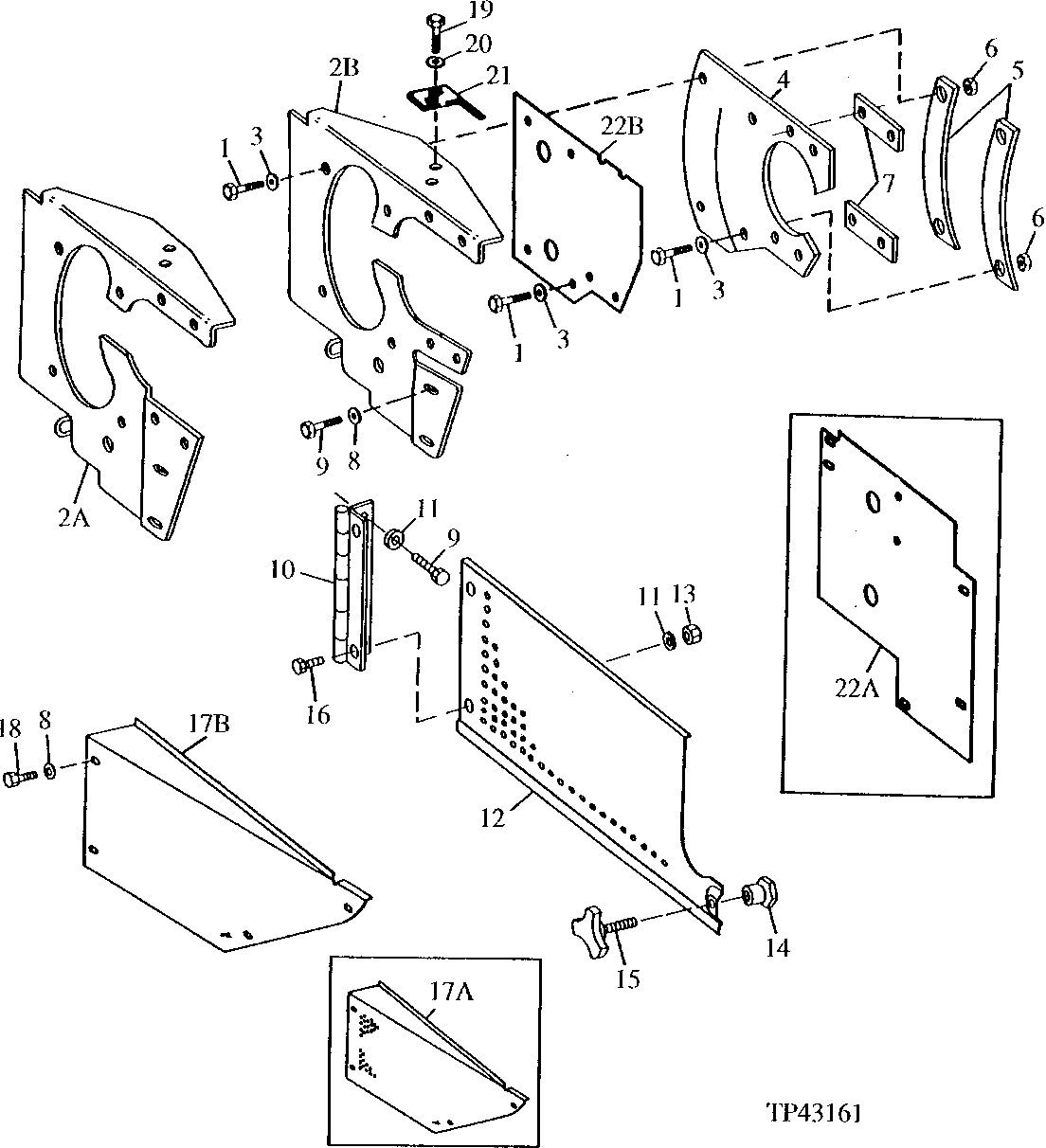

ENGINE SIDE SHIELDS (RIGHT SIDE ILLUSTRATED) [03E09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2284	8	Cap Screw	3/8" X 7/8"
3	24M7233	1	WASHER	10.700 X 21 X 2.500 MM
3	24M7233	8	WASHER	10.700 X 21 X 2.500 MM
4	T78695	1	ISOLATOR	(USE WITH STANDARD TRACK)
5	T78697	2	STRAP	(USE WITH STANDARD TRACK)
6	T11234	8	Lock Nut	-
7	T78696	2	STRAP	(USE WITH STANDARD TRACK)
8	24H1308	6	Washer	13/32" X 1" X 0.134"
9	19H2284	4	Cap Screw	3/8" X 7/8"
10	AT78264	1	HINGE	-
11	24M7296	4	Washer	10.500 X 30 X 2.500 MM
12	T78689	1	SHIELD	R.H.
12	T78690	1	SHIELD	L.H. (NOT ILLUSTRATED)
13	14H1076	2	Nut	3/8"
14	T38192	1	NUT	-
15	AT61548	1	RETAINER	(SUB FOR AT36828)
16	03H1765	2	Bolt	3/8" X 3/4"
18	19H2676	4	Cap Screw	3/8" X 1"
19	19H2676	2	Cap Screw	3/8" X 1"
20	24M7233	2	WASHER	(SUB FOR R42729, THIS APPLICATION)
21	T82481	1	ANGLE	R.H.
21	T82482	1	ANGLE	L.H. (NOT ILLUSTRATED)
2A	AT78261	1	BRACKET	R.H.
2A	AT78262	1	BRACKET	L.H. (NOT ILLUSTRATED)
2B	AT84646	1	GUARD	L.H. (NOT ILLUSTRATED)
2B	AT84645	1	GUARD	R.H.
17A	T78694	1	SHIELD	L.H. (NOT ILLUSTRATED) (ENGINE)
17A	T78693	1	SHIELD	R.H. (ENGINE)
17B	T150344	1	SHIELD	(ENGINE RIGHT)
17B	T150345	1	SHIELD	(ENGINE LEFT)
22A	T79953	1	PLATE	(USE WITH LONG AND LOW GROUND PRESSURE TRACK)
22B	T82483	1	PLATE	(USE WITH LONG AND LOW GROUND PRESSURE TRACK)
22B	T145685	1	PLATE	-

ENGINE SIDE SHIELDS (RIGHT SIDE ILLUSTRATED) [03E09]
