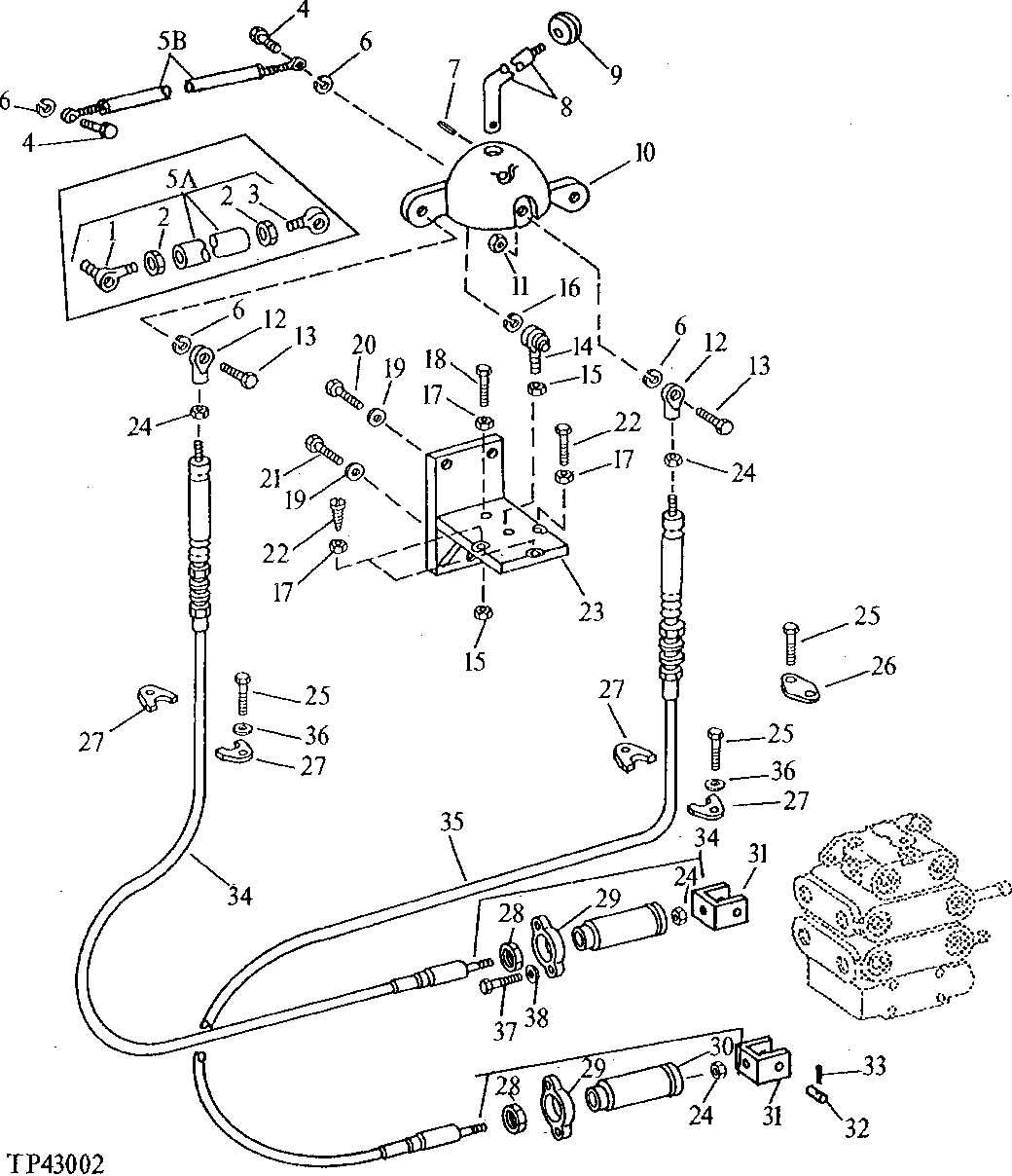

DOZER CONTROL LINKAGE (TWO-SPOOL VALVE) [03G11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT46597	1	Ball Joint	-
2	14H882	2	Nut	5/16"
3	AT46594	1	LINK END	-
4	19H2477	1	CAP SCREW	5/16" X 1-1/4"
6	12H303	3	Lock Washer	5/16", (2-BETWEEN CABLE END BALLJOINTS AND CAST BALL (1-CAST BALL AUXILIARY LEVER)
7	25H524	1	GROOVE PIN	3/16" X 1-1/4"
8	T72553	1	LEVER	-
9	AP17808	1	Knob	-
10	T119998	1	BASE	(SUB FOR T59368)
11	R11151	1	Lock Nut	-
12	AT81077	2	LINK END	-
12	R56397	1	Washer	(BETWEEN CABLE END BALLJOINT AND INNER TAPPED HOLE IN CAST BALL)
13	19H2477	2	CAP SCREW	5/16" X 1-1/4"
14	AT75688	1	BALL JOINT	-
15	14H866	2	Nut	5/8"
16	12H294	1	Lock Washer	5/8", (BASE CONTROL LEVER ROD END BALLJOINT)
17	14H1076	4	Nut	3/8"
18	19H3239	1	Cap Screw	HS, SAE 8, 3/8" X 1-1/4"
19	12H304	3	Lock Washer	3/8"
20	19H1648	2	Cap Screw	HS, SAE 8, 3/8" X 3/4"
21	19H1648	1	Cap Screw	HS, SAE 8, 3/8" X 3/4"
22	19H2791	3	Cap Screw	3/8" X 1-3/4", (INTO FRONT, REAR, AND OUTER TAPPED HOLES OF LEVER BASE BRACKET TO POSITION CONTROL LEVER IN CENTER OF CONSOLE HOLE OPENING)
23	AT117811	1	BRACKET	(SUB FOR AT81086)
24	14H649	4	Nut	1/4"
25	19H3467	6	Screw	5/16" X 1"
26	T58695	1	PLATE	-
27	T82272	4	PLATE	-
28	14H904	2	Nut	3/4"
29	T80559	2	FLANGE	-
30	T81032	2	SLEEVE	-
31	T80557	2	CLEVIS	-
32	T80558	2	PIN FASTENER	-
33	11M7077	2	Cotter Pin	1.600 X 25 MM
34	AT150916	1	CABLE	(SUB FOR AT81076) (LIFT FUNCTION) (WITH CAB)
34	AT150915	1	CABLE	(LIFT FUNCTION) (WITHOUT CAB) (SUB FOR AT81075)
35	AT150916	1	CABLE	(TILT FUNCTION) (WITHOUT CAB) (SUB FOR AT81076)
35	AT150917	1	CABLE	(TILT FUNCTION) (WITH CAB) (SUB FOR AT81079)
36	24H1685	4	Washer	11/32" X 47/64" X 0.083"
37	19H2992	4	Screw	1/4" X 1-1/4", SOCKET HEAD
38	24H1287	4	Washer	9/32" X 5/8" X 0.065", (SUB FOR T31185)
5A	-	1	Part 5	(SUB AT151186) (ALSO ORDER (2) 19H2477 AND (2) 12H303)
5B	AT151186	1	TIE ROD ASSEMBLY	(SUB FOR AT57035, AT53800 AND AT143034) (ALSO ORDER (2) 19H2477 AND (2) 12H303)
